YOUR ANGÉNIEUX DREAM
WITHIN REACH

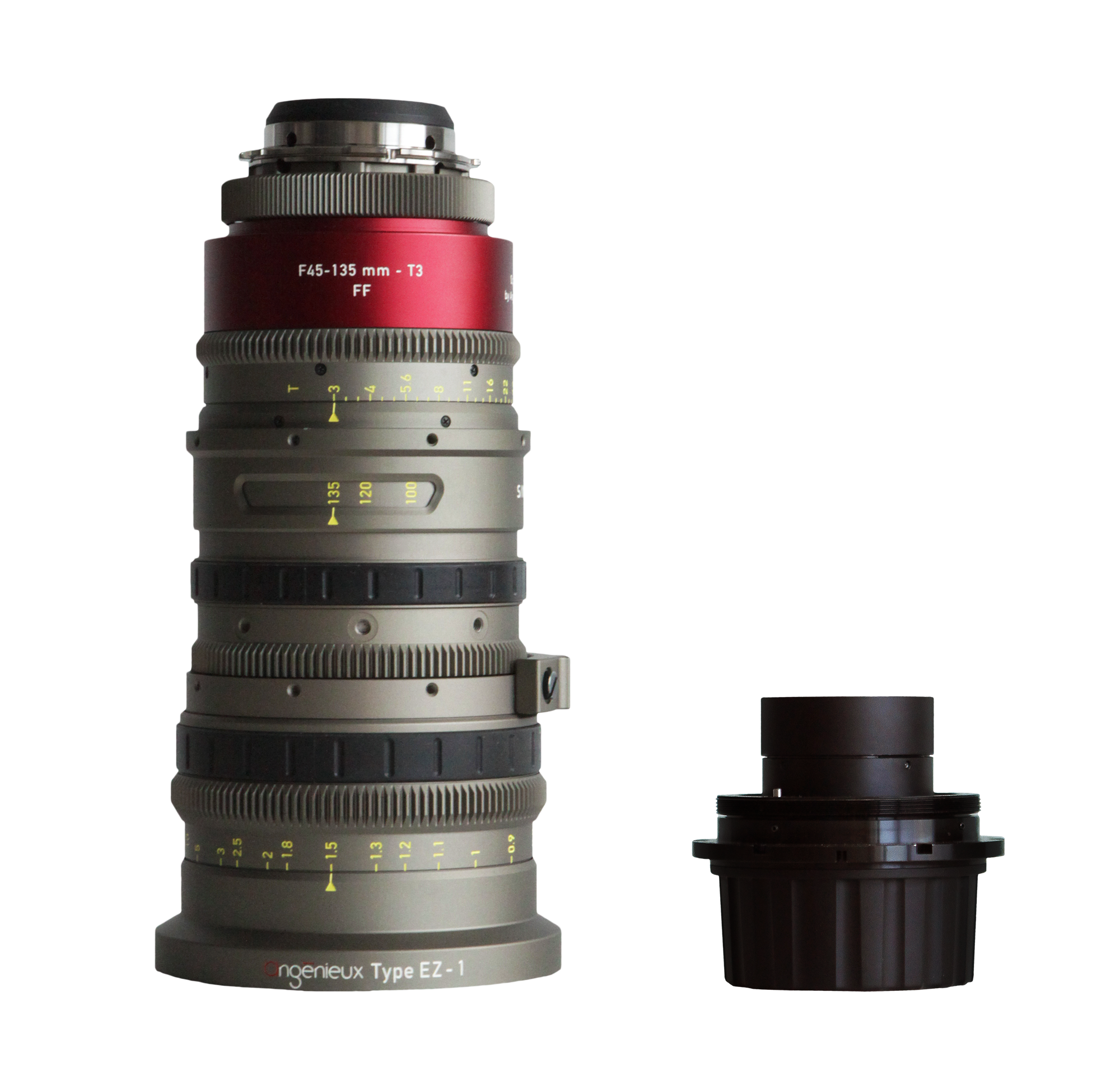

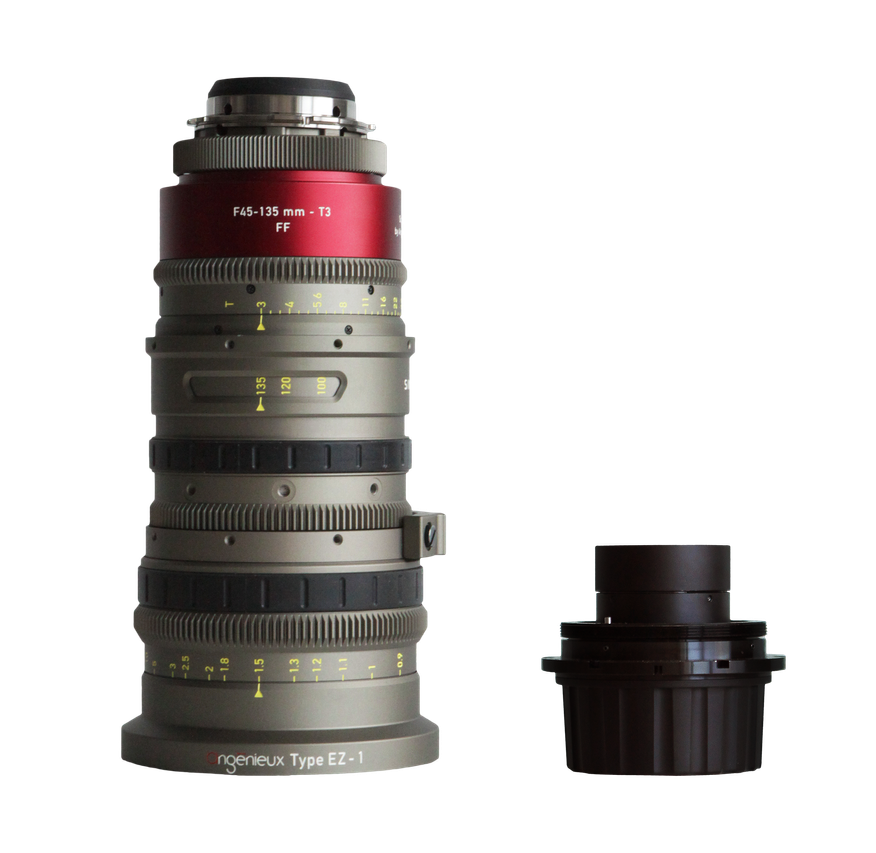

Created to fill the wide gap between basic still photography zooms, and the highly acclaimed Optimo, Optimo Style family of lenses used in the motion pictures industry, the Angénieux EZ series features three light weight zooms : the EZ-1, EZ-2 and the brand new EZ-3. Thanks to an innovative lens modular design (Interchangeable Rear Optics IRO Technology®), the EZ Series lenses allow the rear lens group to be exchanged between S35mm (up to 30mm image diagonal), and FF/VistaVision format (up to 46mm image diagonal).
For the first time, ENG-style productions will get the flexibility necessary for run-and-gun shooting, combined with an excellence of image quality at an affordable price. Users can also easily change between PL, RF, EF, E. Travel light with this set of versatile and futur proof lenses that work with multiple cameras.
MAIN FEATURES
AVAILABLE WITH TWO REAR OPTICAL BLOCKS (TYPE EZ-1 S35 PL + FF/VISTAVISION REAR, TYPE EZ-2 S35 PL + FF/VISTAVISION REAR AND TYPE EZ-3 S35 PL + FF/VISTAVISION REAR)
- For EZ 1 : 45-135 mm T3 / f2.8, image coverage 46,3 mm diagonal for FF/VV and 30-90 mm T2 / f1.9, image coverage 30,4 mm diagonal for S35
- For EZ 2 : 22-60 mm T3 / f2.8, image coverage 46,3 mm diagonal for FF/VV and 15-40 mm T2 / f1.9, image coverage 30,4 mm diagonal for S35
- For EZ 3 : 68 - 250 mm T3.5 / T4.5, image coverage 46,3 mm diagonal for FF/VV and 45 - 165 mm T2.3 / T3, image coverage 30,4 mm diagonal for S35
- New advanced IRO Technology® mechanism for EZ-3 Faster conversion between FF & S35
- Dual feet-meter scale focus ring (easy conversion with standard screwdriver, no collimator)
- Lightweight
- Extremely fast aperture across the range with no ramping, (except on EZ-3)
- Extremely wide coverage with minimal distortion
- Internal focusing & zooming, lens size remains constant throughout zooming & focusing range
- Nice cinematic look that matches with Optimo Series
- Short MOD 0.6m / 2 feet for EZ-1 & EZ-2, 1.2m / 4 feet for EZ-3
- In-lens thermal compensation, significantly reduces temperature drift
- Precise and ergonomic focus ring with scale rotation of 300 degrees
- Luminescent FTZ markings, easy reading in dark
- Available with PL lens mount, easy conversion to RF, EF or E mount by users
- Front diameter 114mm, matte boxes compatible with those used on Optimo Series compact zooms
- Detachable ENG style zoom grip available from MOVCAM
SPECIFICATIONS
| Type | EZ-1 | EZ-1 | EZ-2 | EZ-2 | EZ-3 | EZ-3 |
| Standard | Standard | Wide Angle | Wide Angle | Tele | Tele | |
| Image Format Coverage | FF/VV | S35 | FF/VV | S35 | FF/VV | S35 |
| Zoom Ratio | 3x | 3x | 2.7x | 2.7x | 3.7x | 3.7x |
| Focal Length | 45 - 135 mm | 30 - 90 mm | 22 - 60 mm | 15 - 40 mm | 68 - 250 mm | 45 - 165 mm |
| Aperture | f/2.8 - T3.0 | f/1.9 - T2.0 | f/2.8 - T3.0 | f/1.9 - T2.0 | T3.5 / T4.5 | T2.3 / T3 |
| Minimum Object Distance | 0.6 m - 2 ft | 0.6 m - 2 ft | 0.6 m - 2 ft | 0.6 m - 2 ft | 1.2m - 4 ft | 1.2m - 4 ft |
| Internal Focus | Yes | Yes | Yes | Yes | Yes | Yes |
| Image Circle Coverage | 46,3 mm | 30,4 mm | 46,3 mm | 30,4 mm | 46,3 mm | 30,4 mm |
| Reference Image Size | 37.7 x 24.9 mm | 24 x 13.5 mm | 37.7 x 24.9 mm | 24 x 13.5 mm | 37.7 x 24.9 mm | 24 x 13.5 mm |
| Horizontal Angular FOV | 45.6° - 15.9° | 43.6° - 15.2° | 80.2° - 35° | 77.6° - 33.7° | 31.1° - 8.6° | 30° - 8.4° |
| Vertical Angular FOV | 30.8° - 10.7° | 25.1° - 8.8° | 57.4° - 24° | 44.5° - 19.6° | 20.5° - 5.8° | 16.8° - 4.8° |
| FOV at MOD at focal min | 351 x 228 mm | 334 x 184 mm | 658 x 426 mm | 628 x 342 mm | 570 x 154 mm | 549 x 150 mm |
| FOV at MOD at focal max | 115 x 77 mm | 110 x 63 mm | 245 x 165 mm | 235 x 134 mm | 370 x 103 mm | 303 x 80 mm |
| Front Diameter | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm |
| Length | 226 mm | 226 mm | 210 mm | 210 mm | 265 mm | 265 mm |
| Weight | 4.5lb - 2.1kg | 4.7lb - 2.1kg | 4.6lb - 2.1kg | 4.7lb - 2.1kg | 5.7lb - 2.6kg | 5.7lb - 2.6kg |
