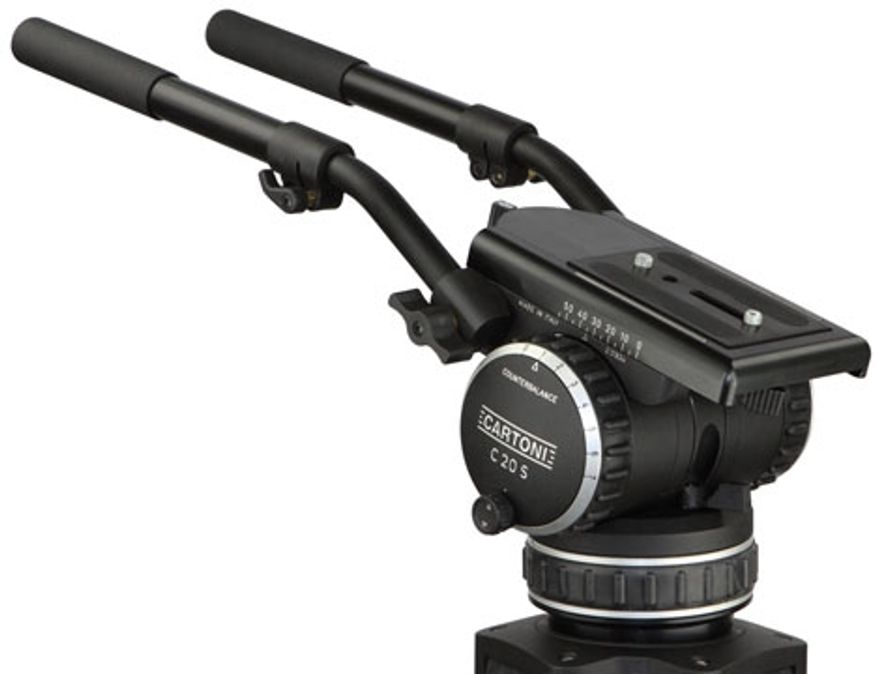

The C20S is designed to provide a particularly stable support for EFP configurations, ready to operate with a wide range of cameras weighing from 7 to 35 kg (15 to 77 lbs)
C20S features three award winning fluid damping modulesassuring outstanding drag levels and extraordinary smoothness in both pan and tilt modes.
Movements can be selected with 7 precisely repeatable steps of drag, while free wheeling is available by simply setting the drag selector ring into position “0”.
Counterbalance is activated by an easy grip selector in 7 progressive steps and “0” free wheeling.
The C20S comes with a 100 mm bowl base, illuminated spirit level and one telescopic pan bar.
Compatibility:
Interfaces with all 100 mm bowl base tripods.
AH869 adapter for Cartoni P20
AH863 adapter for Cartoni Pedestal P40 P70+, P70 Steering
AT854 converter for 150mm tripods
Weight - 6.5 kg / 14.33 lbs
Minimum Payload Capacity - 7 kg / 15.43 lbs
Maximum Payload Capacity - 35 kg / 77.16 lbs
Bowl Diameter - 100 mm
Fluid Drag - 7 steps + 0
Counterbalance - 7 steps + 0
Tilt Range - +/-65°
Operational temperature - -40°/+60° Celsius
