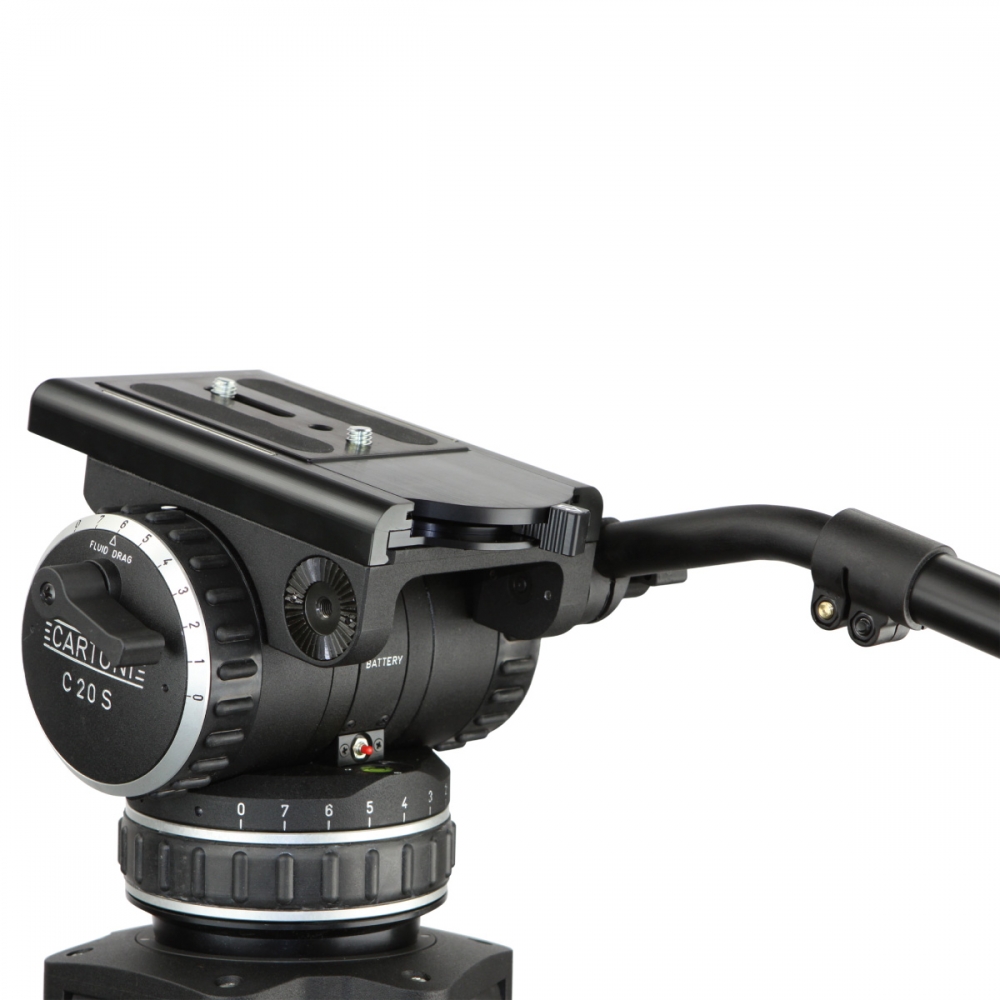

The C20S is designed to provide a particularly stable support for EFP configurations, ready to operate with a wide range of cameras weighing from 7 to 35 kg (15 to 77 lbs)
C20S features three award winning fluid damping modulesassuring outstanding drag levels and extraordinary smoothness in both pan and tilt modes.
Movements can be selected with 7 precisely repeatable steps of drag, while free wheeling is available by simply setting the drag selector ring into position “0”.
Counterbalance is activated by an easy grip selector in 7 progressive steps and “0” free wheeling.

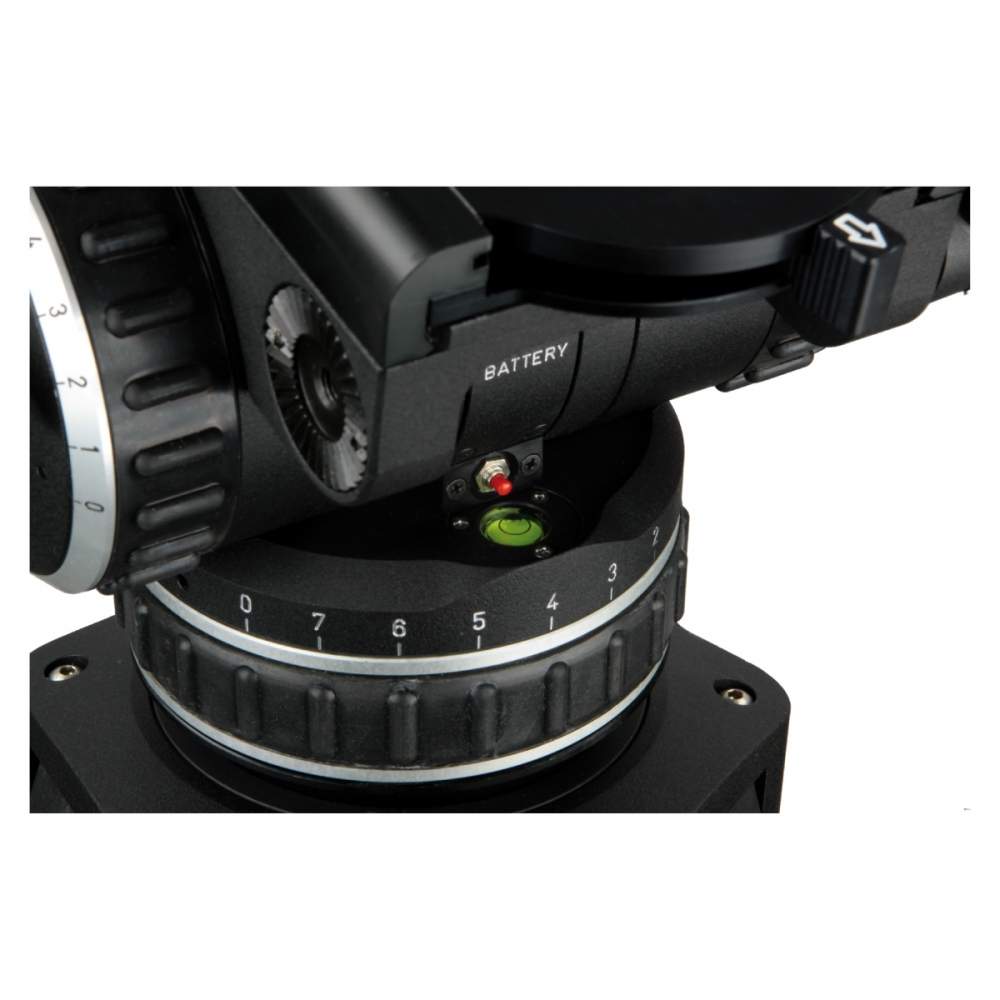

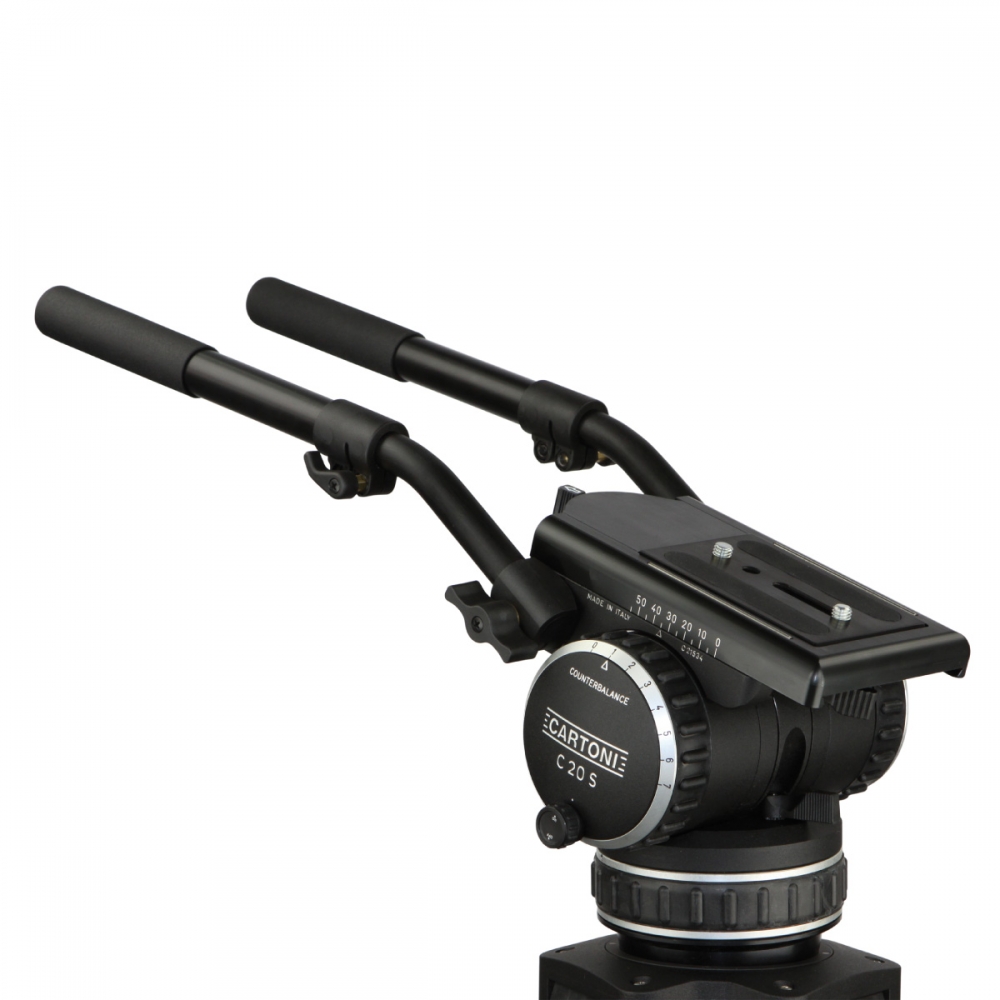

The C20S comes with a 150 mm bowl base, illuminated spirit level and one telescopic pan bar.
The 150mm base interfaces directly with all 150mm tripods and to Pedestals via the standard 4 bolts configuration.
The tie down shaft can be easily removed with 14mm wrench from the 3/8” thread to interface with many popular pedestals and sliders, ideal for rental houses and broadcast production environments that employ a variety of camera and support systems.
Compatibility:

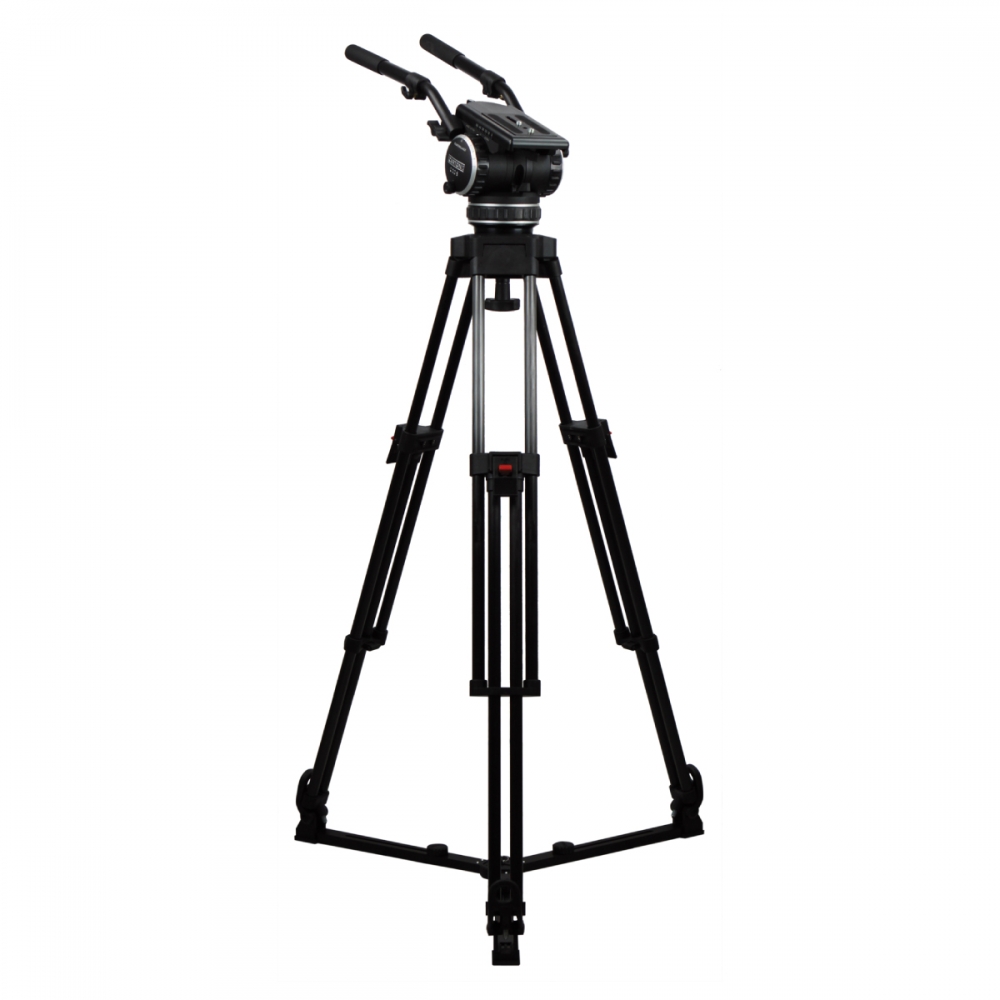

Interfaces with all 150 mm bowl base tripods.
AH869/150 adapter for Cartoni Pedestal P40 P70+, P70 Steering
Weight - 7.0 kg / 15.43 lbs
Minimum Payload Capacity - 7 kg / 15.43 lbs
Maximum Payload Capacity - 35 kg / 77.16 lbs
Bowl Diameter - 150 mm
Fluid Drag - 7 steps + 0
Counterbalance - 7 steps + 0
Tilt Range - +/-65°
Operational temperature - -40°/+60° Celsius
