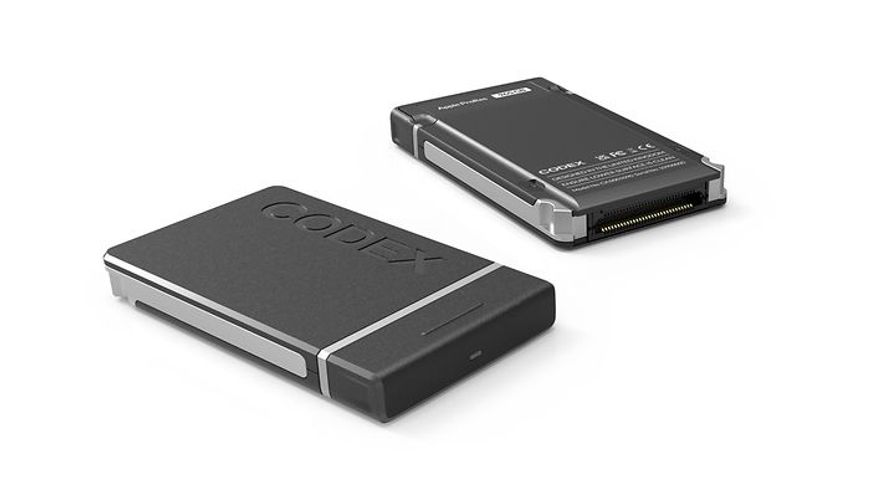

The CODEX Compact Drive Express 1TB was created exclusively to allow Apple ProRes recording on the ALEXA 35. The Drive offers 960 GB usable capacity and up to 8 Gbps ( ~950 MB/s) write speed, so you reach the same max fps for Apple ProRes recording as the regular 1TB Drive.
ALEXA 35 recording capacity at 24 fps
- approx. 1hr 20min UHD Apple ProRes 4444XQ
- approx. 2hrs UHD ProRes 4444.
Notes
- This drive is only supported in the ALEXA 35 and ALEXA 35 Live. It does not work in any other camera.
- The Compact Drive Express 1TB is marked with a white ring.
Technical Data
- CODEX Model No: CX.0001090
- Capacity: 960 GB usable space
- Memory Type: NVMe SSD
- Interface: PCIe Gen3
- Dimensions: 45 x 77 x 10mm
- Weight: 85 g
- Operating temperature: 0 to 70°C (32 to 158°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Transfer speed: up to 20 Gbps read, 8 Gbps write
- Insertion/removal durability: 10,000 actions
- Shock resistance: (1/2 sine pulse, 0.5ms) 1500G
- Vibration resistance: (7~800Hz) 3.08Grms

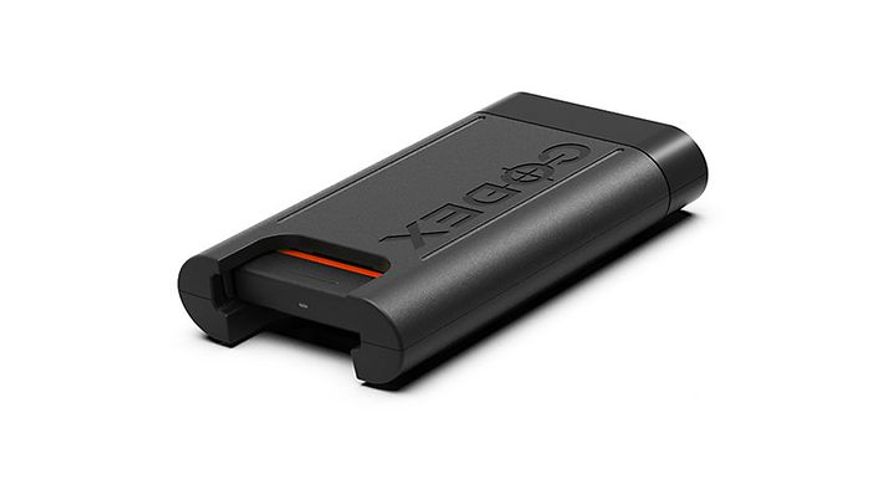

The CODEX Compact Drive Reader is a cost-effective, bus-powered, single-slot card reader/writer that can be used to access data stored on CODEX Compact Drives. The base of the reader contains a magnetic plate which allows you to securely stack readers on top of each other. The reader is bus-powered via USB-C connector (compatible with Thunderbolt 3), offering a USB 3.2 Gen 2 interface (backwards compatible), that will work on macOS and Windows.
Original camera files can be copied using your preferred data management application.
*Technical Data*
- Supported operating system: macOS 10.14.4 or higher / Windows 10
- Interface: USB-C
- Power: bus powered
- Dimensions: 72 x 123 x 25 mm
- Weight: 160 g
- Operating temperature: -5 to 40°C (25 - 104°F)
- Transfer speed: Up to 8 Gbps read
- Insertion/removal durability: 10,000 actions
- CODEX product code: CX.0001005
