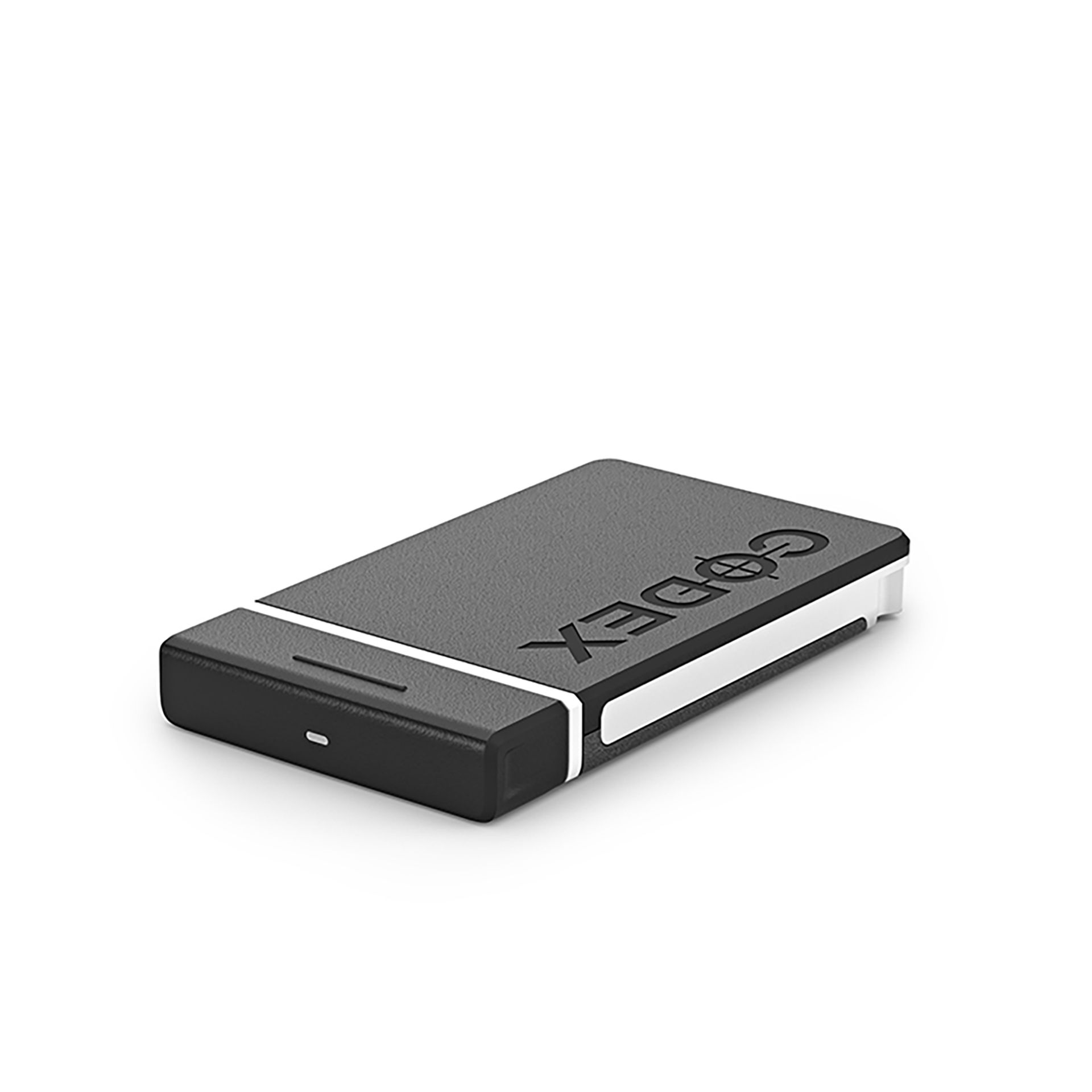

CODEX Compact Drive Express 1TB

Price



Created exclusively to allow Apple ProRes recording on the ALEXA 35
Read more



Manufacturer

Arri

The CODEX Compact Drive Express 1TB was created exclusively to allow Apple ProRes recording on the ALEXA 35. The Drive offers 960 GB usable capacity and up to 8 Gbps ( ~950 MB/s) write speed, so you reach the same max fps for Apple ProRes recording as the regular 1TB Drive.

ALEXA 35 recording capacity at 24 fps
- approx. 1hr 20min UHD Apple ProRes 4444XQ
- approx. 2hrs UHD ProRes 4444.

Notes
- This drive is only supported in the ALEXA 35 and ALEXA 35 Live. It does not work in any other camera.
- The Compact Drive Express 1TB is marked with a white ring.

Technical Data
- CODEX Model No: CX.0001090
- Capacity: 960 GB usable space
- Memory Type: NVMe SSD
- Interface: PCIe Gen3
- Dimensions: 45 x 77 x 10mm
- Weight: 85 g
- Operating temperature: 0 to 70°C (32 to 158°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Transfer speed: up to 20 Gbps read, 8 Gbps write
- Insertion/removal durability: 10,000 actions
- Shock resistance: (1/2 sine pulse, 0.5ms) 1500G
- Vibration resistance: (7~800Hz) 3.08Grms

- CODEX Model No: CX.0001090
- Capacity: 960 GB usable space
- Memory Type: NVMe SSD
- Interface: PCIe Gen3
- Dimensions: 45 x 77 x 10mm
- Weight: 85 g
- Operating temperature: 0 to 70°C (32 to 158°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Transfer speed: up to 20 Gbps read, 8 Gbps write
- Insertion/removal durability: 10,000 actions
- Shock resistance: (1/2 sine pulse, 0.5ms) 1500G
- Vibration resistance: (7~800Hz) 3.08Grms
