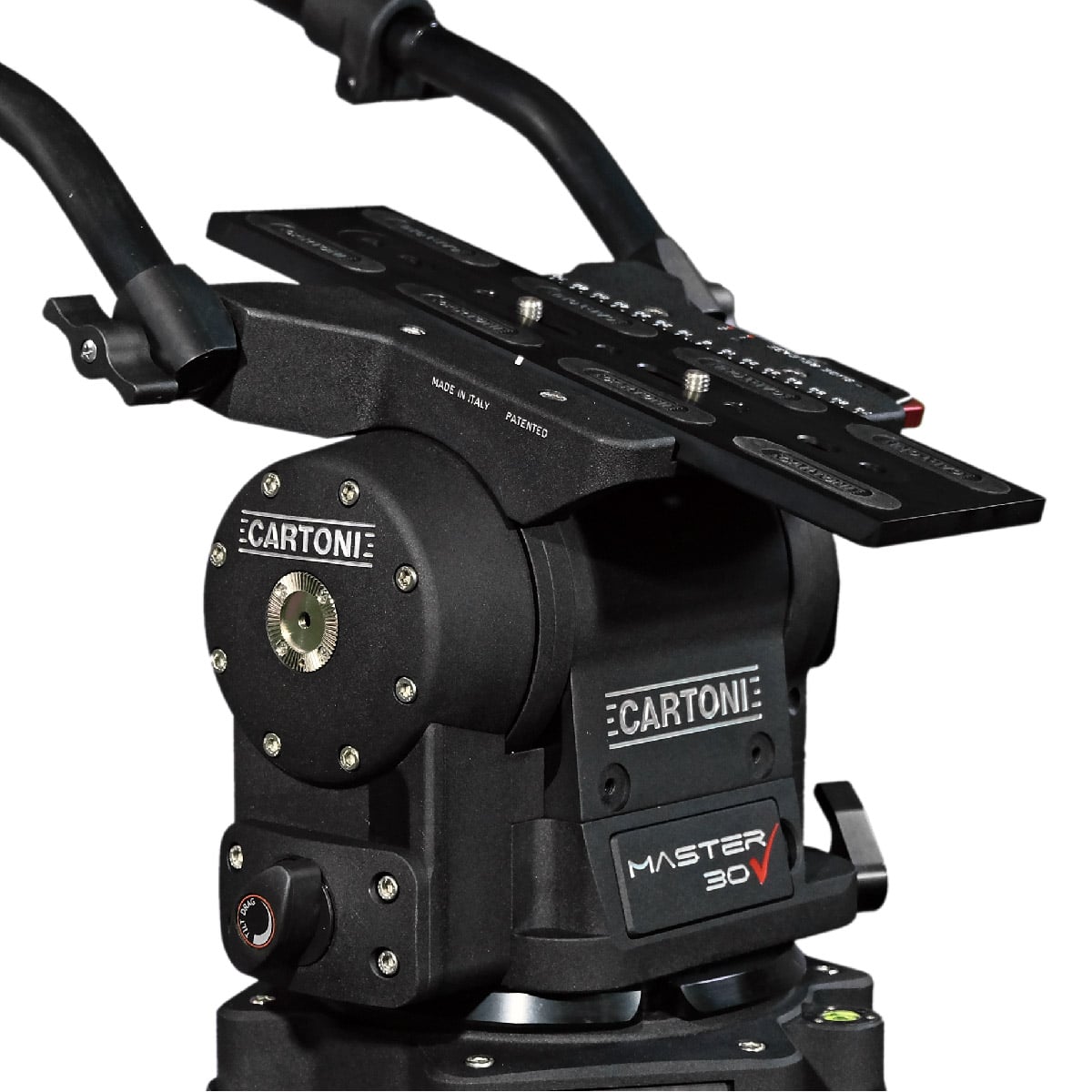

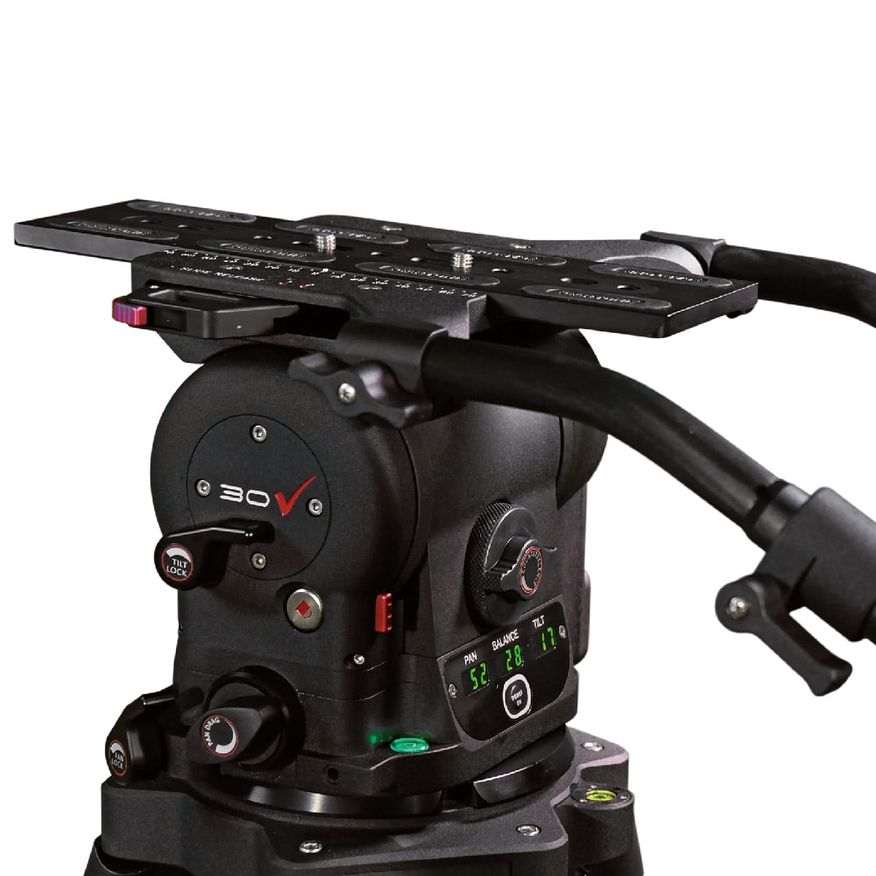

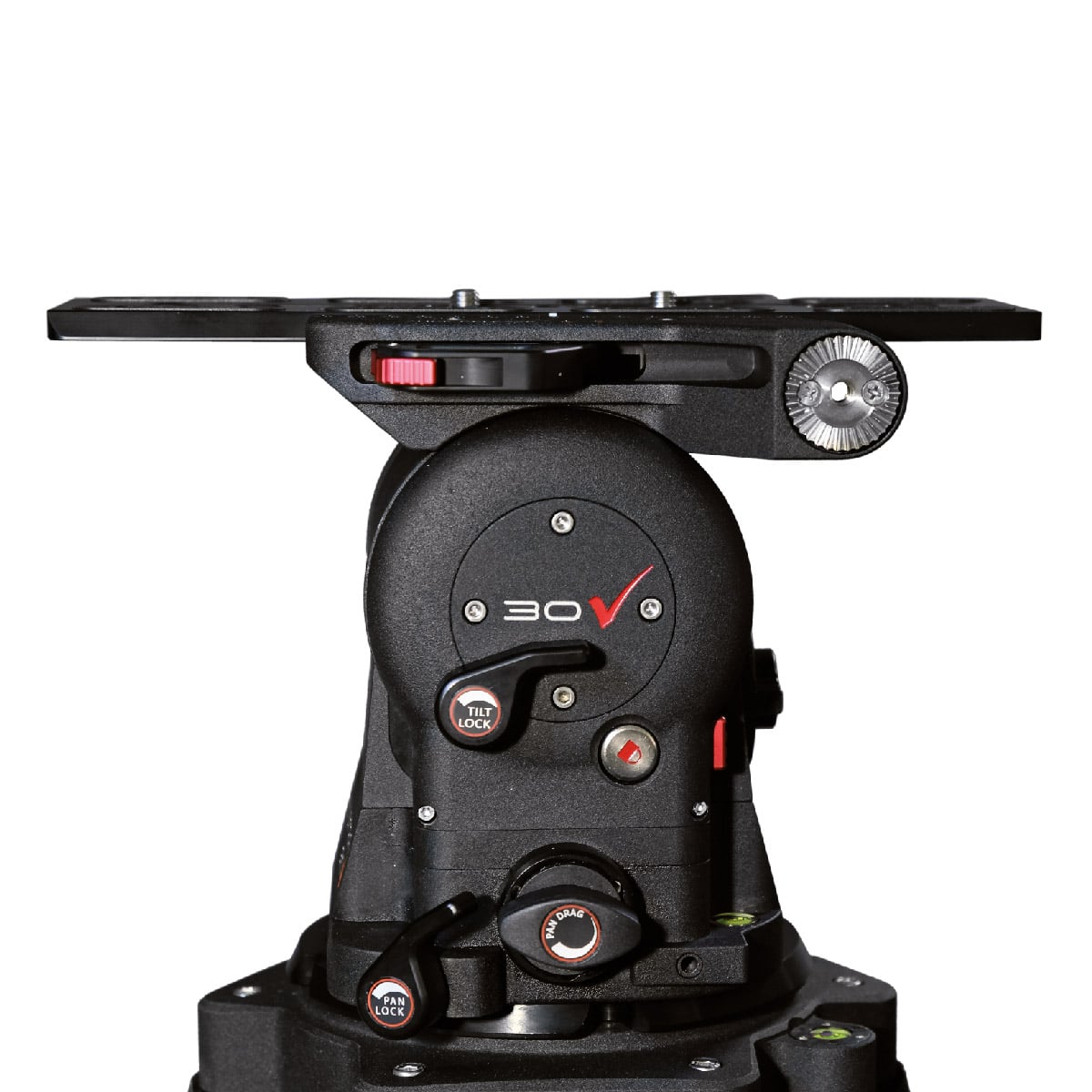

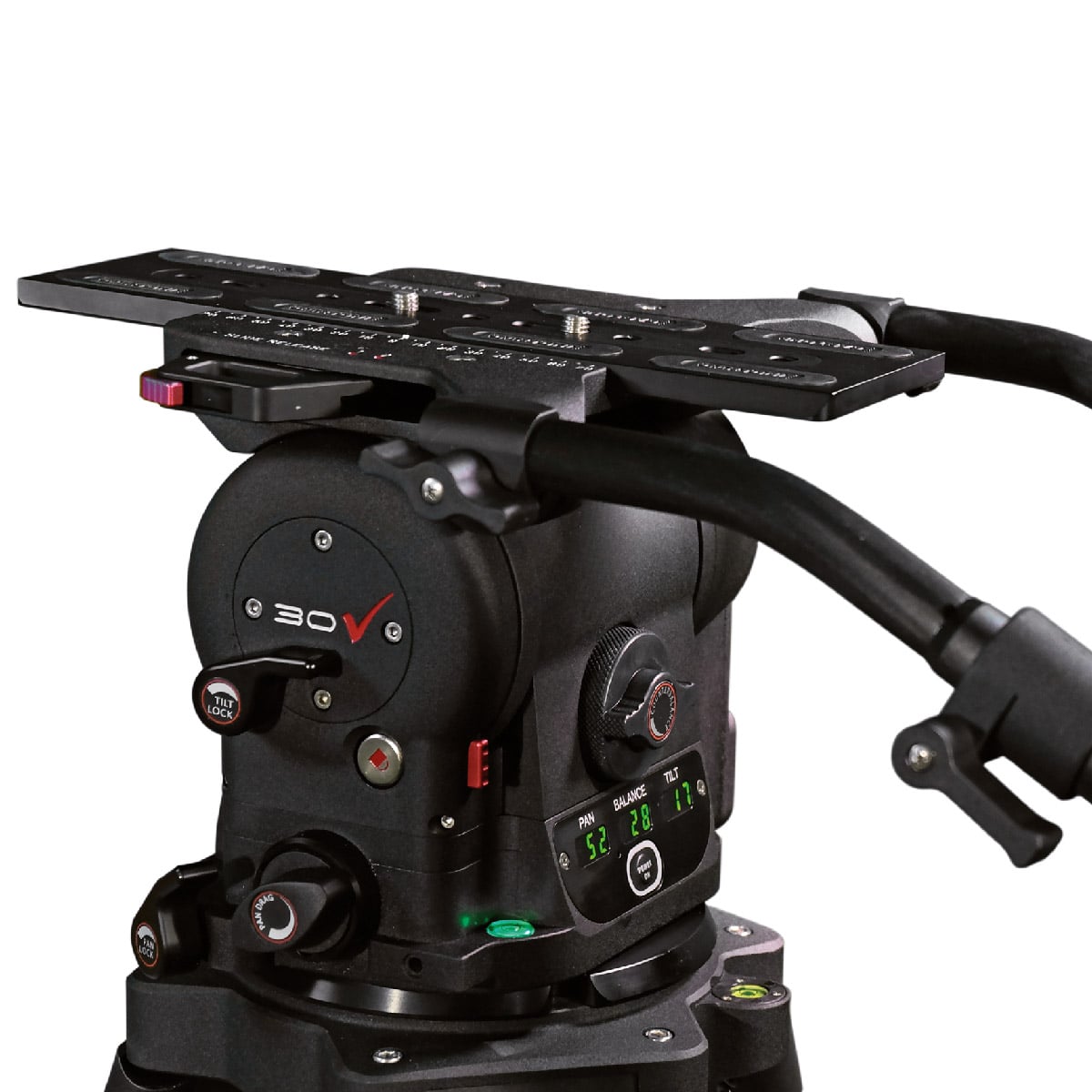

The Master 30 fluid head covers a wide range of broadcast applications with a payload capacity from 3 kg (7 lbs) to 40 kg (88 lbs)
Its patented flawless counterbalance and the patented Cartoni “Planetary” fluid mechanism make the Master 30 the ideal support for todays’ sophisticated 4k EFP, Studio and OB applications.
From almost freewheeling to a consistent maximum drag, along with super precise starts and stops, the Master 30 offers an unprecedented quality of movement in a compact fluid head.
Key features
- +/- 90° tilt range
- Flat Mitchell base (optional 150mm bowl adapter)
- Continuous fluid drag and continuous counterbalance
- Perfect balance at any tilt angle
- Ergonomic brake levers and operating knobs
- Horizontal lock
- Large quick release, side-load sliding camera plate
- Digital readouts and illuminated spirit level
- Telescopic pan bar (second pan bar ordered separately)
Weight - 10.5 kg / 23.15 lbs
Minimum Payload Capacity - 3 kg / 6.61 lbs
Maximum Payload Capacity - 40 kg / 88.18 lbs
Bowl Diameter - Flat
Fluid Drag - Continuous
Counterbalance - Continuous
Pan Range - 360°
Tilt Range - +/-90°
Operational temperature - -40°/+60° Celsius
