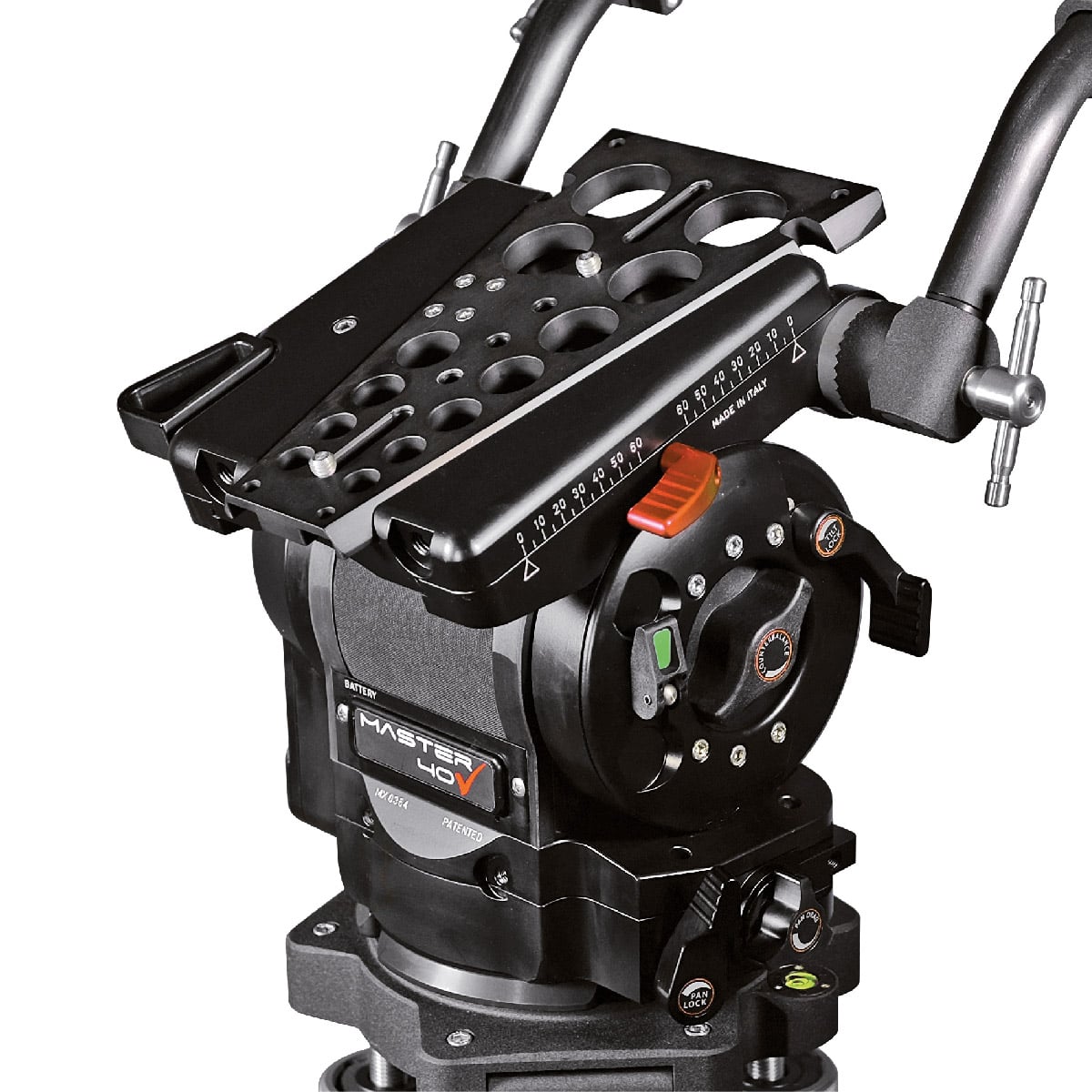

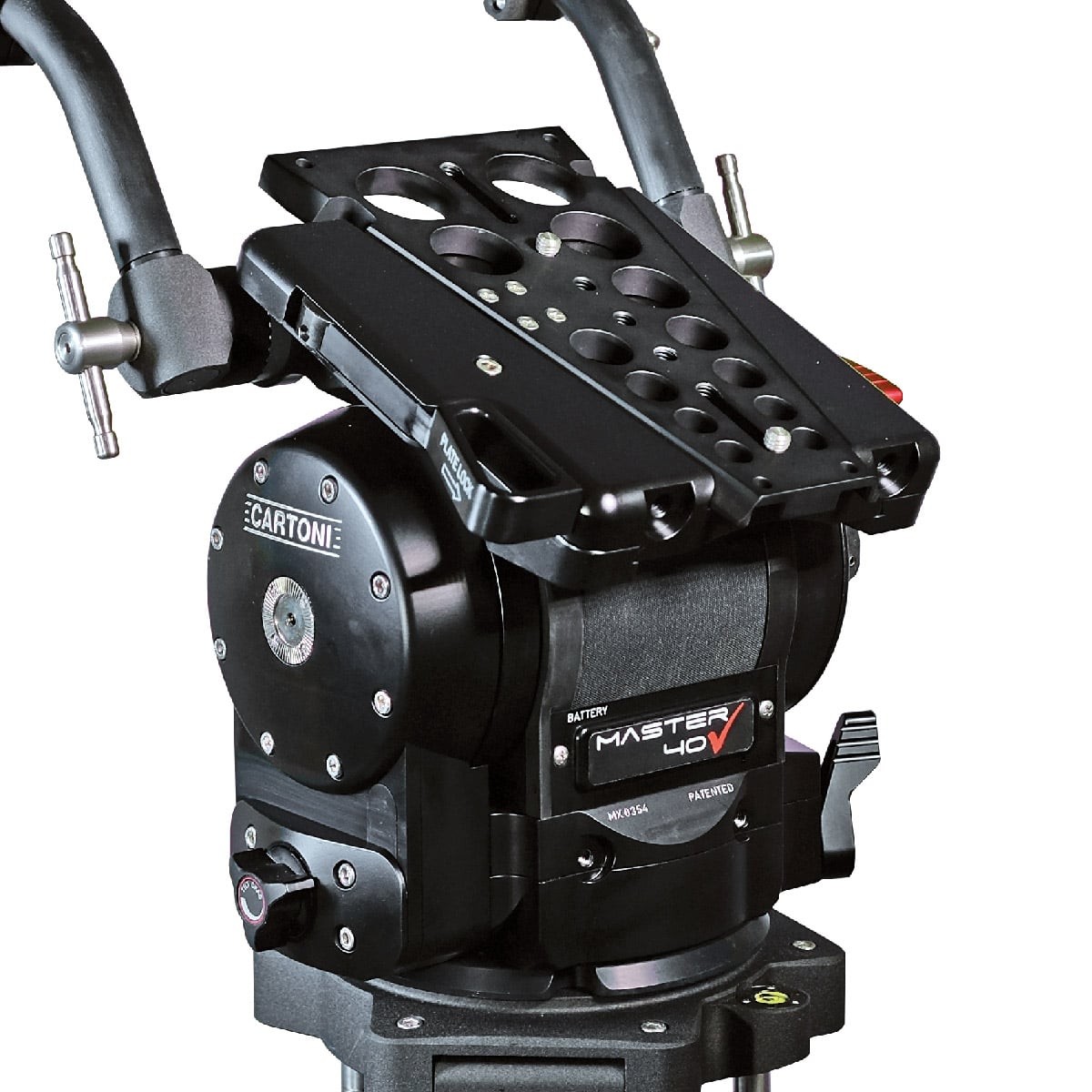

The Master 40 fluid head is the ideal support for heavy duty broadcast camera packages, fully decked with boxed lenses and viewfinder, with a capacity up to 52 kg (115 lbs)
The camera counterbalance system is the patented steel cable technology and ensures a perfect balance at any angle of a unique +/- 90 degrees tilt range.
Fluid drag control features Cartoni’s patented “planetary” fluid system, performing from freewheeling to consistent maximum drag, in both pan and tilt movements.
Key features
- +/- 90° tilt range
- Flat Mitchell base
- Continuous fluid drag and continuous counterbalance
- Perfect balance at any tilt angle
- Ergonomic brake levers and operating knobs
- Horizontal lock
- Large sliding camera platform with quick release
- dovetail camera plate (ordered separately)

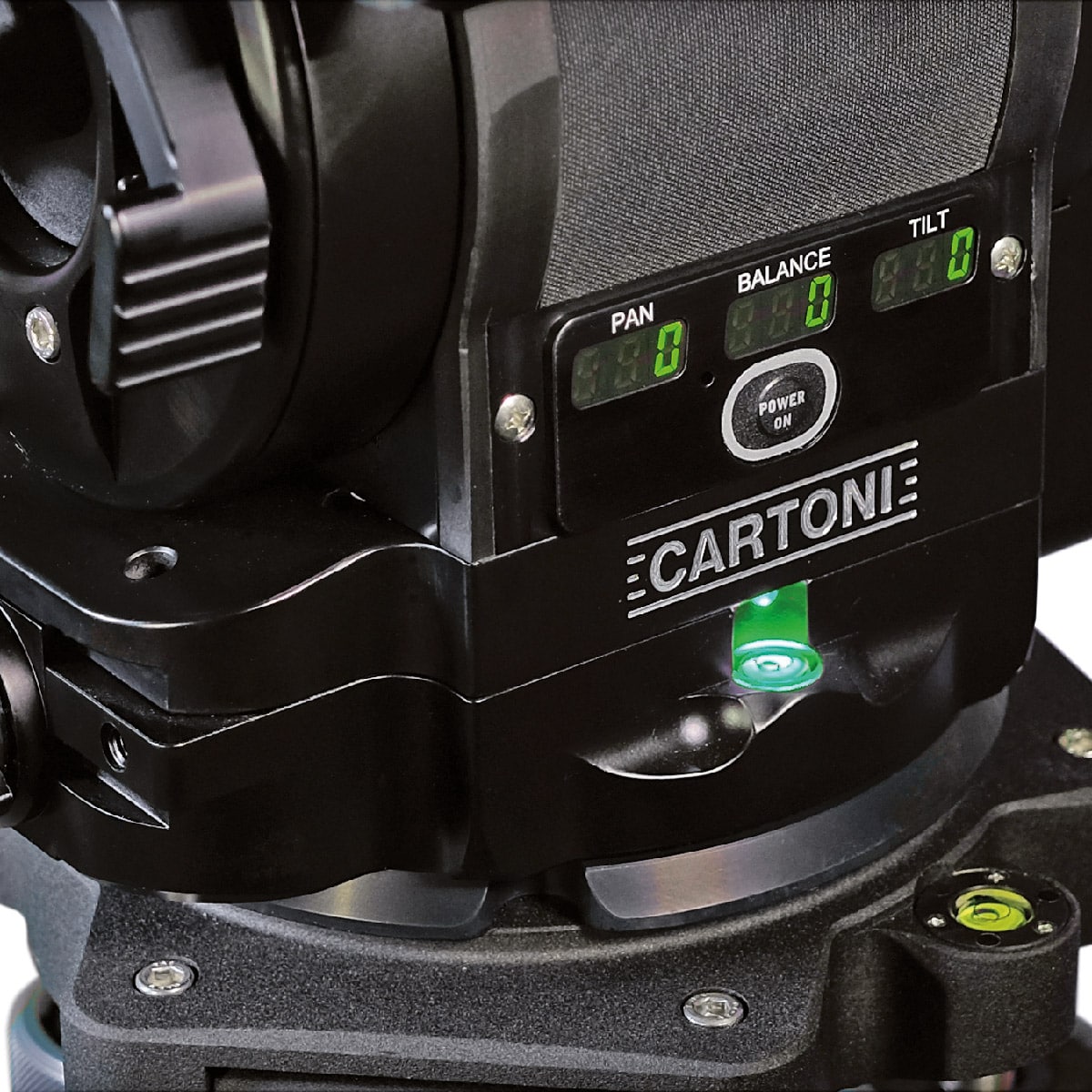

- Digital readouts and illuminated spirit level
- Telescopic pan bar (second pan bar ordered separately)
Weight - 15 kg / 33.07 lbs
Minimum Payload Capacity - 5 kg / 11.02 lbs
Maximum Payload Capacity - 52 kg / 114.64 lbs
Bowl Diameter - Flat
Fluid Drag - Continuous
Counterbalance - Continuous
Tilt Range - +/-90°
Operational temperature - -40°/+60° Celsius
