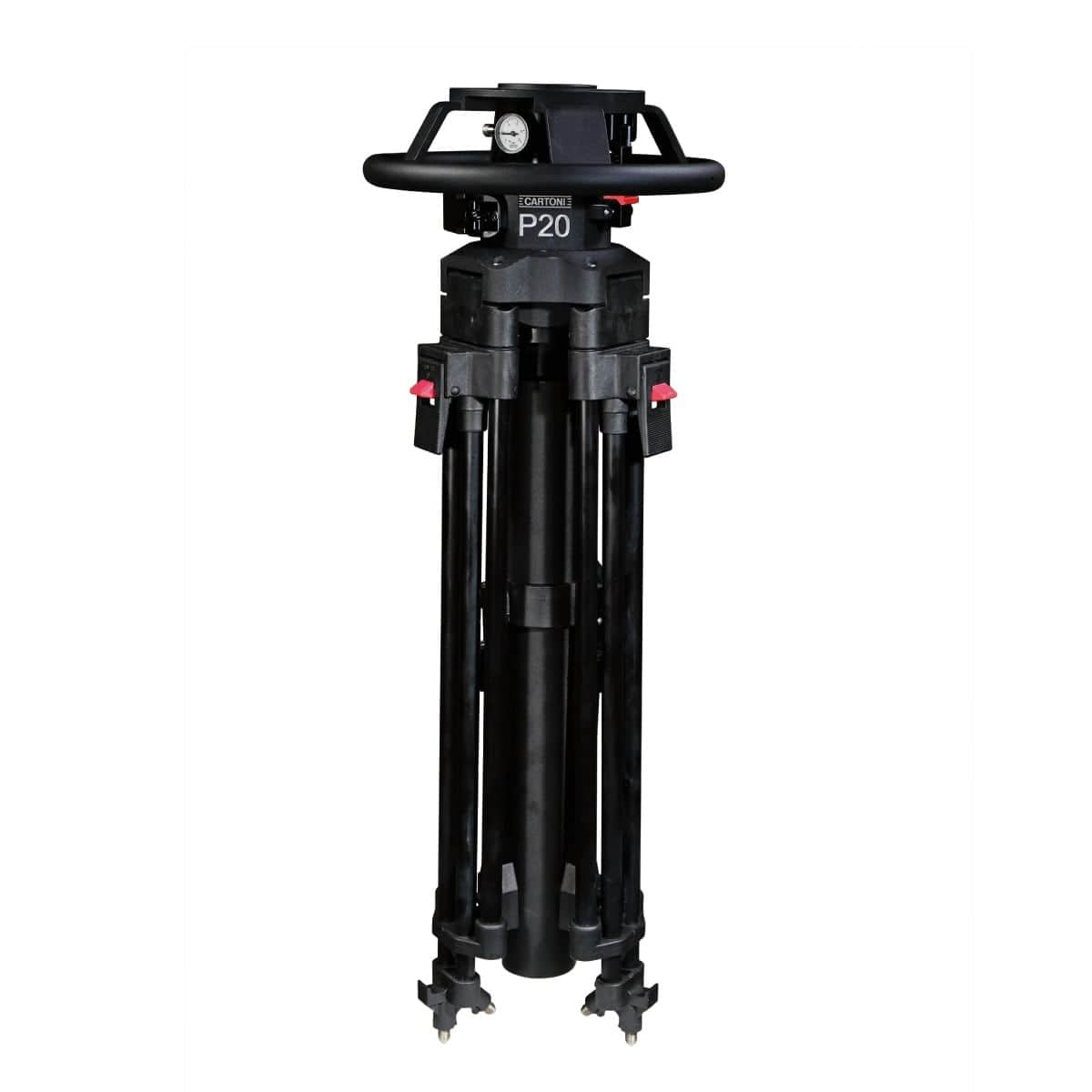

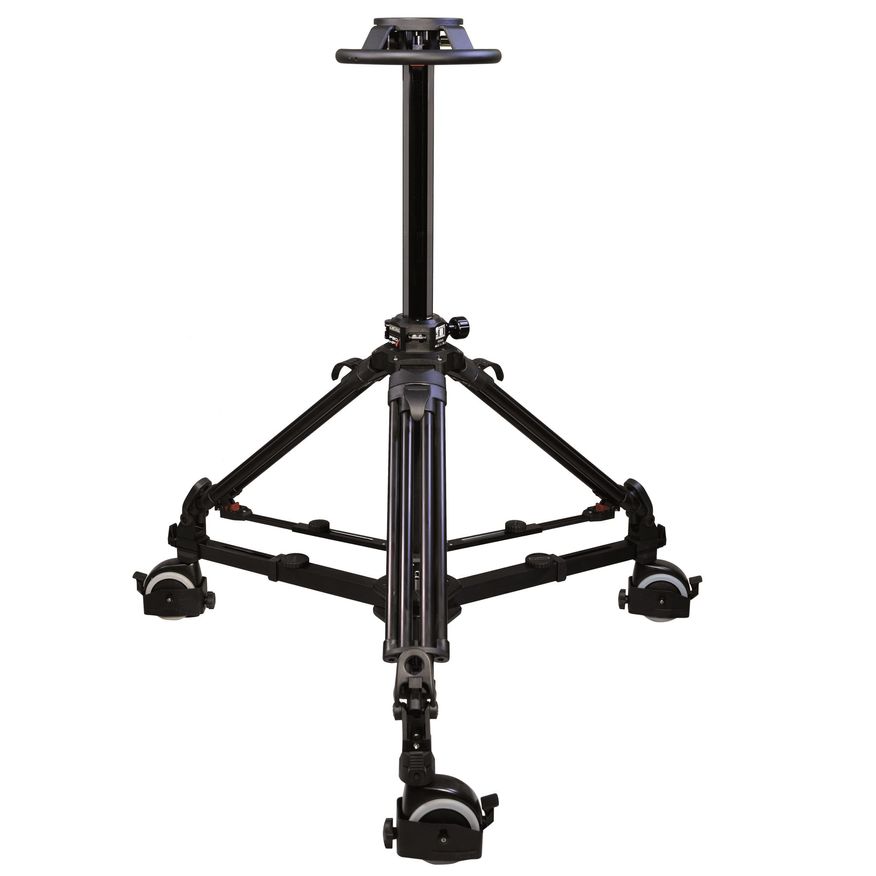

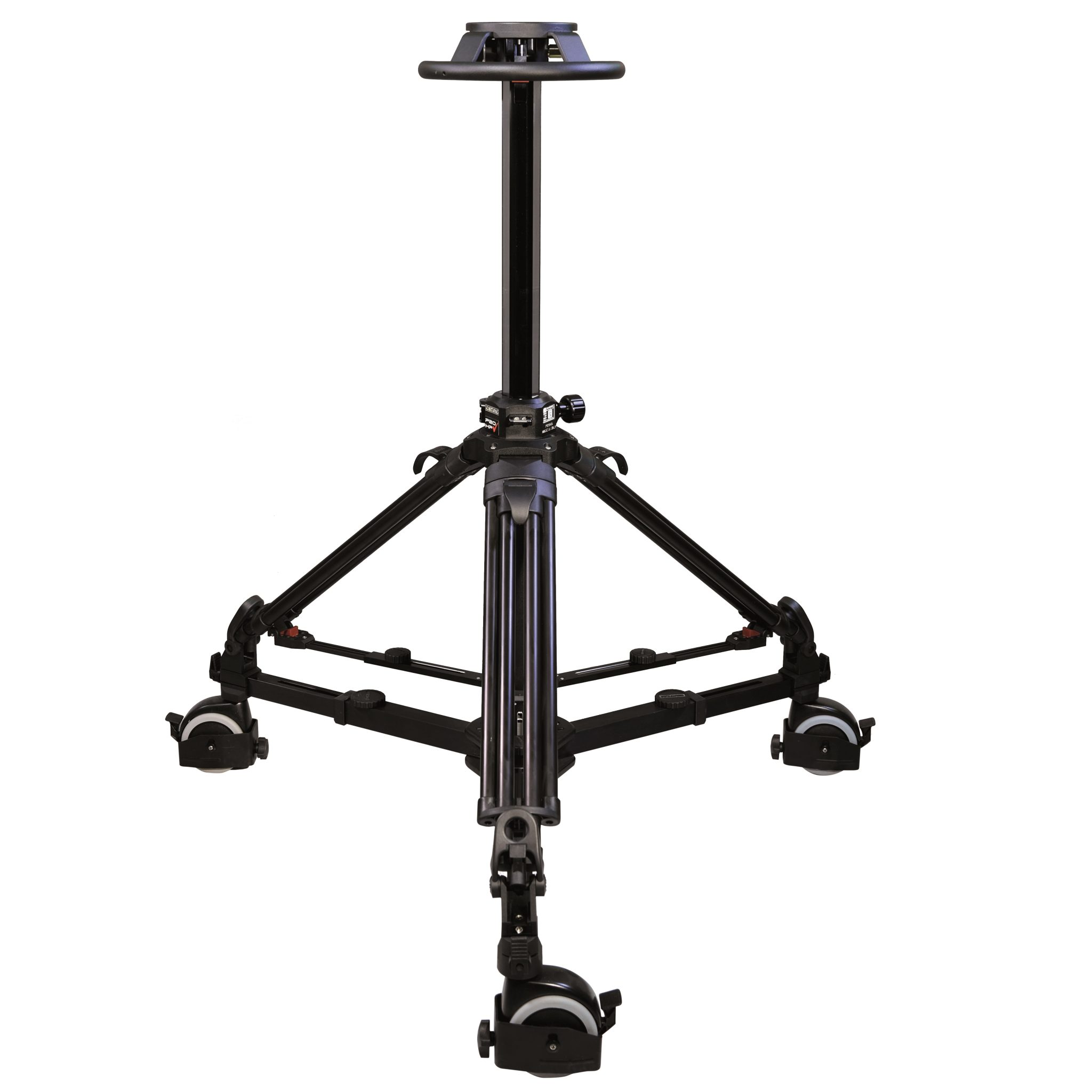

Pedestal P20 HP

Extremely compact and lightweight, this innovative pedestal is the ideal mate for mobile work and lightweight studio needs.

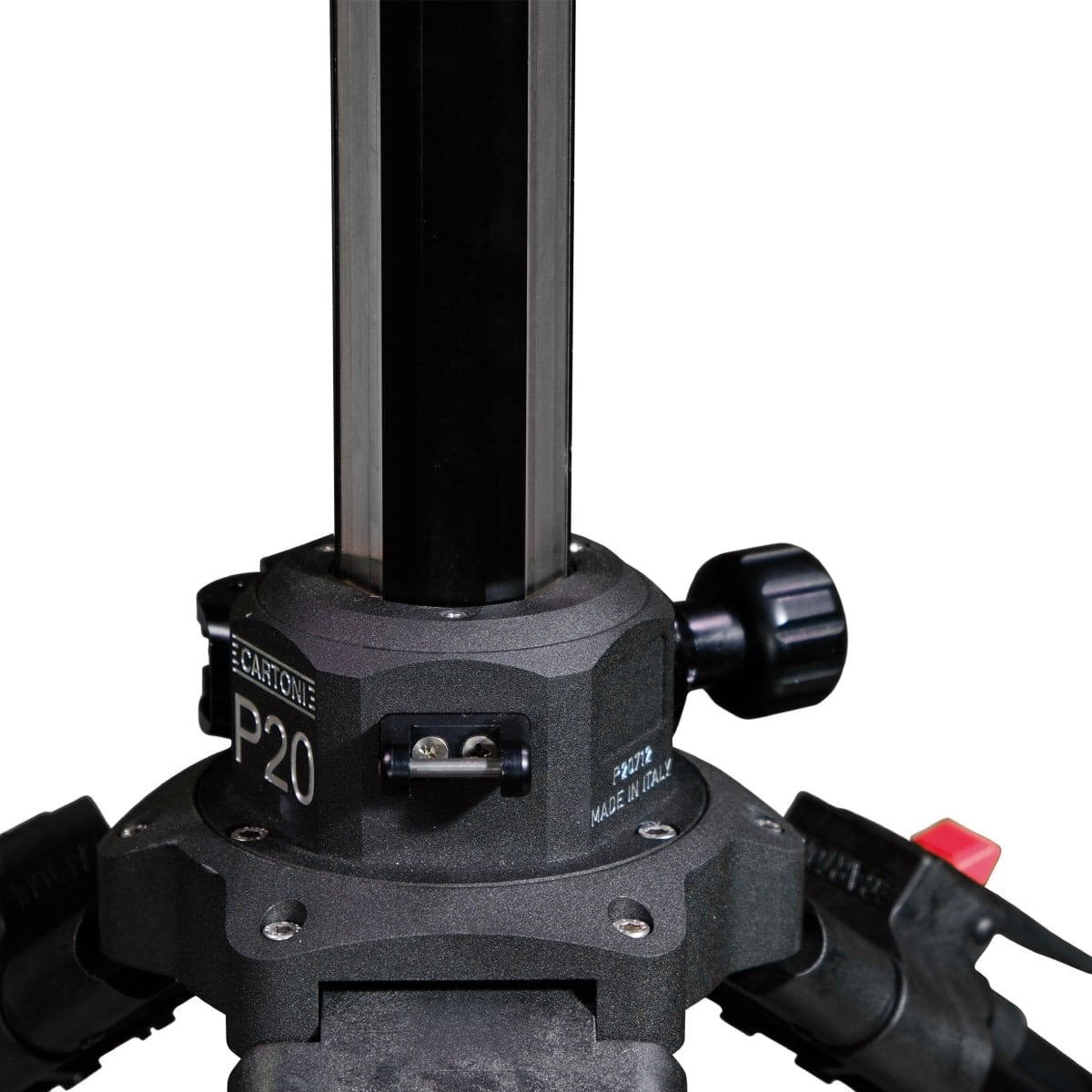

With an extraordinary height versatility, the Cartoni P20HP Pedestal features a high precision extendable dolly and a two stage height adjustment. A pre-settable tripod extension with positive clamps allows to select the basic height and a pneumatic hexagonal column ads on a variable on-shot stroke of 40cm.

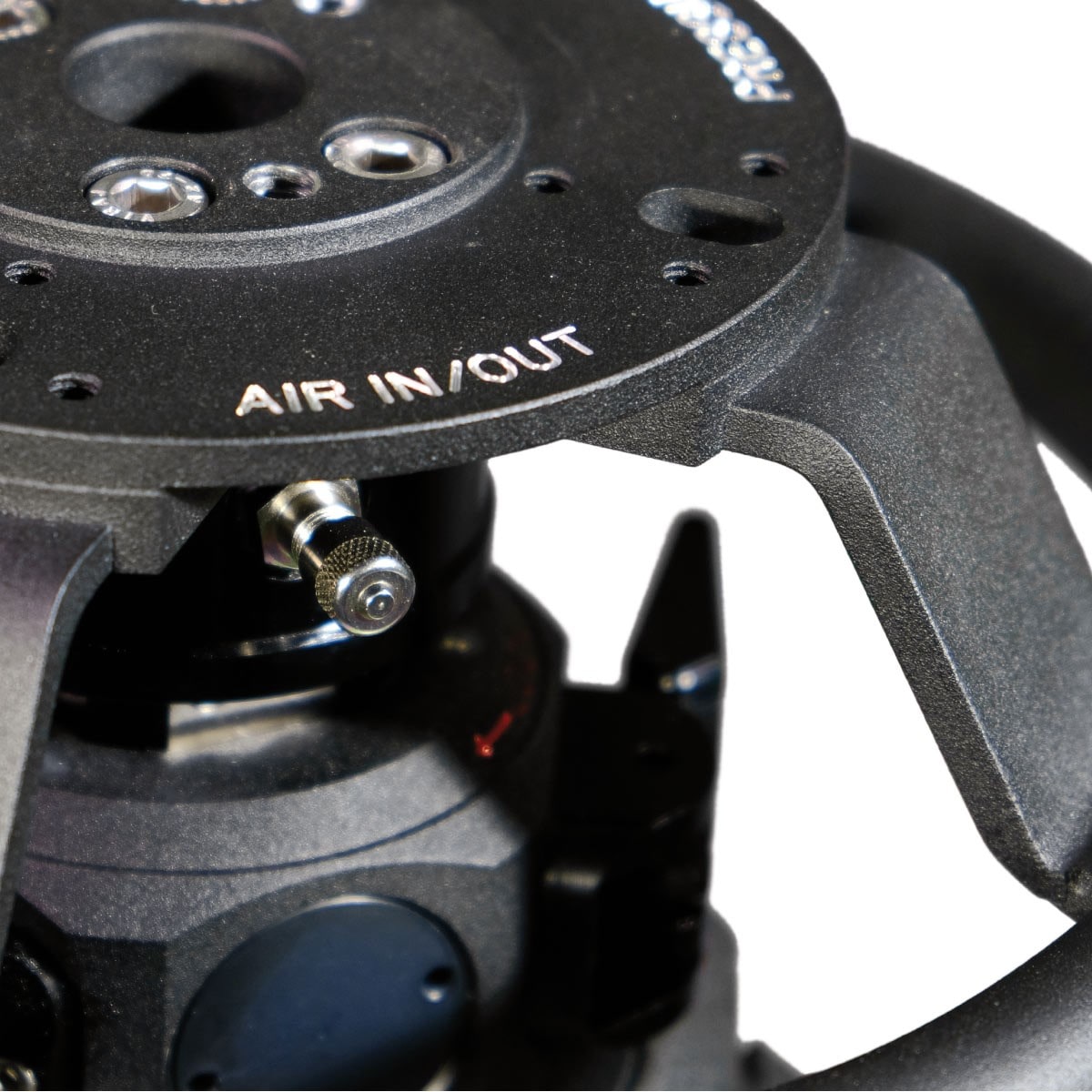

The air pressure can be set manually and adjusted to suit the exact weight of the camera configuration ensuring maximum stability, smoothness and jerk-free operation.

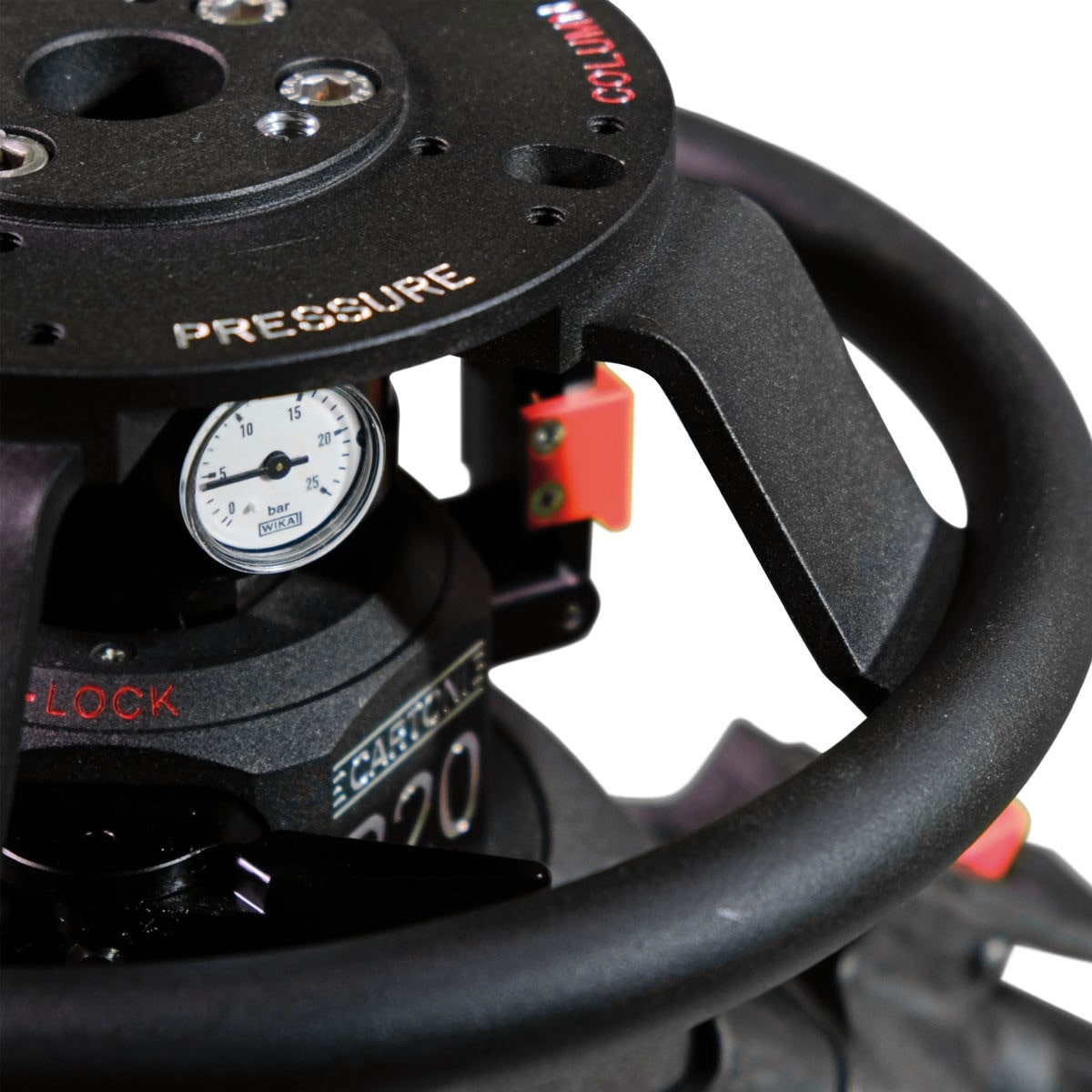

The column supports a maximum payload of 25Kg (55 lbs) it includes an air pressure gauge, locking brake and safety air pressure valve adjusted at maximum 187 psi.

The foldable dolly features a six-position track lock, foot operated brake on each of the 100mm wheel.

The system includes the manual air pump.

Optional skating wheel accessory allow operation on rails. The dolly arms are extendable and adjustable to match tracks of 620mm pace or allow wheeling in narrow spaces.

The P20 HP pedestal is the perfect support for PTZ configurations in small studios

The P20 HP has a 4 bolts direct head attachment or with the optional Pedestal Adapter AH869 it accommodates all 100mm bowl base heads.

Key features:

Compact & Lightweight

Large operational height

Compatible with tracks

Quality pneumatic on-shot movement
