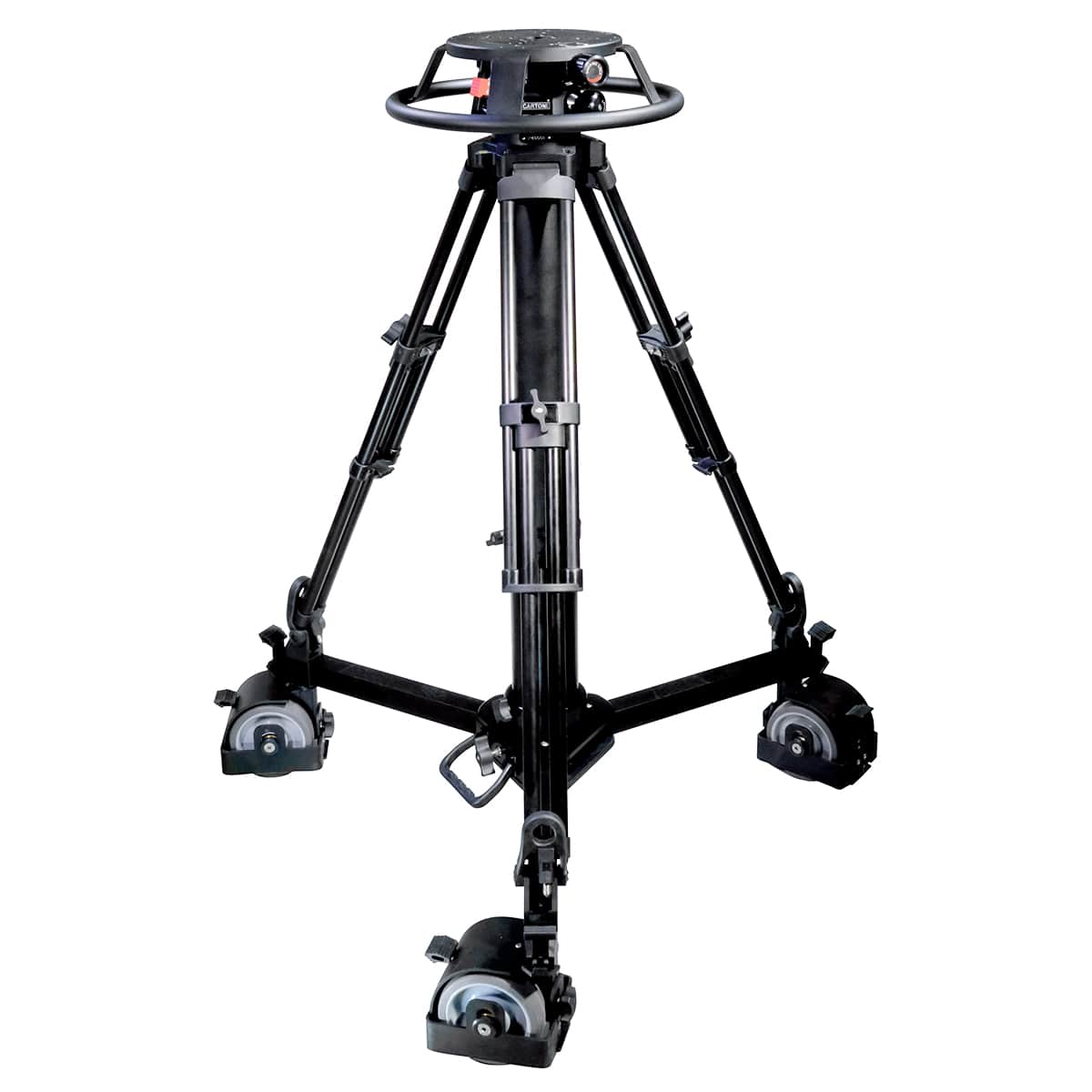

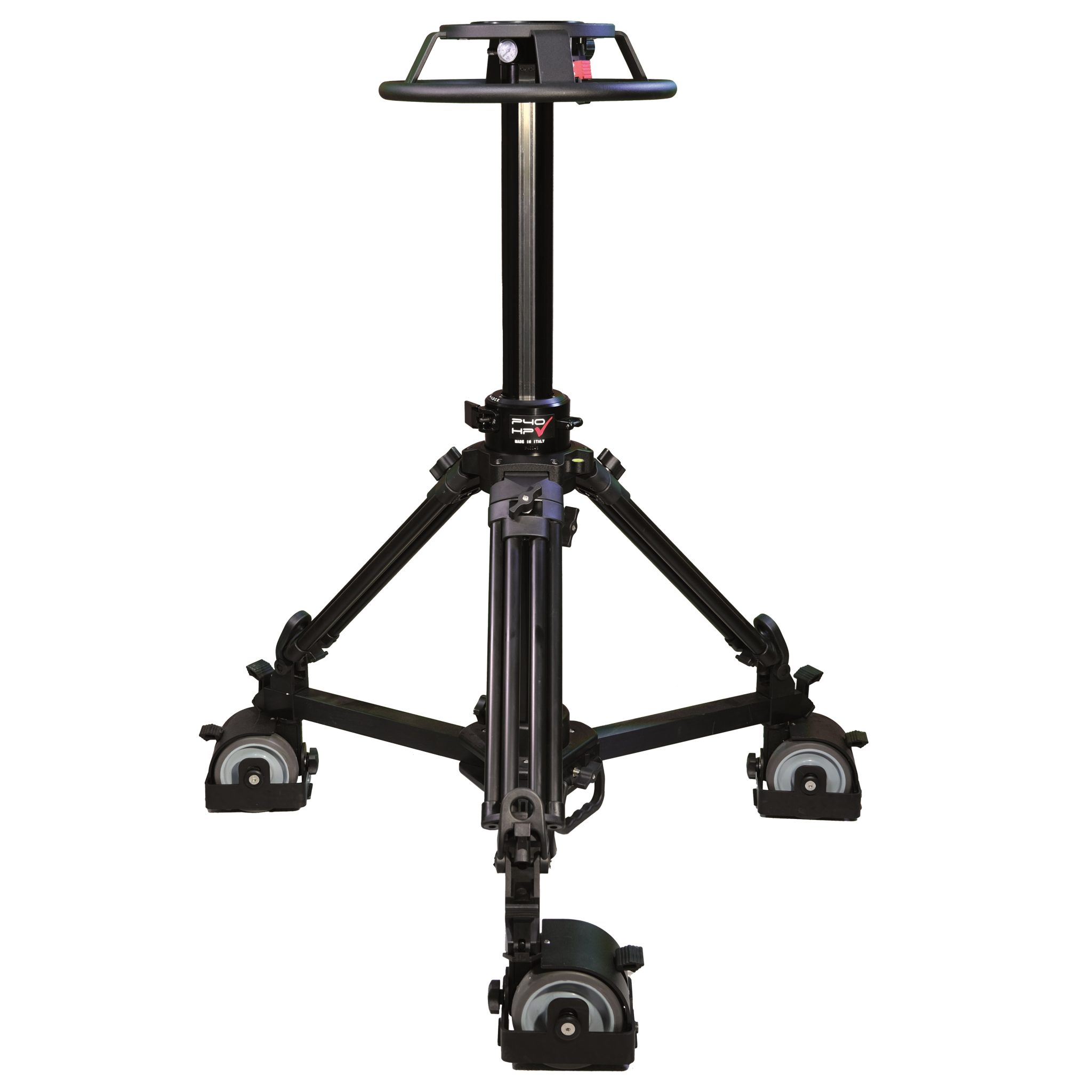

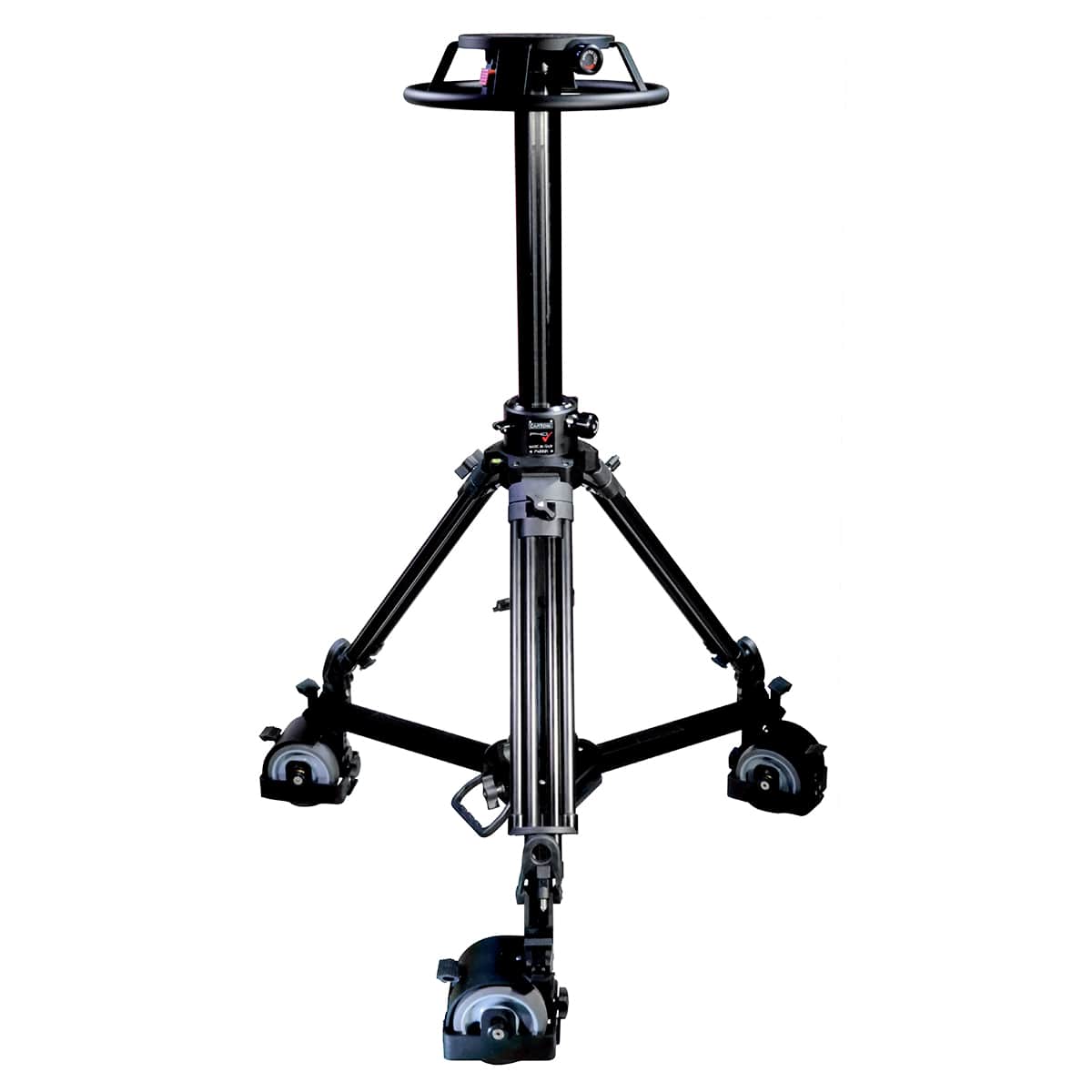

Pedestal P40 HP

Combines perfect balance and on-shot movement for ob & lightweight studio environment, with payloads up to 45kg /100 lbs. This rugged yet lightweight two stage support with large height range, is ideal for newsrooms, sports or ptz configuration.

A pre-settable tripod extension with positive clamps allows to select the basic height and the pneumatic column ads on a variable  on-shot  stroke of 47cm (8 “).

The hexagonal shape guarantees smooth and precise vertical movements and includes an air pressure gauge, a locking brake and a safety air pressure valve.

Features three twin wheels (125mm diameter-4,92 in) lockable in six tracking positions plus a foot operated brake on each wheel & cable guards to provide smooth movements in any desired direction.

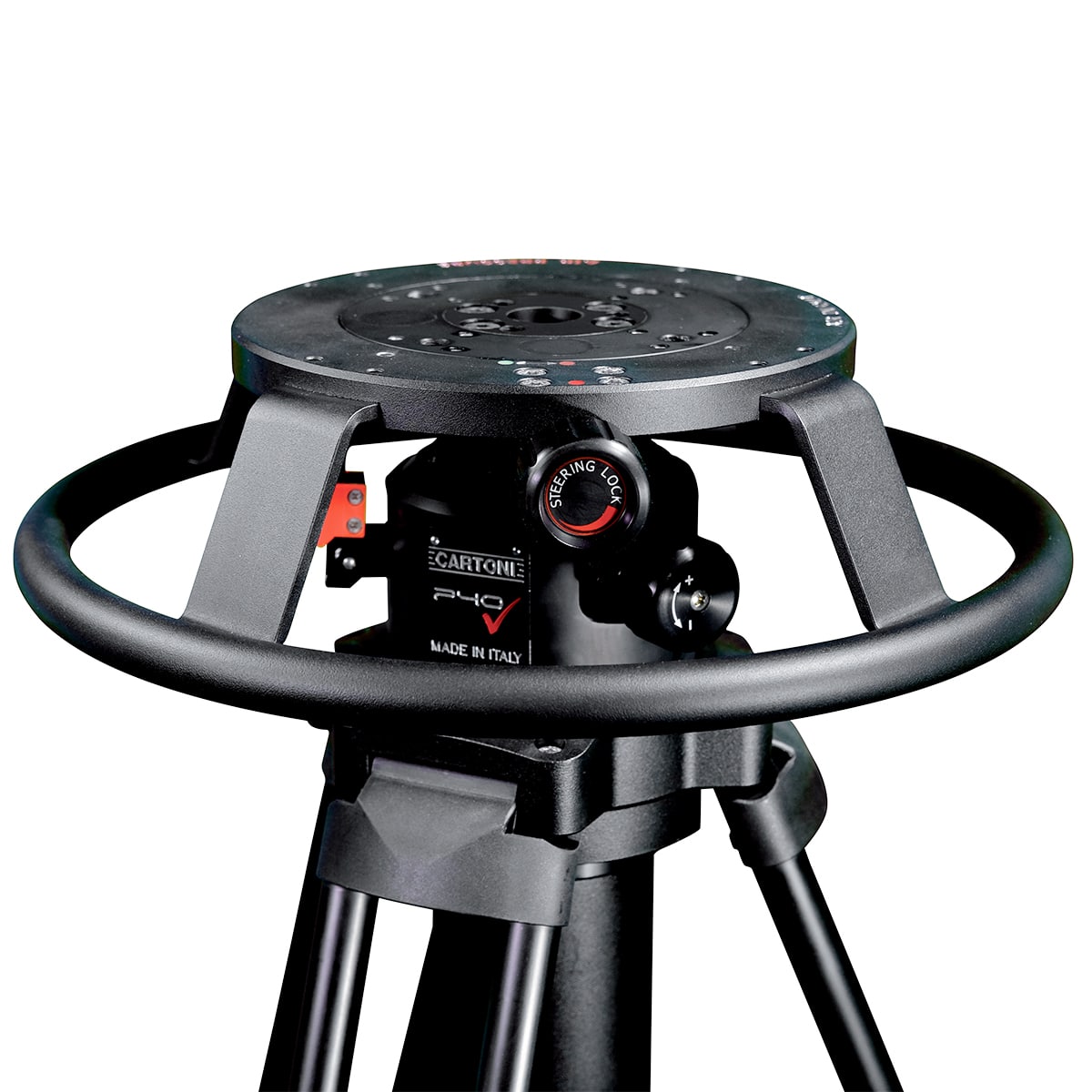

The P40 HP can be mounted on tracks of 620 mm pace with a skating wheel group. The air pressure inside the column can be set manually and adjusted to suit the exact weight of the head and camera configuration. It can be set up or disassembled fast and easy, the steering wheel has a fast lock attachment and the platform interfaces with a variety of optional head adapters.

The P20 HP has a 4 bolts direct head attachment or with the optional Pedestal Adapter AH856 it accommodates all 100mm bowl base heads

Key features:

Large operational height

Sturdy foldable dolly

Flexible mounting & easy set up

Quality pneumatic on-shot movement

Removable steering wheel
