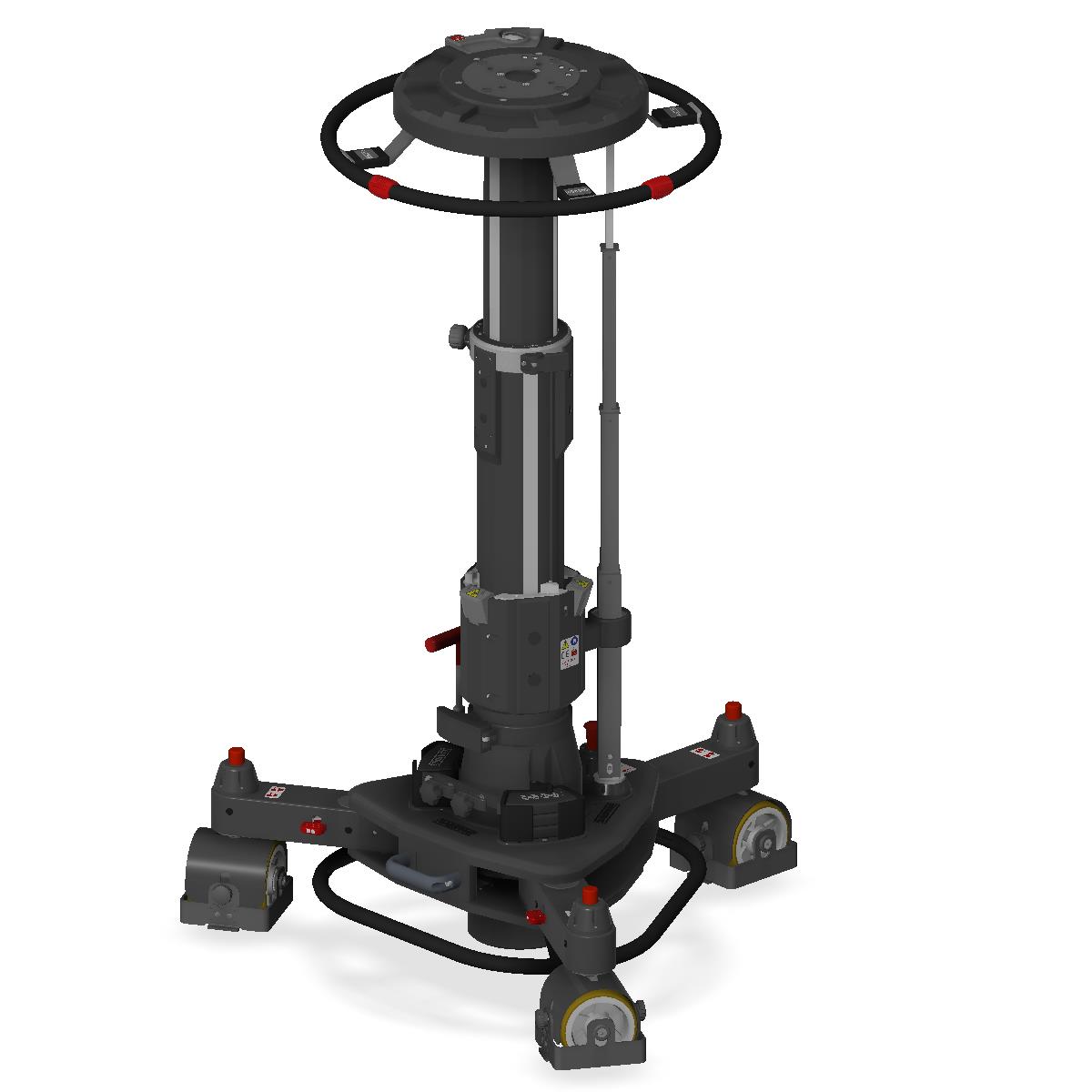

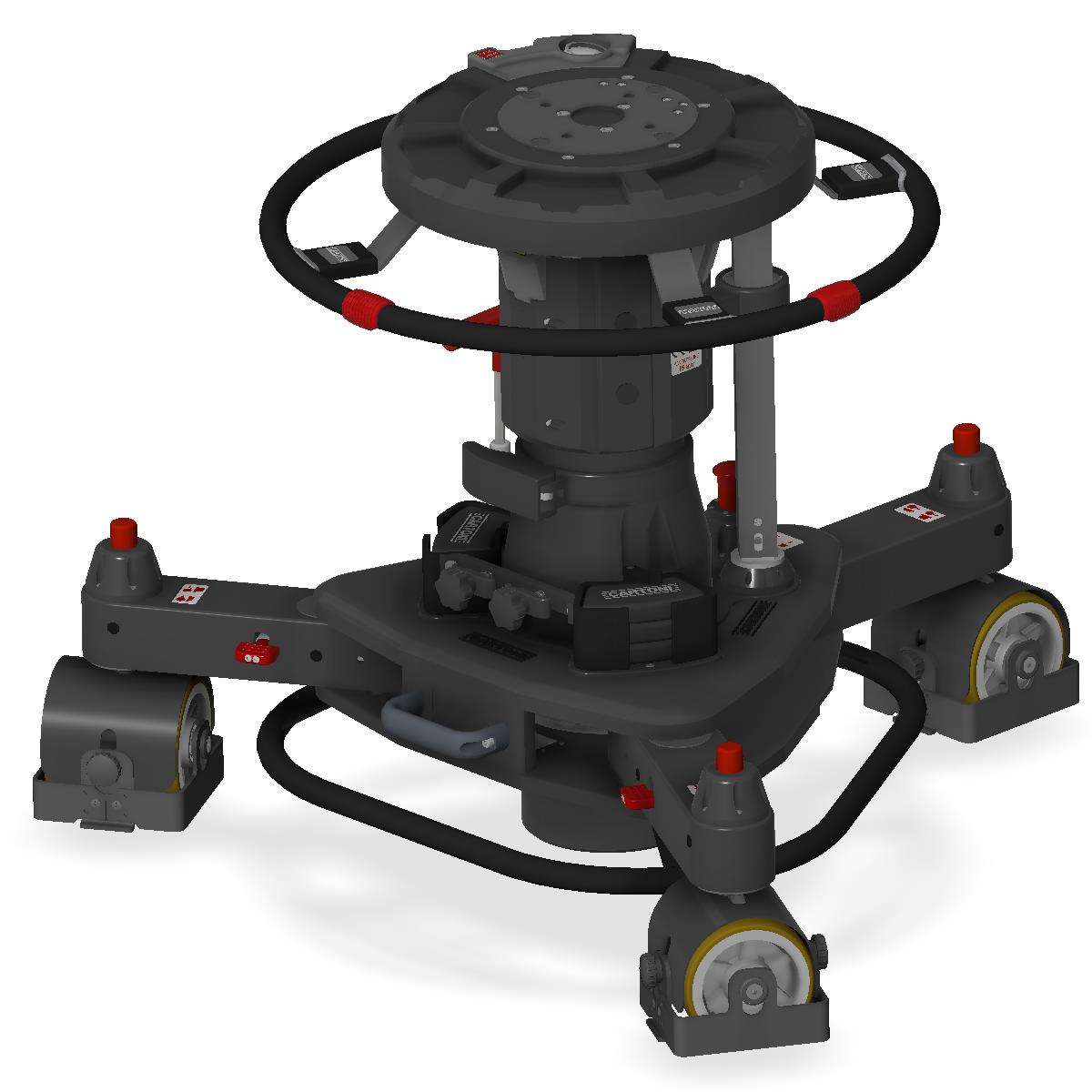

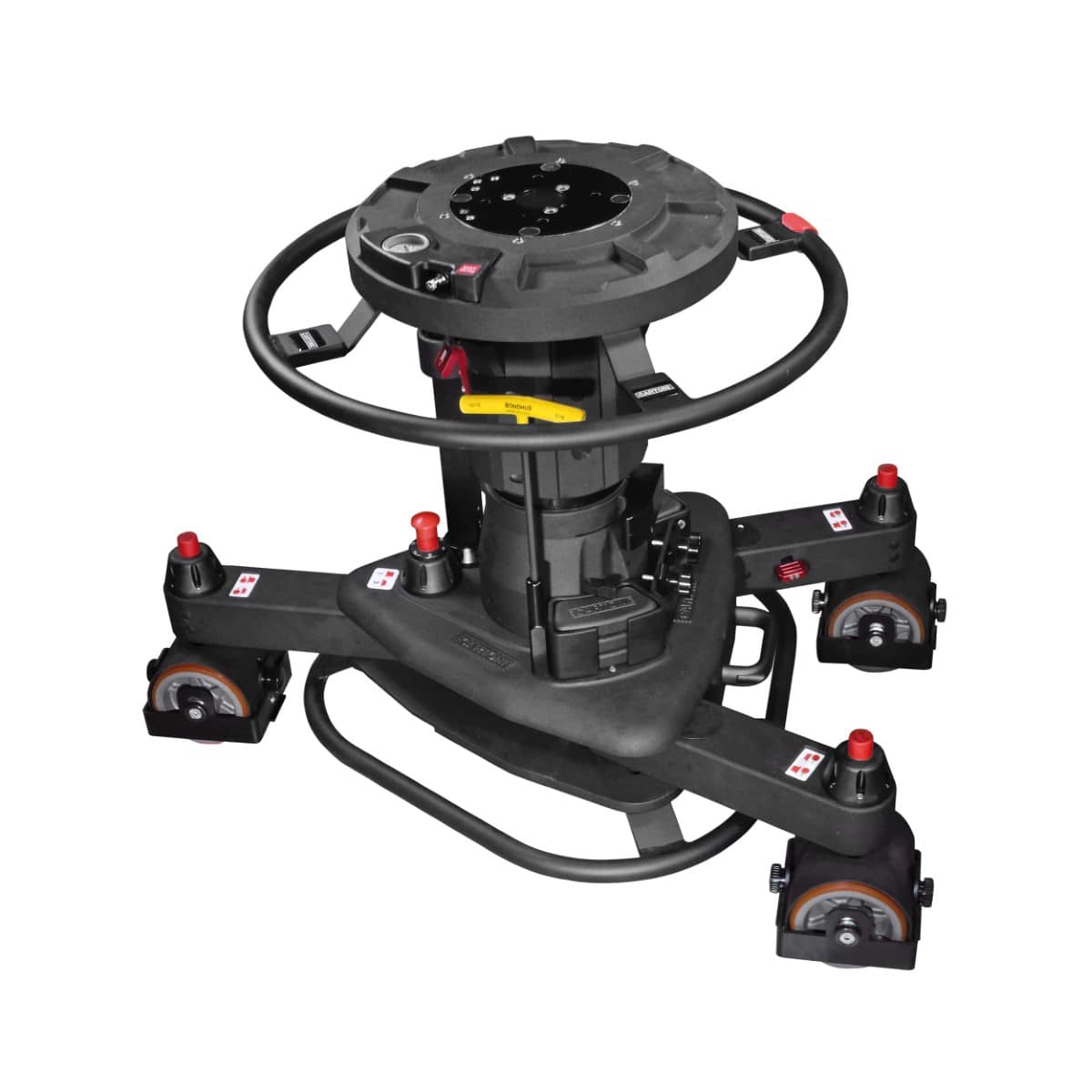

Extremely versatile, the CARTONI P90 two-stage Pedestal is designed to support camera/lens combinations up to 90 Kg.
(198 lbs) covering the entire range of Studio and OB configurations.
The system is compact and portable, the 2 stage column performs an on-shot stroke of 74 cm with a smooth and precise movement.
The sturdy and yet lightweight dolly is equipped with high precision double wheels interlocked by a special designed chain allowing accurate travelling and steering, even on-shot.
The crab position is also available for narrow door ways.
All operating devices and control display are at the cameramen easy access.
The pneumatic column works on simple compressed air which can be loaded with a compressor or a simple hand pump.
The piston innovative design avoids complicated balance settings.
The system interfaces with all flat base, 4-bore holes heads or any other bowl based head with an adapter.
This configuration has been designed with larger and higher wheels (160 mm width) suitable for OB Van and Studio heavy duty applications.
With Pedestal Adapter (AH856) it is possible to mount all the fluid heads Flat Base
The system interfaces with all flat base, 4-bore holes heads or any other bowl based head with an adapter.
Available in "classic black", special order only.
Weight - 60 kg / 132.28 lbs
Maximum Payload Capacity - 90 kg / 198.42 lbs
Maximum Pressure - 15 atm / 220 psi
On-Shot Stroke - 74
Capacity - 90 kg / 198.42 lbs
Wheel Diameter - 12.5 cm / 4.92"
Minimum Height - 72 cm / 28.35"
Maximum Height - 146 cm / 57.48"
Doorway Tracking Width Minimum - 66.7 cm / 26.26"
Doorway Tracking Width Maximum - 95.2 cm / 37.48"
