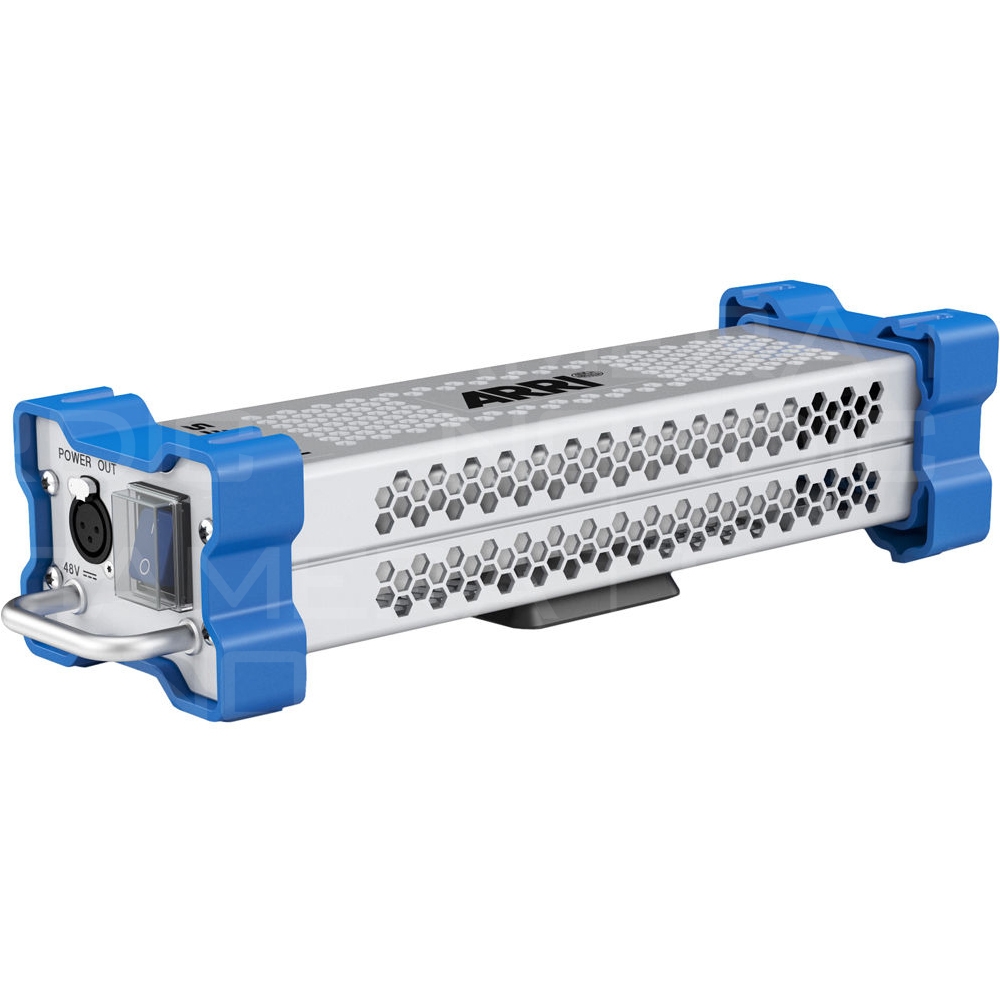

This blue/silver Power Supply Unit for SkyPanel S30 LED Light from ARRI provides 90-250VAC mains power to the fixture. The power supply has an on-board on/off switch and can mounted with an optional Super Clamp Attachment or SkyPanel PSU Rail Mount.
| Power | Input: 90-250 VAC, 50/60 Hz Output: 48 VDC |
| Connections | Input: PowerCON TRUE1 with bare ends Output: Female 3-pin XLR - 10 Amp (pin 1: negative / pin 2: positive) PowerCON TRUE1 (mains power through) |
| Mounting | Optional Super Clamp Attachment or SkyPanel PSU Rail Mount |
| Control | On-board on/off switch |
| Dimensions | 15 x 4.6 x 3.5" (383 x 116 x 90 mm) |
| Weight | 5.5 lb (2.5 kg) |
