Key features:
Five-axis fully stabilized hybrid camera stabilizer system, roll +/- 360°, tilt + 60°/-110°, payload up to 30 kg/66 lb, 12 V & 24 V high-capacity system power supply, LBUS, CAN Bus, tally and battery communication, 12G video, 12G reclocker, intuitive GUI and touch panel based remote controller, high-capacity battery management with battery communication, interchangeable BMS-2 battery mounts, optional wireless radio modules.
NOTE
To complete the initial order, at least one of the mandatory battery mounting, joystick, and monitor/monitor mounting sets must be ordered.
The customer can only put the system into operation if the basic set and the battery, joystick and monitor/monitor mounting set were ordered and delivered together.
Mandatory battery sets:
Gold Mount for BMS-1 / BMS-2, Set (K0.0044355)
V-Mount for BMS-1 / BMS-2, Set (K0.0044356)
B-Mount for BMS-2, Set (K0.0044357)
Mandatory joystick sets:
Master Grip TRINITY 2, One Controller Set (K0.0044362)
Master Grip TRINITY 2, Two Controllers Set (K0.0044363)
TRINITY 2 Analog Joystick Set (K0.0044364)
Mandatory monitor sets:
5in Transvideo Starlite Monitor Set, TRINITY 2 (K0.0048722)
5in Small HD Cine 5 Monitor Set, TRINITY 2 (K0.0048707)
Universal Monitor Mounting Set, TRINITY 2 (K0.0048742)

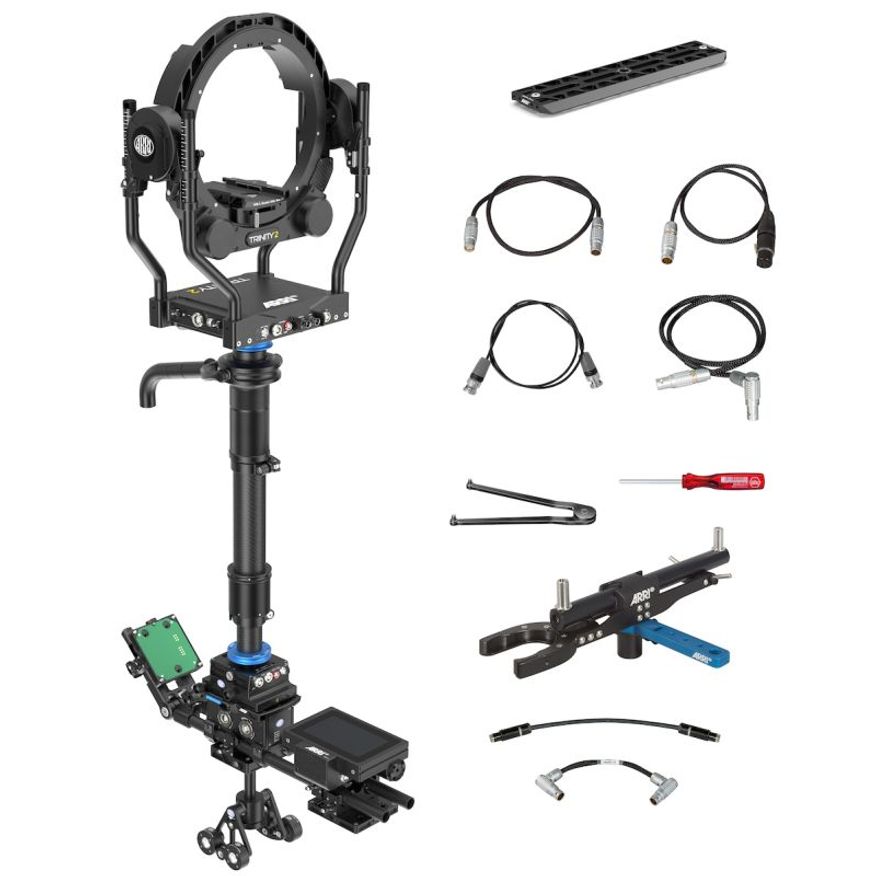

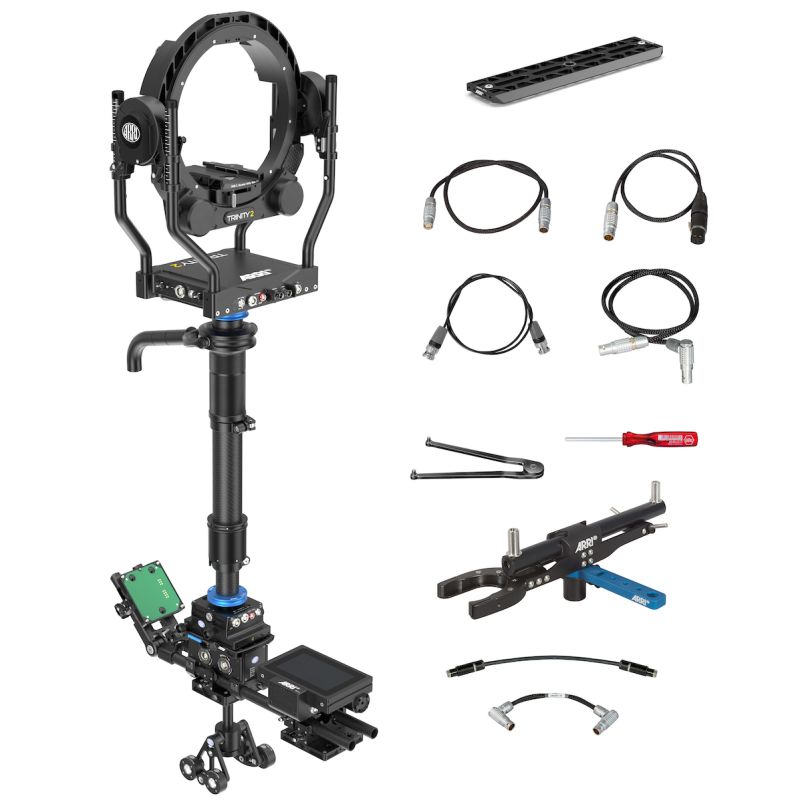

Parts of the set
- K2.0042636, TRH-2, TRINITY 2 Head, 16-pin, X-Body
- K2.0042631, TRH-2 Ring Main Cable, Standard, 0.65 m/25.5"
- K2.0040347, DUB-3, Dovetail Utility Base / 3
- K2.0041201, Stabilizer Adapter Mount SAM-Zero
- K2.0039443, Cam Pwr Gen.2, ALEXA 35, Mini, AMIRA, 24 V, 8-pin
- K2.0039448, Cam Pwr Gen.2, 4-pin XLR, 12 V
- K2.0010319, ARTEMIS Docking Bracket, 1.8in
- K2.0040046, CSS Post Tool for ARTEMIS and TRINITY
- K2.0010493, ARTEMIS Gimbal, 1.8"
- K2.0010569, Gimbal Handle Extender for 1.8" Gimbal
- K2.0010489, ARTEMIS Carbon Center Post, 1.8"
- K2.0040332, Post Main Cable, 3B, 16-pin
- K2.0038249, TST-2, artemis Top Stage, Gen.2, 16-pin
- K2.0037739, BHM-2, Battery Hanger Module, Gen.2
- K2.0037771, Power Cable, BHM-2 to TST, 12 V, 24 V, Bat. Data
- K2.0041327, Support Rods 305 mm/12", 19 mm
- K2.0040790, Support Rods 120 mm/4.7", 19 mm
- K2.0037757, Hinge for Battery Hanger Module, Gen.2, 19 mm
- K2.0039300, BMS-2, Battery Mounting Base, Gen.2, (naked)
- K2.0036377, TPD-2, TRINITY Pendulum Gen.2
- K2.0041090, RCP-3, Remote Control Panel
- K2.0042837, CSS Clamp Bridge 52, 19 mm
- K2.0043883, RCP-3, FS Can Bus Cable, 25 cm/10"
- K2.0033569, Counterweight, CW-1, 150 g
- K2.0041984, 12G HD SDI BNC Cable, 0.63 m/25"
