The Voyager NXT is a fully collapsible mobile workstation solution designed by INOVATIV for professionals in need of a light, durable and reliable workspace on-the-go. It is crafted to act as the unifying component for all the gear a professional owns or requires on the job.
The Voyager Series Features
The Voyager Series workstation offers a secure and adaptable workspace that can be easily collapsed and transported to any location. Its construction from lightweight yet durable materials, combined with customizable features, makes the Voyager an ideal solution for a flexible workspace adaptable to various environments.
Both the Voyager NXT and Voyager EVO X models come equipped with features that enhance their mobility and functionality, meeting the demands of professionals on the move:
Durable Materials: Constructed from premium aluminum, composite materials, and stainless steel hardware, the workstation is both lightweight and sturdy.
Integrated Threaded Rail Plates: The top shelf includes side plates with a variety of 1/4"-20 and 3/8"-16 holes for accessory mounting options, enhancing customization and setup flexibility.
Foot Brake System: This system provides easier access and stronger stopping capabilities than traditional caster brakes, ensuring the workstation remains stable and secure in any setting. The lever over the wheel is simply pushed down to lock in the brake.

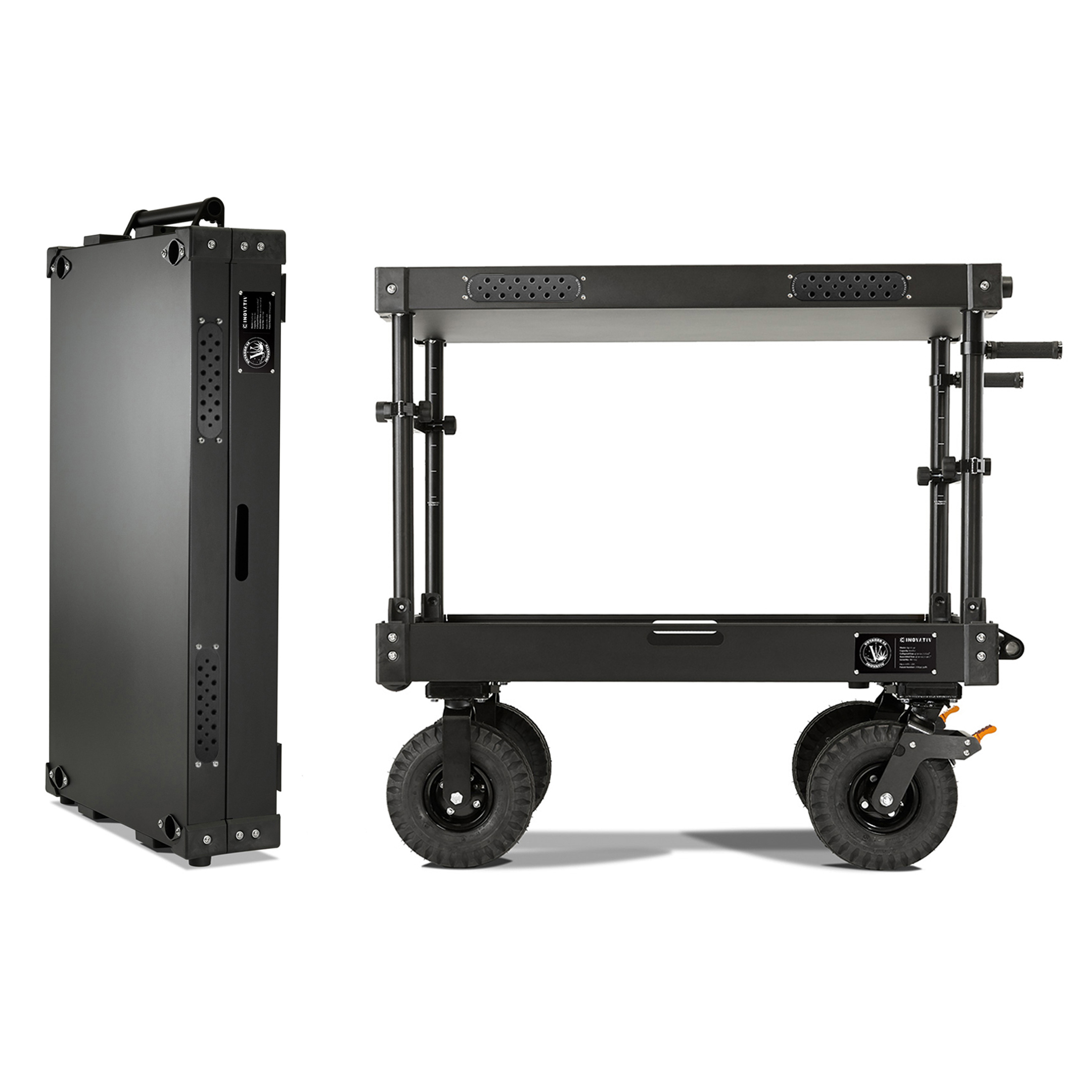

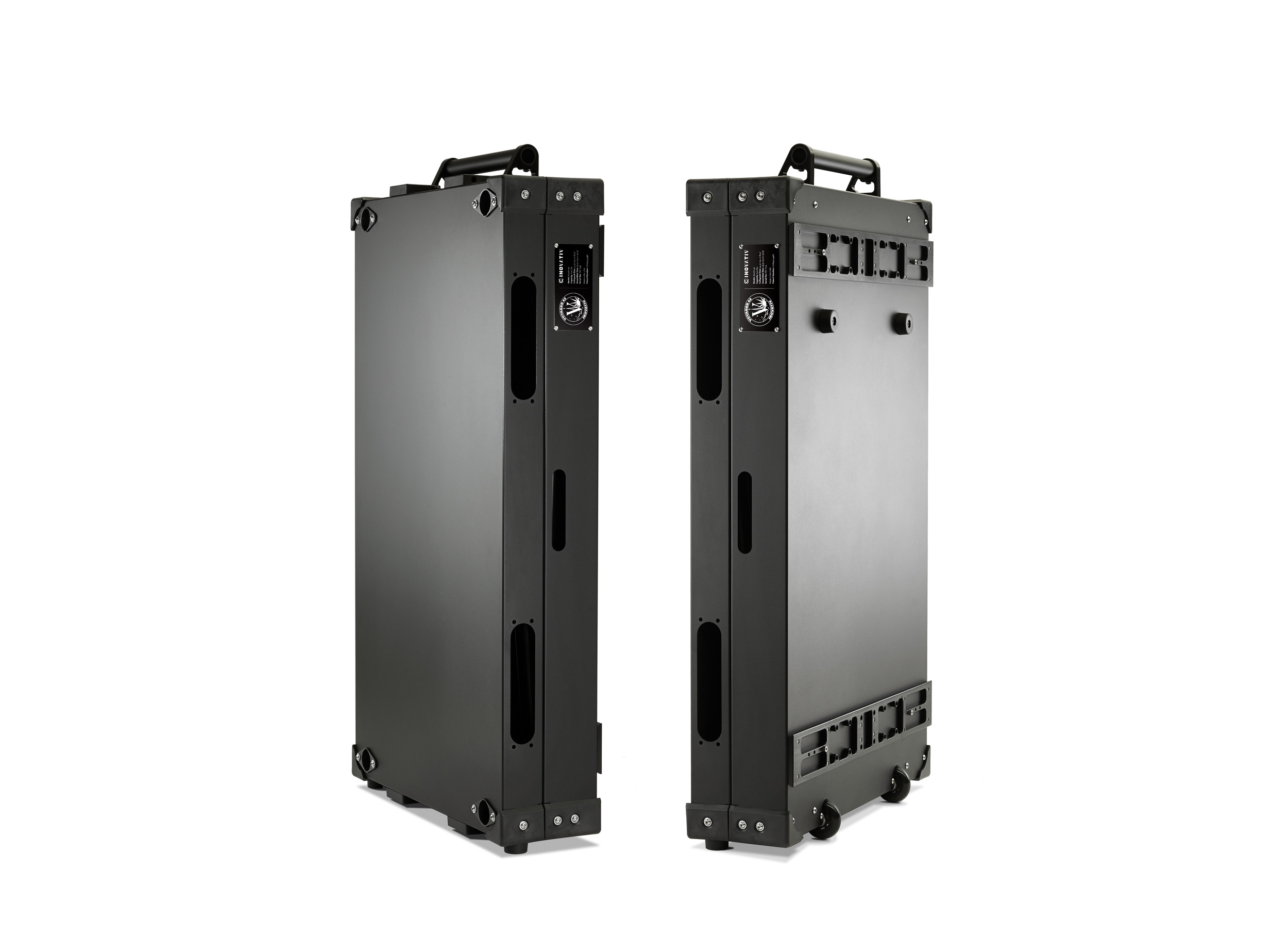

Travel Friendly: With a tool-free design, the workstation can be quickly set up or collapsed into itself, with the removable wheels packed in, and then securely locked down using the integrated Pack Latch System to transform it into a compact case for convenient travel. Integrated Skate Wheels on the exterior facilitate easy pulling of the collapsed and latched workstation during transport.
Features of the Voyager NXT
The Voyager NXT is distinguished by its unique features, designed to provide a functional, straightforward, and reliable mobile setup:
Optimal Sizes: Available in two sizes, the Voyager 36 NXT and Voyager 42 NXT, to meet diverse spatial and storage requirements.
4-Sided Top Shelf: The NXT's top shelf features a four-sided enclosed design, ensuring items stay securely in place. This design is essential for professionals who require a reliable platform for their equipment and are concerned about items sliding off the top shelf.
Fixed Height Top Shelf: The Voyager NXT offers a stable, fixed height of 38.75 in. for the top shelf work surface, providing a consistent workspace.
10 in. Wheel System: The NXT includes a detachable 10-inch wheel system, mounted on aluminum dovetail conversion plates, featuring heavy-duty steel casters for enhanced stability. The larger wheel size, along with a convenient footbrake, significantly improves the workstation's mobility and safety.

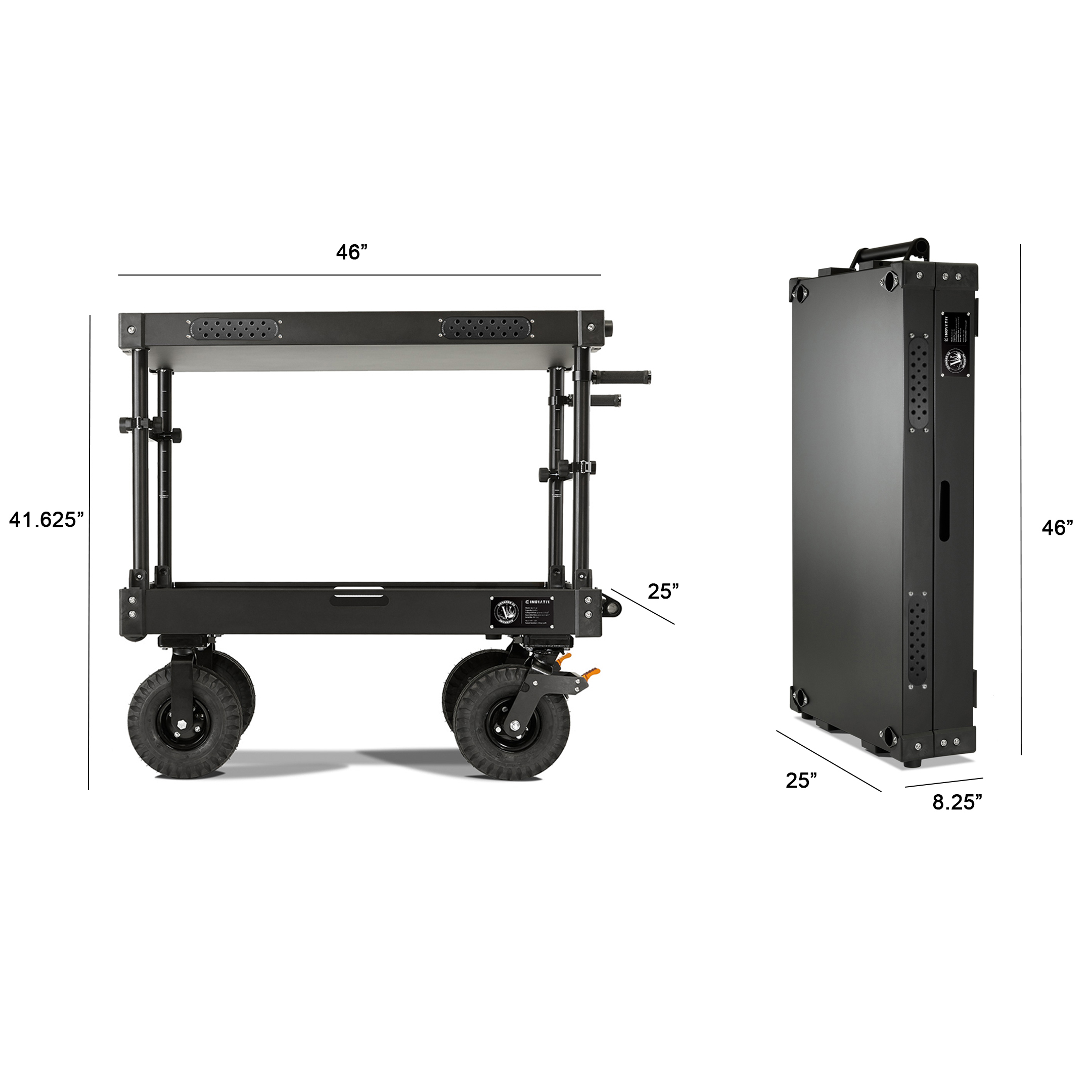

Measurement Guide
| A. Total Height |
| B. Work Surface Height |
| C. Height Between Shelves |
| D. Height Between Shelves with Top Drawer Installed |
| E. Clearance Between Bottom Lip and Top Shelf |
| F. Clearance Between Bottom Lip with Top Drawer Installed |
| G. Ground Clearance |
| H. Top Shelf Area |
| I. Bottom Shelf Area |
| J. Bottom Shelf Volume |
| K. Bottom Shelf Volume with Top Drawer Installed |
Voyager NXT Specifications
| Voyager 36 NXT | Voyager 42 NXT | |
| Product Weight | 86 lb | 88 lb |
| Payload Capacity | 600 lb | 600 lb |
| Total Height | 41.63 In. (105 cm) | 41.63 In. (105 cm) |
| Work Surface Height | 38.75 in. (98 cm) | 38.75 in. (98 cm) |
| Height Between Shelves | 25 in. (63 cm) | 25 in. (63 cm) |
| Height Between Shelves with Top Drawer Installed | 21.5 in. (54 cm) | 21.5 in. (54 cm) |
| Clearance Between Bottom Lip and Top Shelf | 25.5 in. (64 cm) | 25.5 in. (64 cm) |
| Clearance Between Bottom Lip with Top Drawer Installed | 18 in. (45 cm) | 18 in. (45 cm) |
| Ground Clearance | 12.13 in. (30 cm) | 12.13 in. (30 cm) |
| Top Shelf Area | 34.94 in. L x 23.25. in W (88 cm L x 59 cm W) | 41 in. L x 23.25 in. W (104 cm L x 59 cm W) |
| Bottom Shelf Area | 32 in. L x 23.13 in. W (81 cm L x 59 cm W) | 37.88 in. L x 23.19 in. W (96 cm L x 59 cm W) |
| Bottom Shelf Volume | 32 in. L x 23.13 in. W x 25 in. H (81 cm L x 59 cm W x 63 cm H) | 37.88 in. L x 23.13 in. W x 25 in. H (96 cm L x 59 cm W x 63 cm) |
| Bottom Shelf Volume with Top Drawer Installed | 32 in. L x 23.13 in W x 21.5 in H (81 cm L x 59 cm W x 54 cm) | 37.88 in. L x 23.13 in W x 21.5 in H (96 cm L x 59 cm W x 54 cm) |
| Assembled Dimensions | 40 in. L x 25 in. W x 41.63 in. H (101 cm L x 63 cm W x 105 cm H) | 46 in. L x 25 in. W x 41.63 in. H (116 cm L x 63 cm W x 105 cm H) |
| Packed Dimensions | 40 in. L x 25 in. W x 8.25 in. H (101 cm L x 63 cm W x 20 cm H) | 46 in. L x 25 in. W x 8.25 in. H (116 cm L x 63 cm W x 20cm H) |
Recommended product
Part No: VN 0036-IN
Voyager 36 NXT WorkstationThe Voyager NXT is a fully collapsible mobile workstation that comes equipped with removable 10 in. wheels. The 4-Sided Top Shelf features integrated threaded accessory rail plates throughout, providing a secure, versatile, and convenient work surface.
