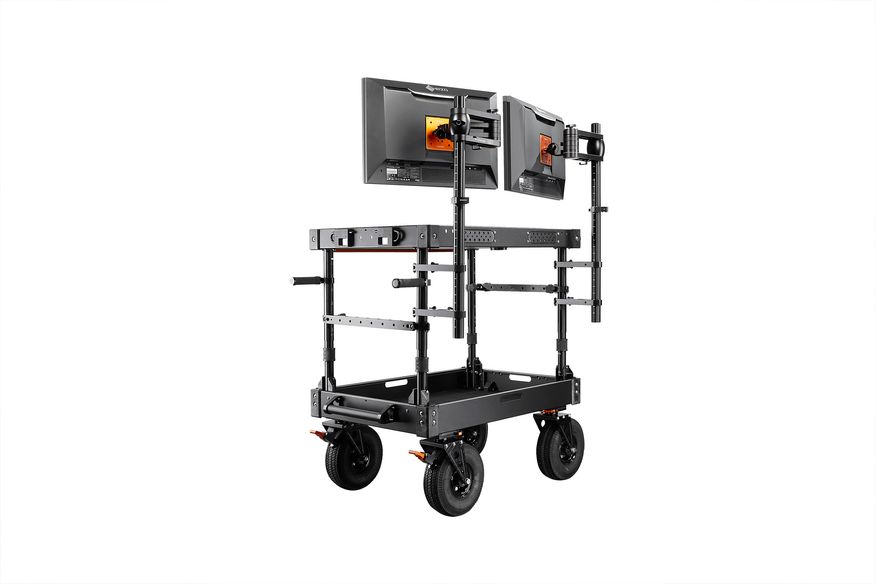

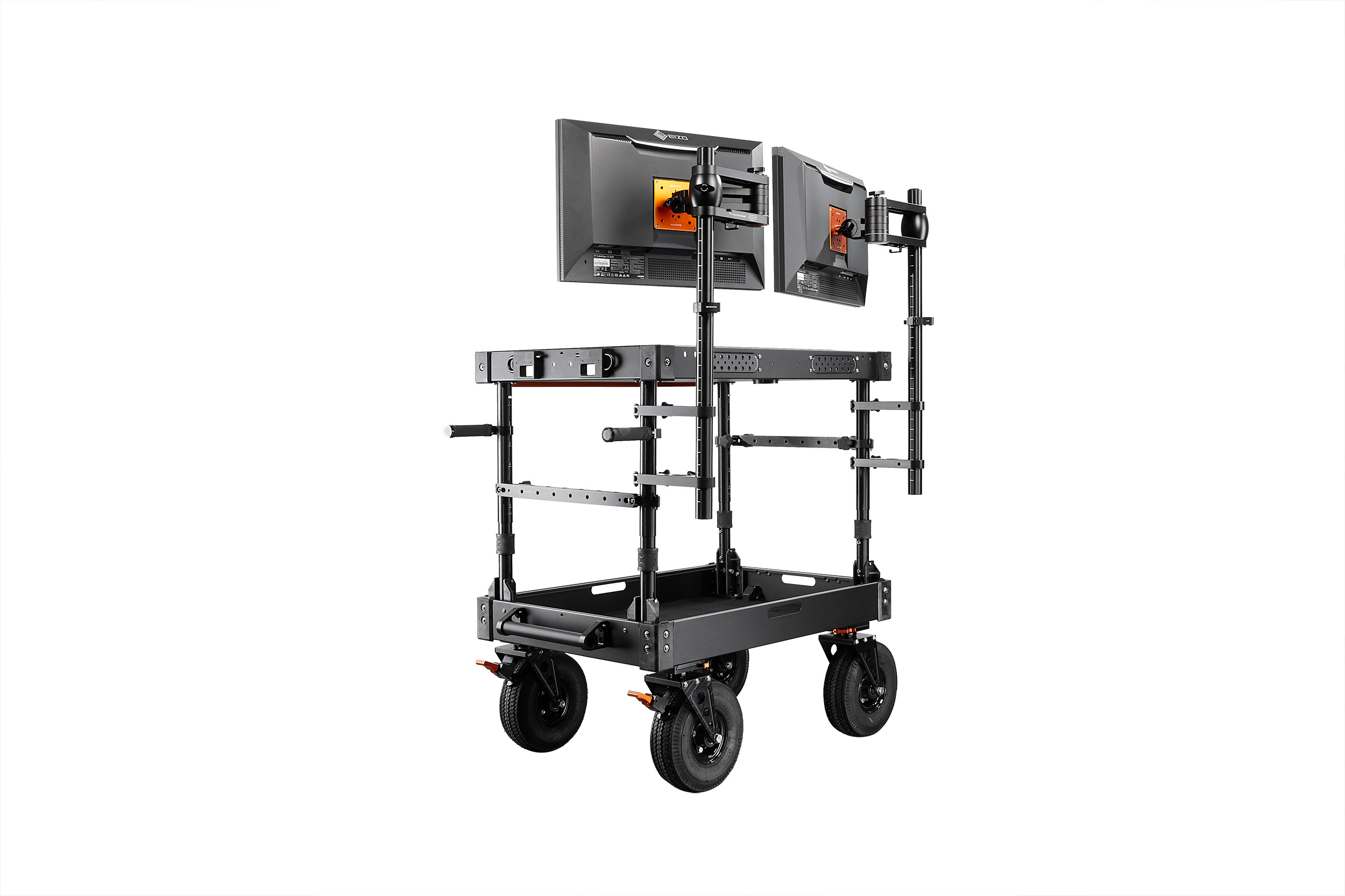

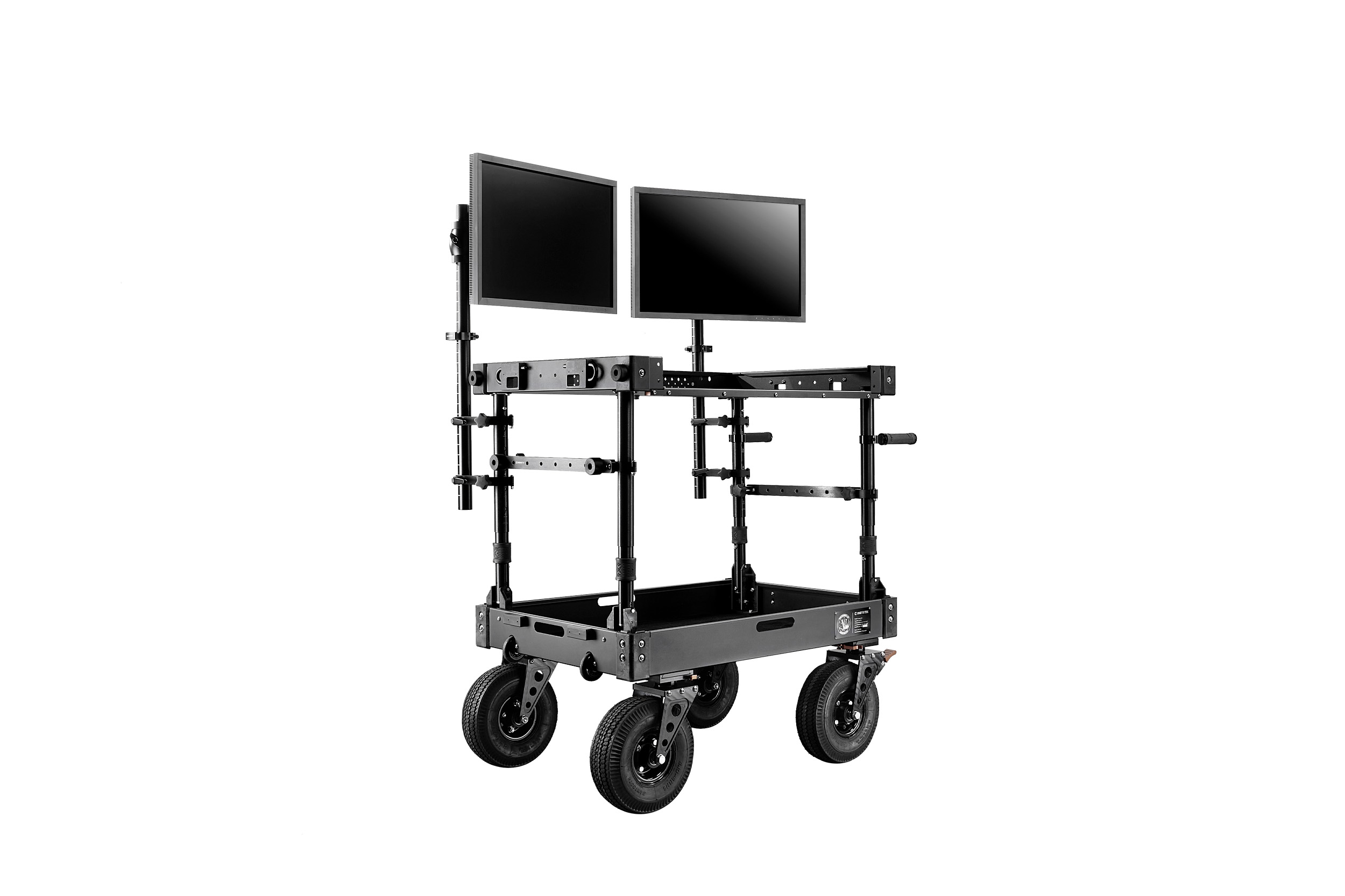

Workstation Monitor Arm System (VESA Compliant) is a locking monitor arm system compatible with our full range of cart workstations via both 100 x 100mm and 75 x 75mm VESA hole patterns on monitors up to 55 lbs.

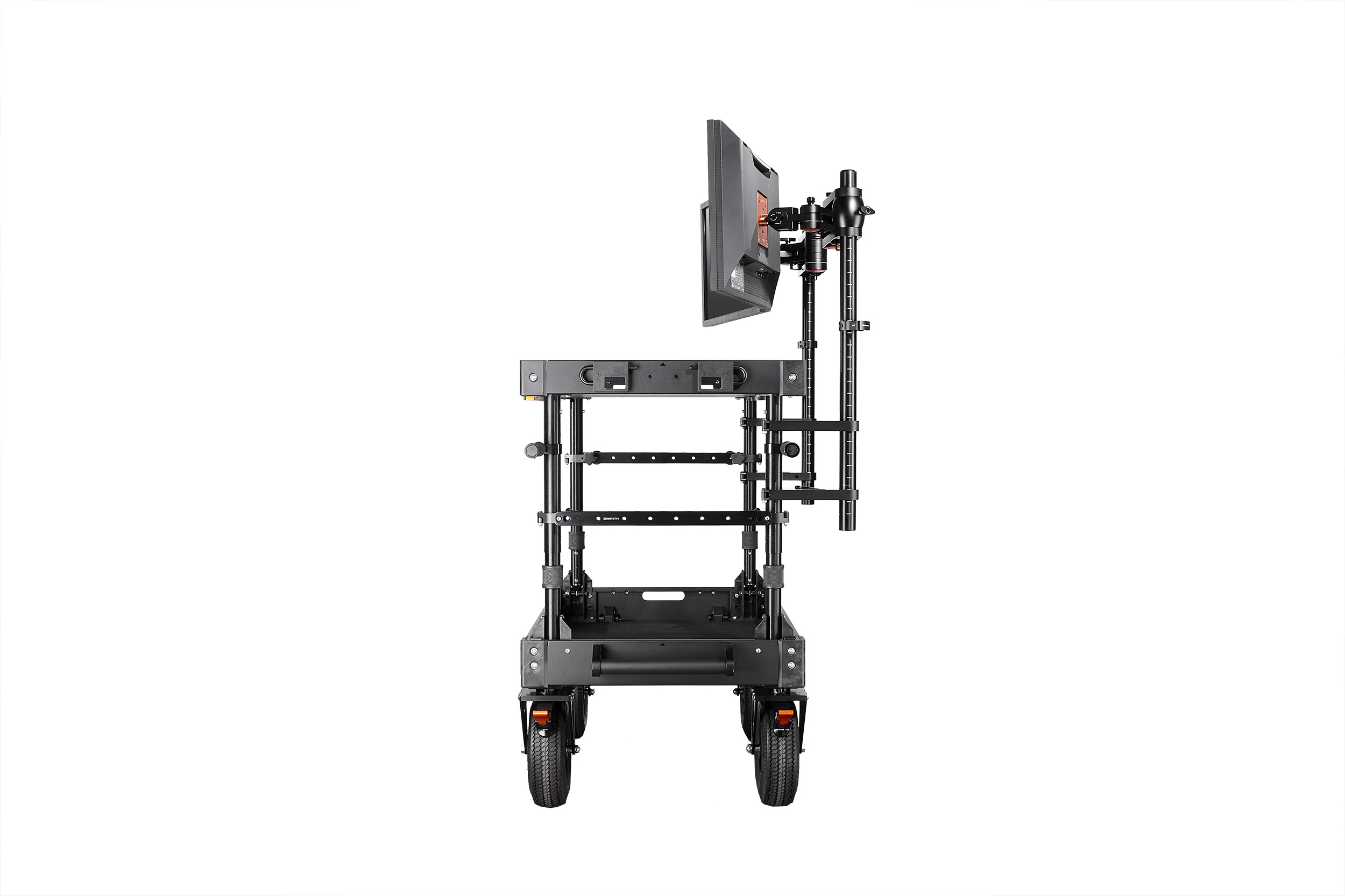

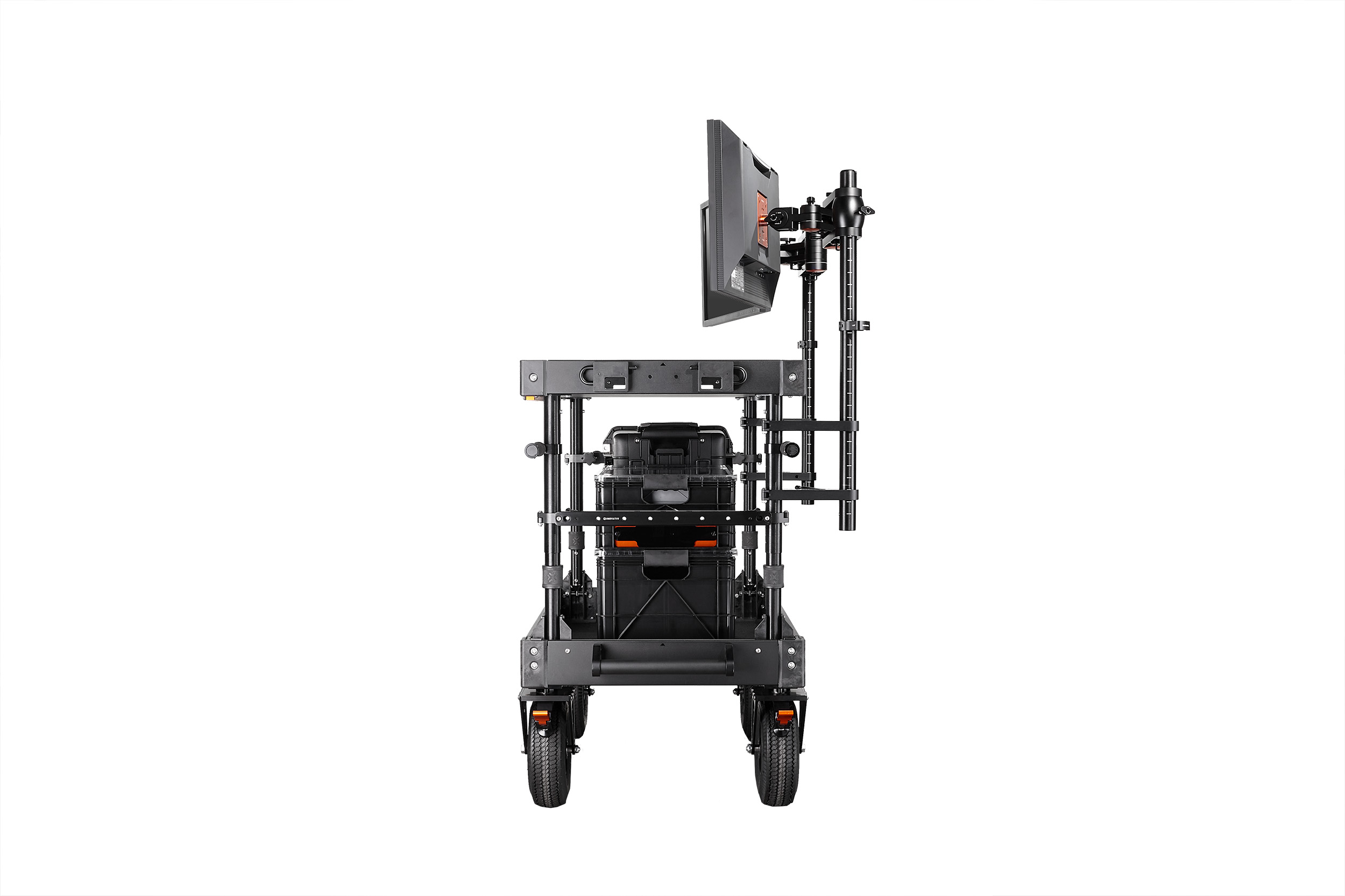

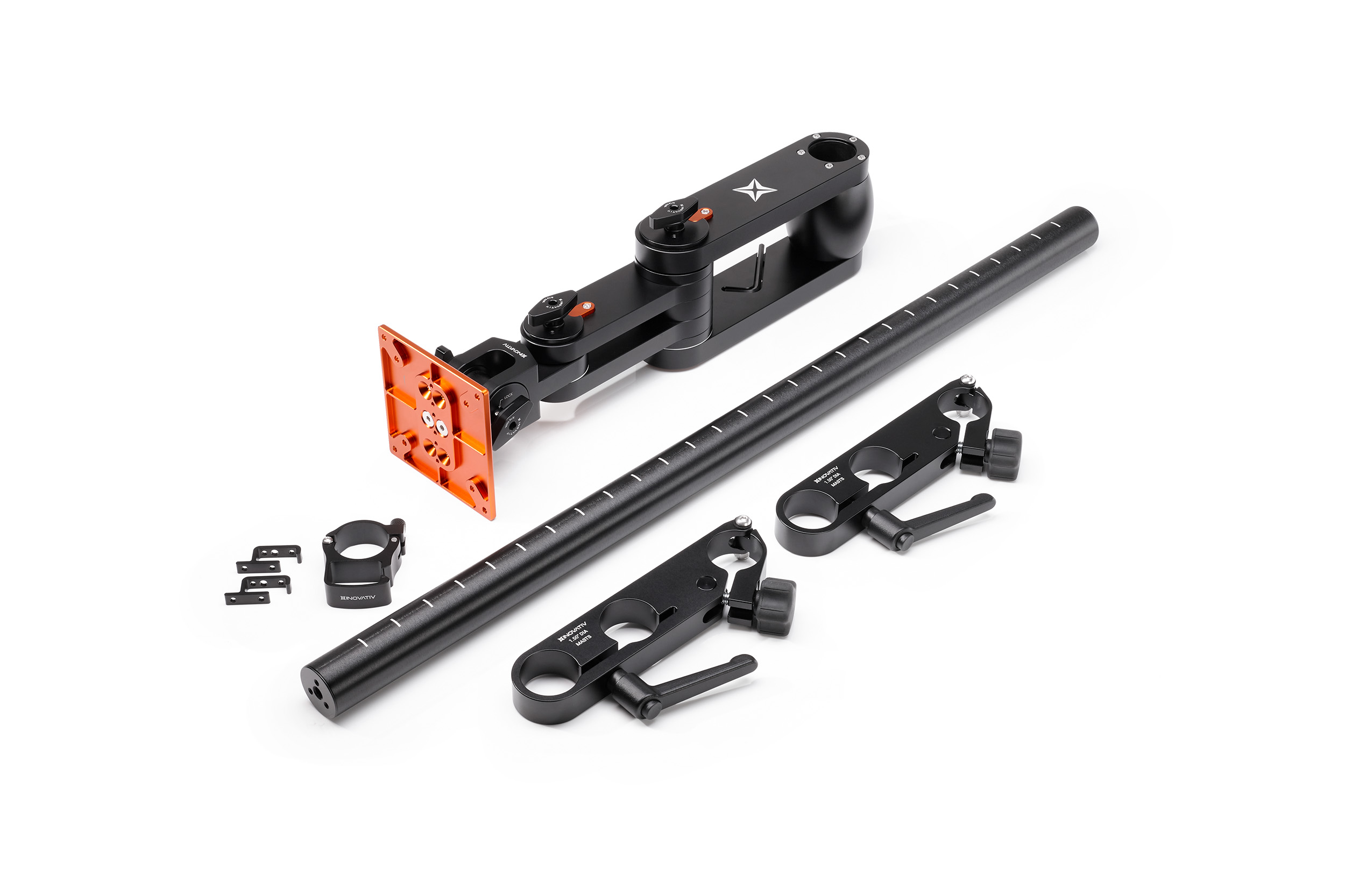

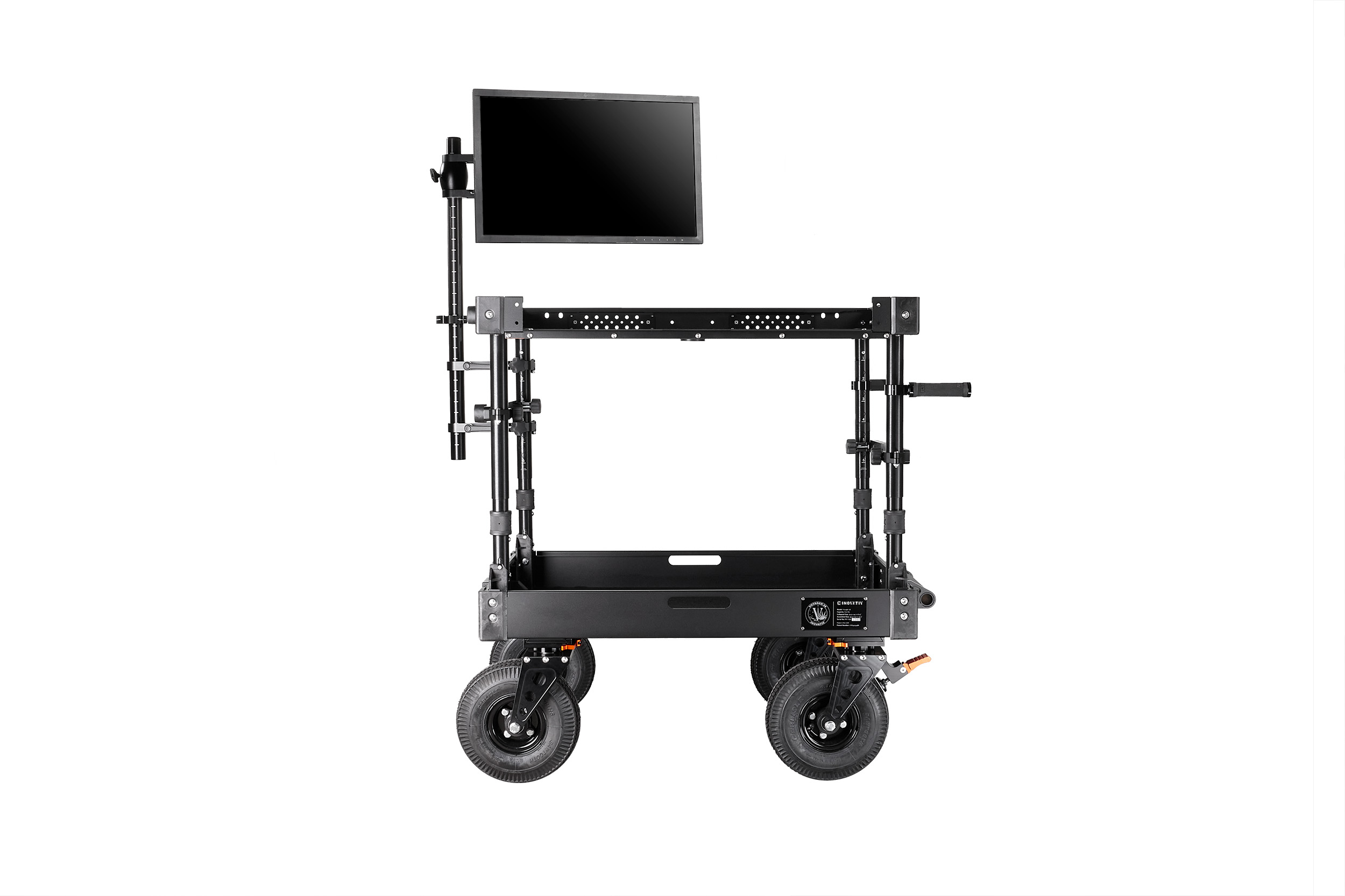

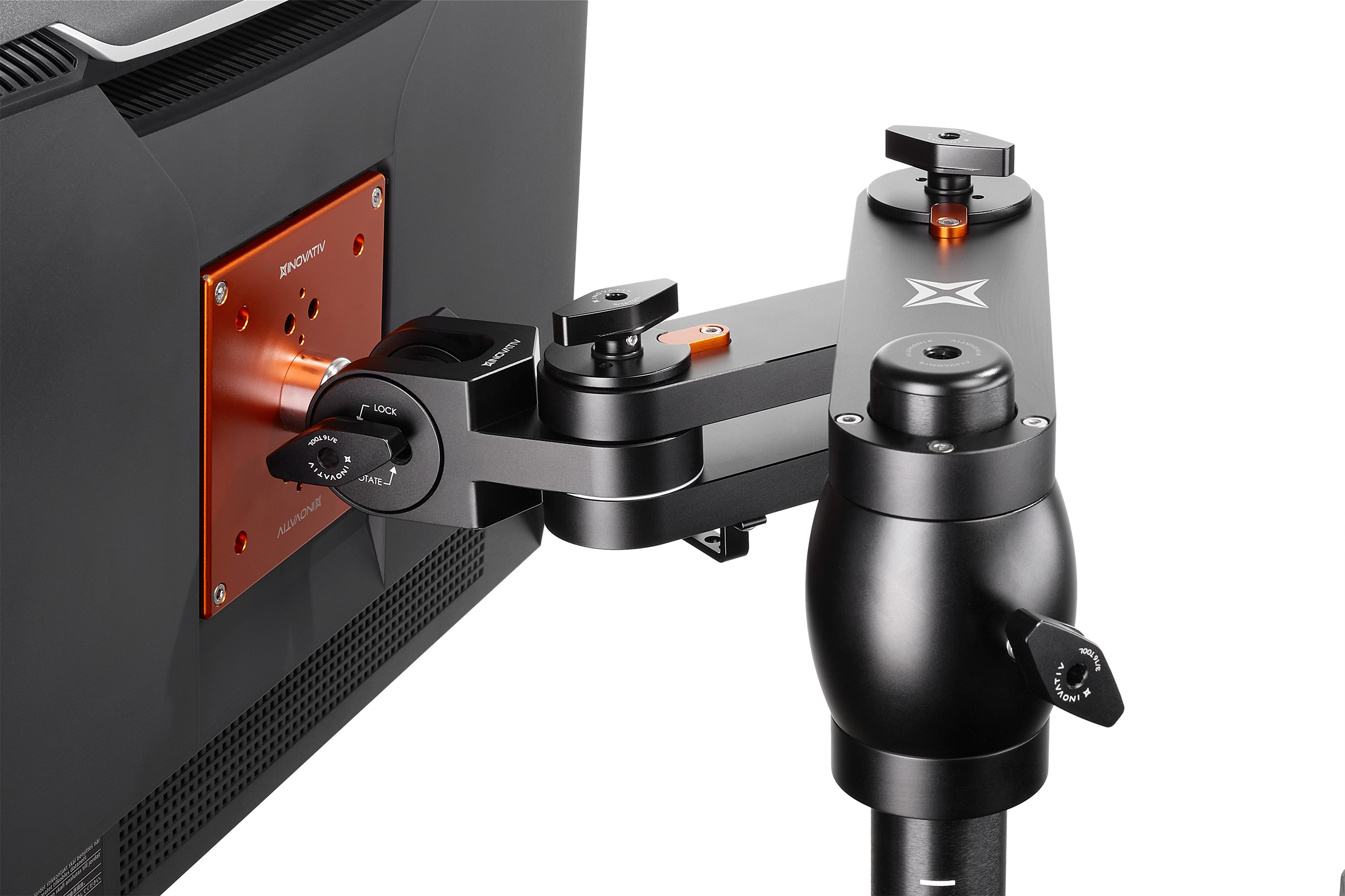

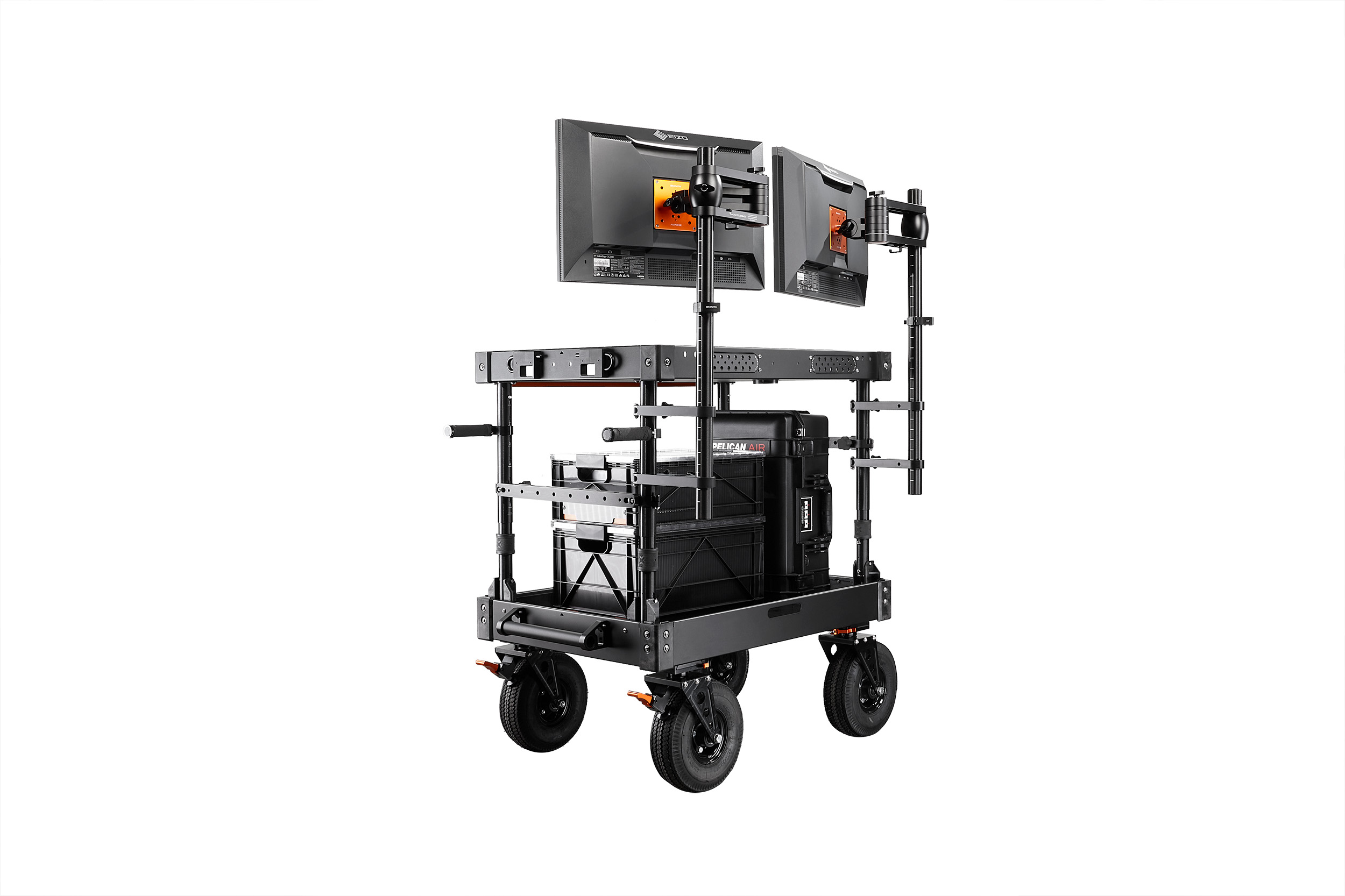

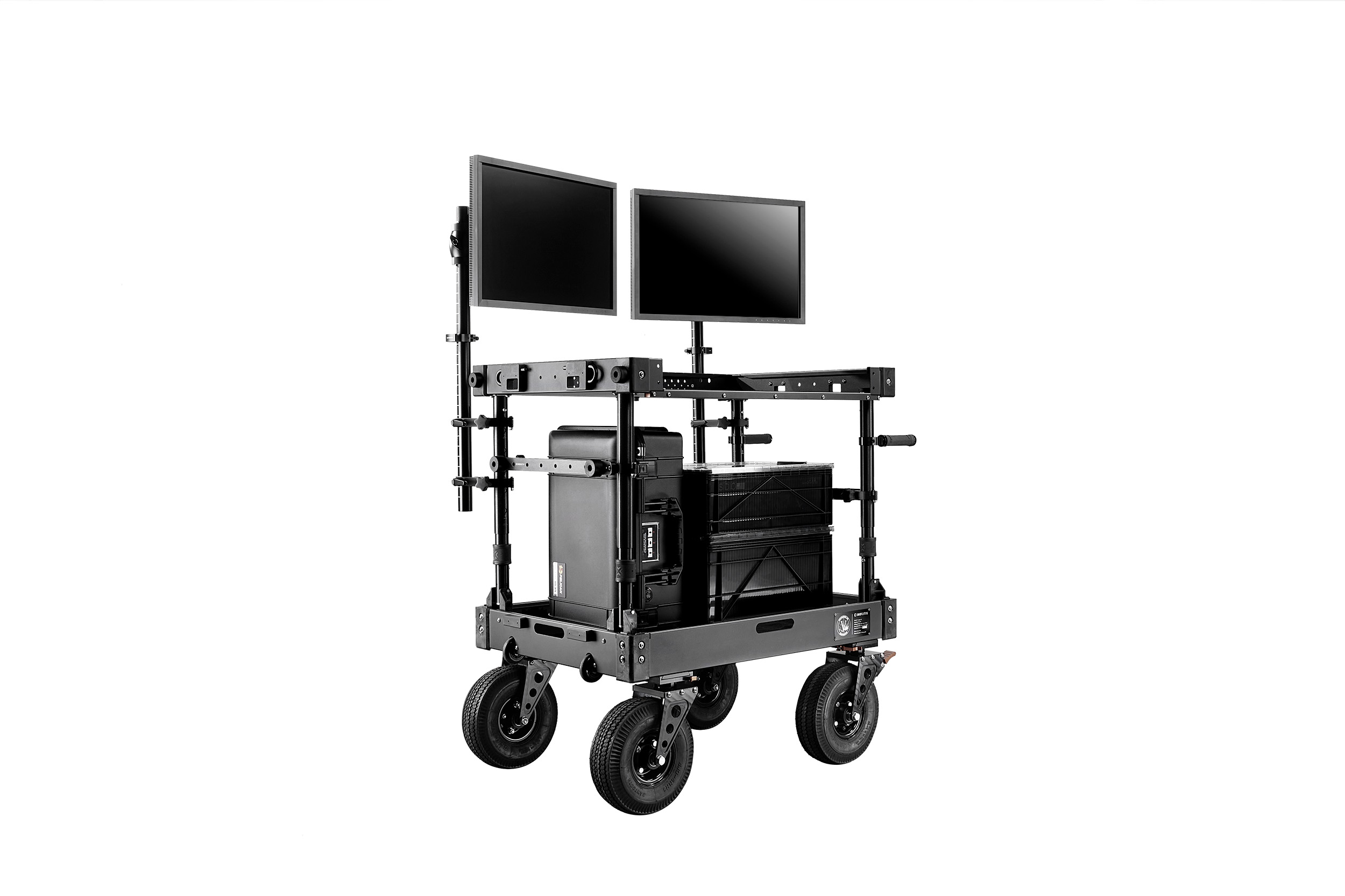

The Workstation Monitor Arm System attaches to the upright posts of any INOVATIV cart workstation without the need for tools. The Locking Monitor Arm features two locking rosette joints for secure monitor positioning designed to prevent loosening over time. The included cable management components allow users to safely organize cables and eliminate hazards.

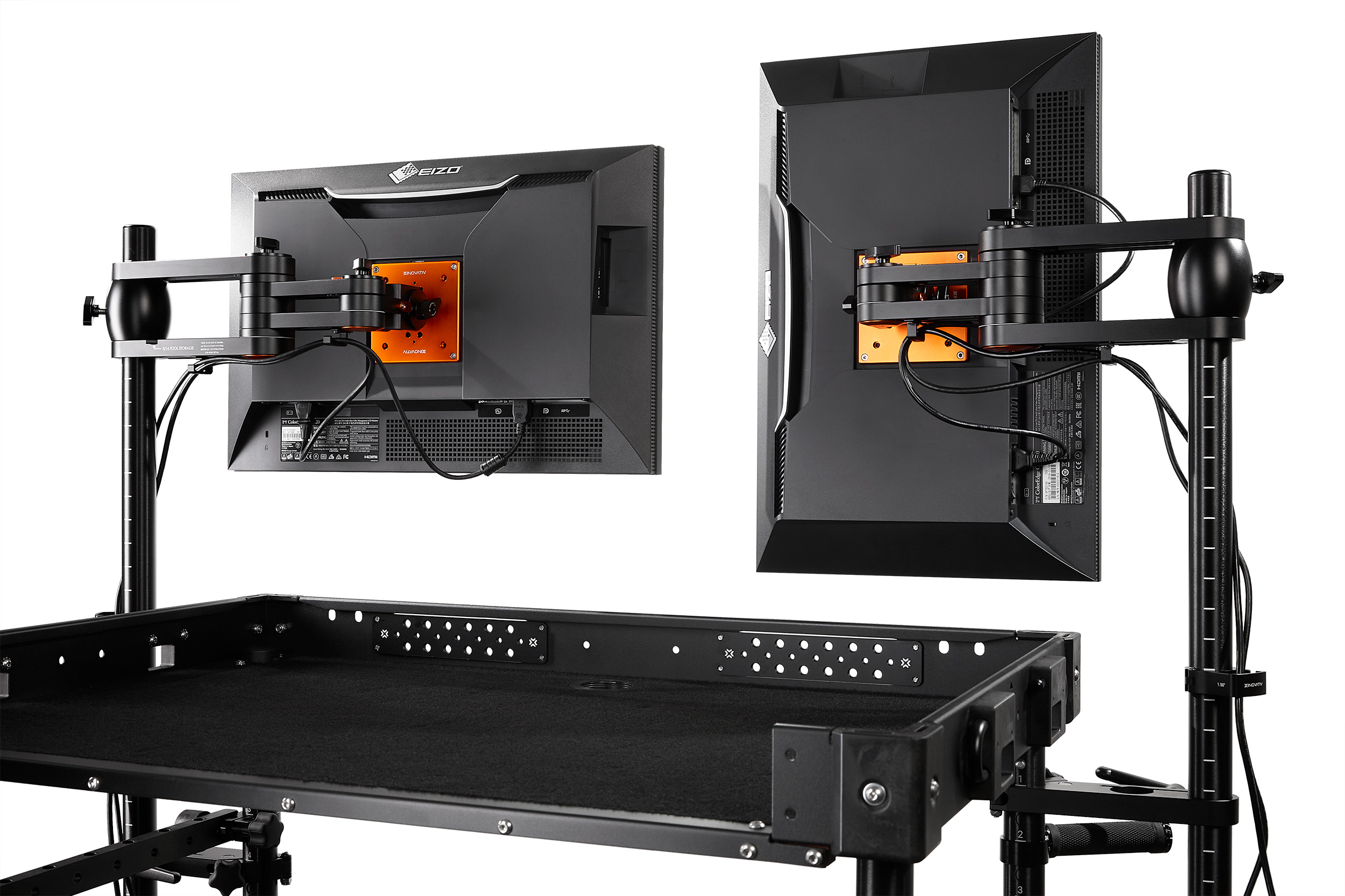

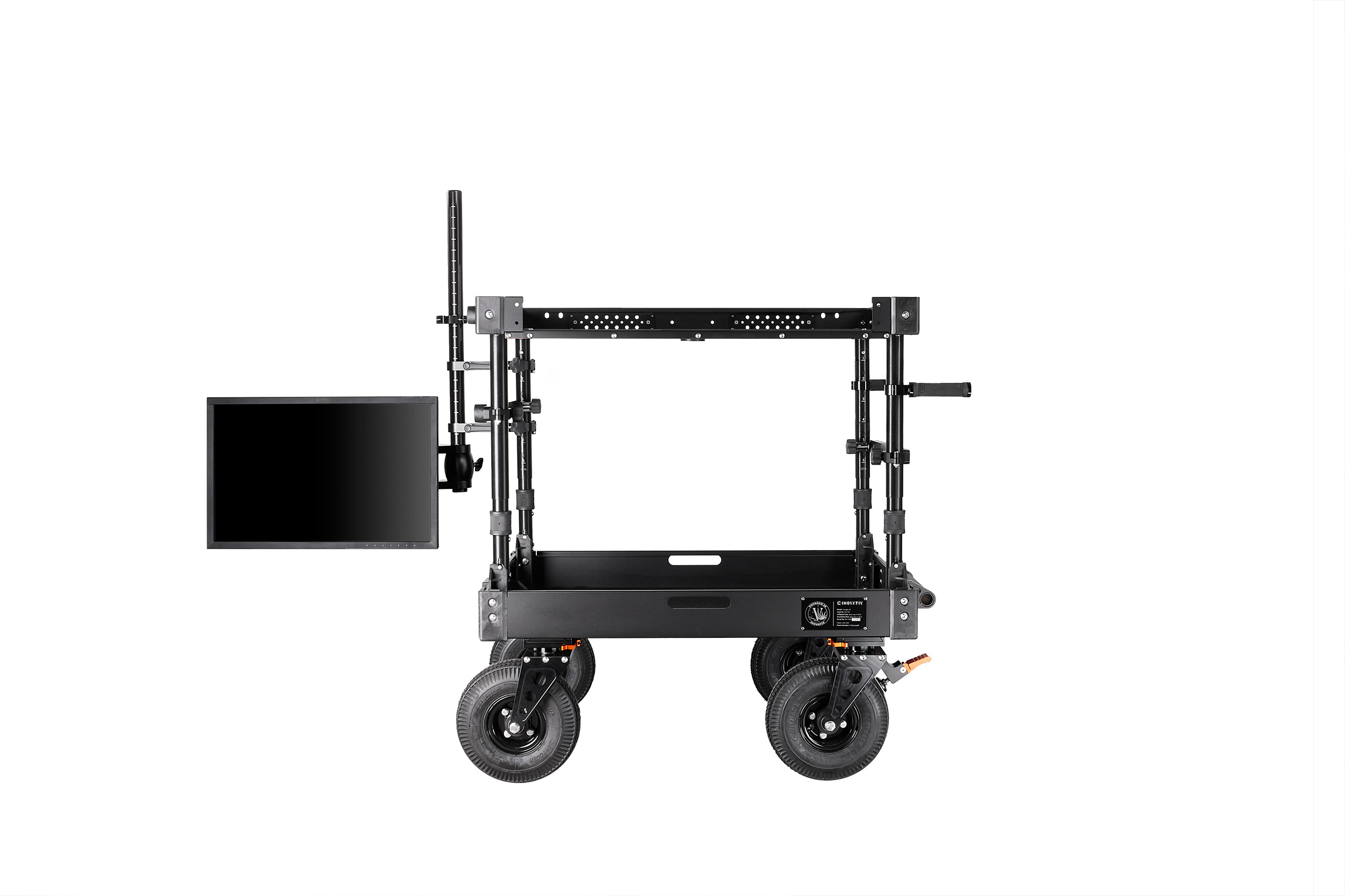

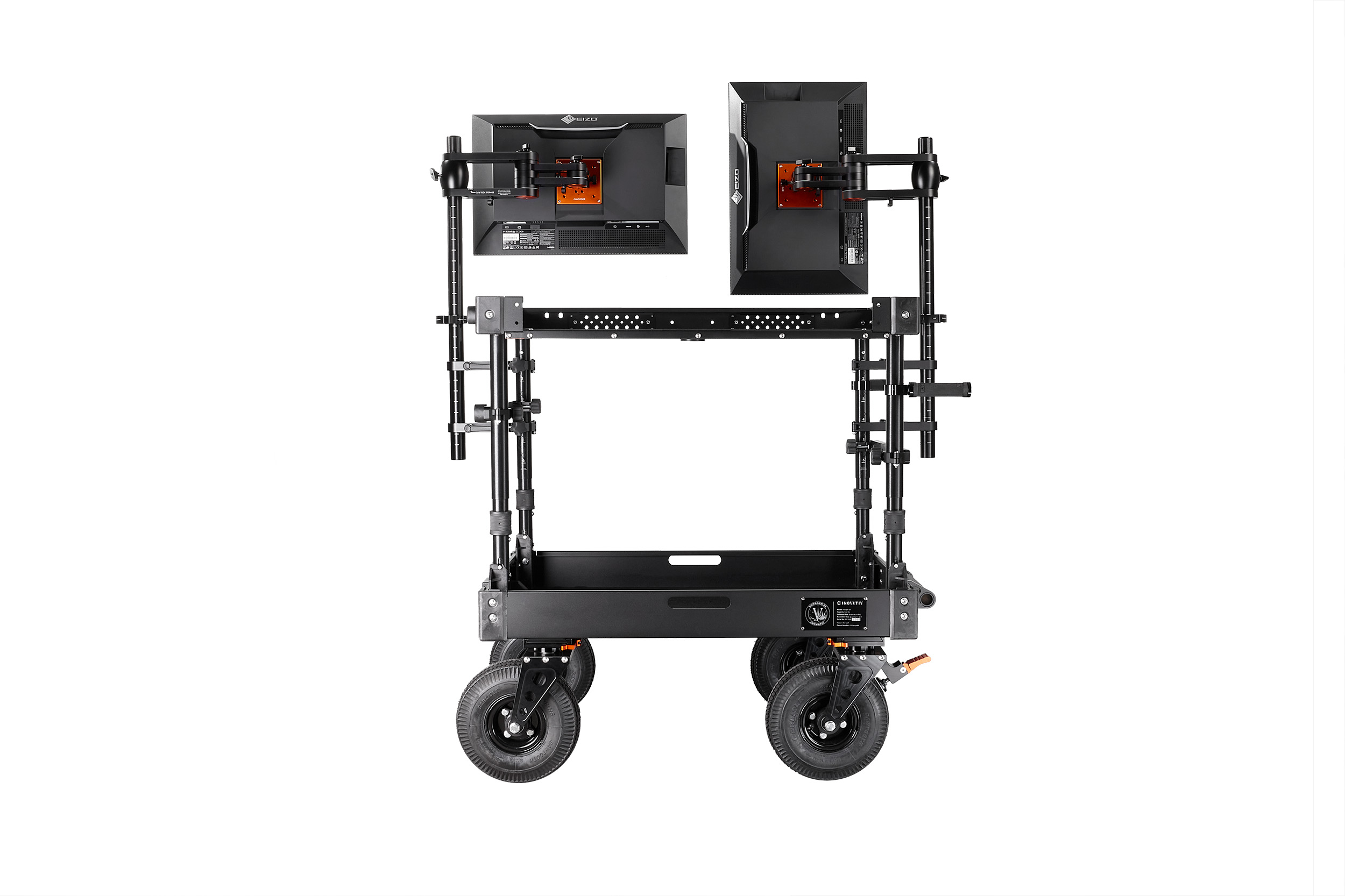

The Monitor Arm can easily be positioned to find the perfect viewing angle. Users can adjust the height of the monitor along the length of the vertical post. Or, pivot on the post for side-to-side adjustment. Locking rosette joints provide two points of horizontal articulation for moving the monitor closer or relocating it out of the way. The VESA compliant monitor plate provides smooth 360° rotation as well as pan and tilt adjustability, with the option to lock the monitor in either landscape or portrait orientation.
The Workstation Monitor Arm System (VESA Compliant) replaces our previous monitor arm solutions, the BOA and Sidewinder.
Dimensions
- Maximum Reach: 16.5 in. (41.91 cm)
- Post Diameter: 1.5 in. (3.81 cm)
- Post Length: 31.5 in. (80 cm)
- Fully Extended Arm: 18.50 in. L x 4.50 in. W x 5.25 in. H
- Collapsed Arm: 10.75 in. L x 6.75 in. W x 5.25 in. H
- System Dimensions: 18.50 in. L x 4.50 in. W x 31.50 in. H
Weight and Capacity
- Payload Capacity: 55 lbs. (24.94 kg)
- Arm Weight: 5.8 lbs. (2.63 kg)
- System Weight: 11 lbs. (4.9 kg)
Construction
- Durable 6061 T6 Aluminum
- Corrosion Resistant Stainless Steel Hardware
