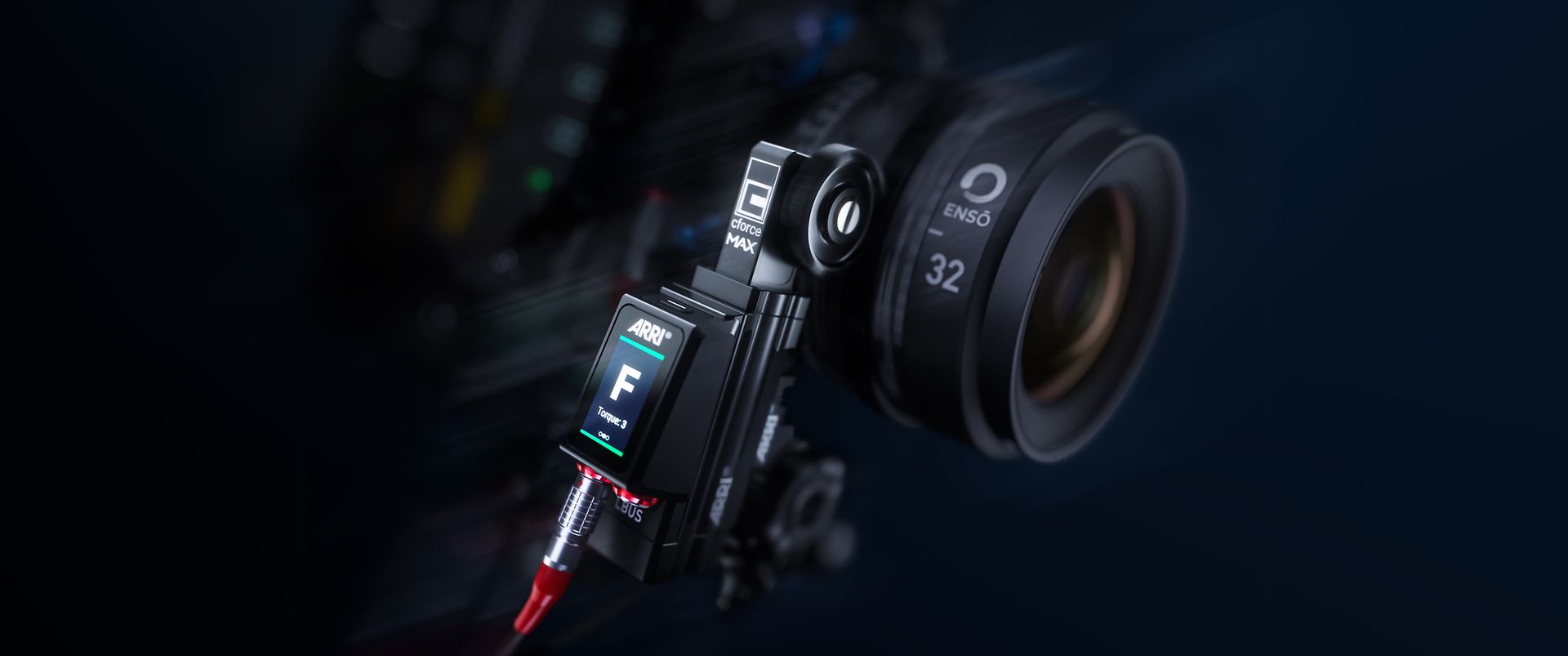

Super-responsive brushless motor with integrated touchscreen interface, designed for larger cine primes, zoom lenses, vintage glass, and specialty optics that require both strength and precision.
With a high speed of up to 400 teeth per second and market-leading latency, it is also ideally suited for focus tracking systems. Dual LBUS ports enable seamless daisy-chaining and flexible system integration.
The motor comes with the highly adjustable Motor Rod Clamp MRC-1 19mm, providing a robust and reliable connection to lens gears.
includes:

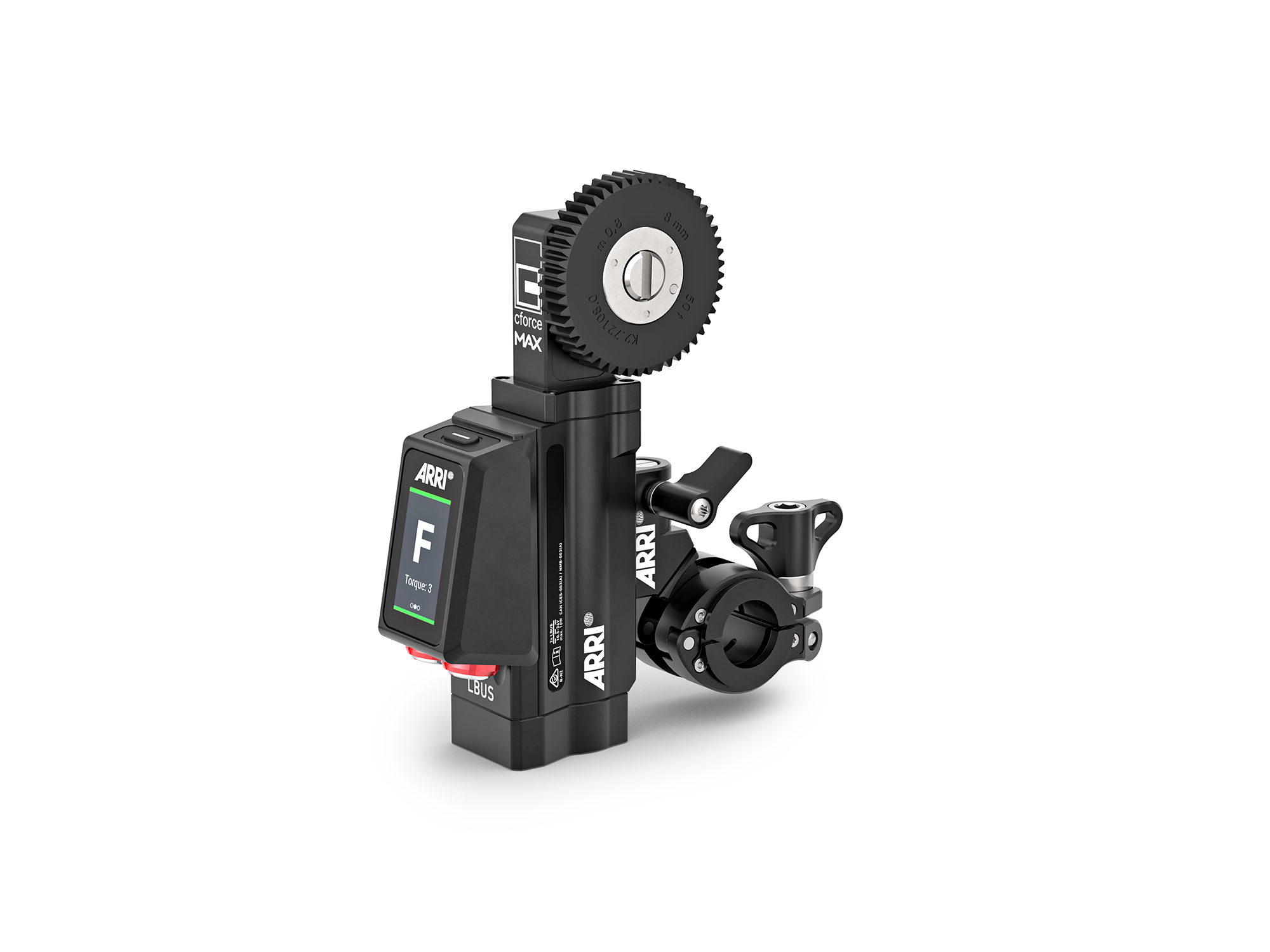

K2.0055211 1x cforce MAX Motor Unit
K2.0053386 1x Motor Rod Clamp MRC-1 19mm
K2.72108.0 1x CLM-4/cforce Gear m0.8/32p, 50t
Note: LBUS motor cables need to be ordered separately.

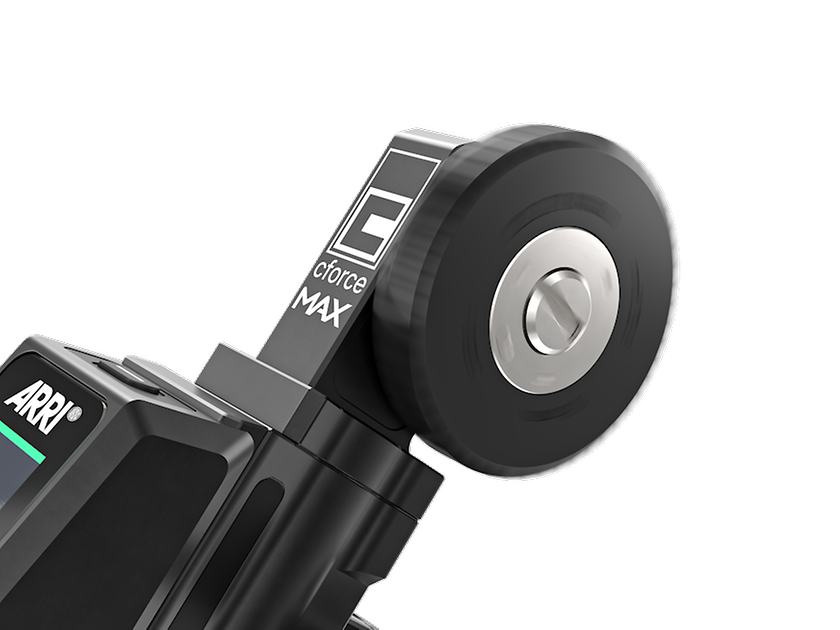

MAX speed
- Market-leading low latency
- Speeds of up to 400 teeth per second
- Advanced brushless motor
- Ideal for focus tracking systems
MAX power

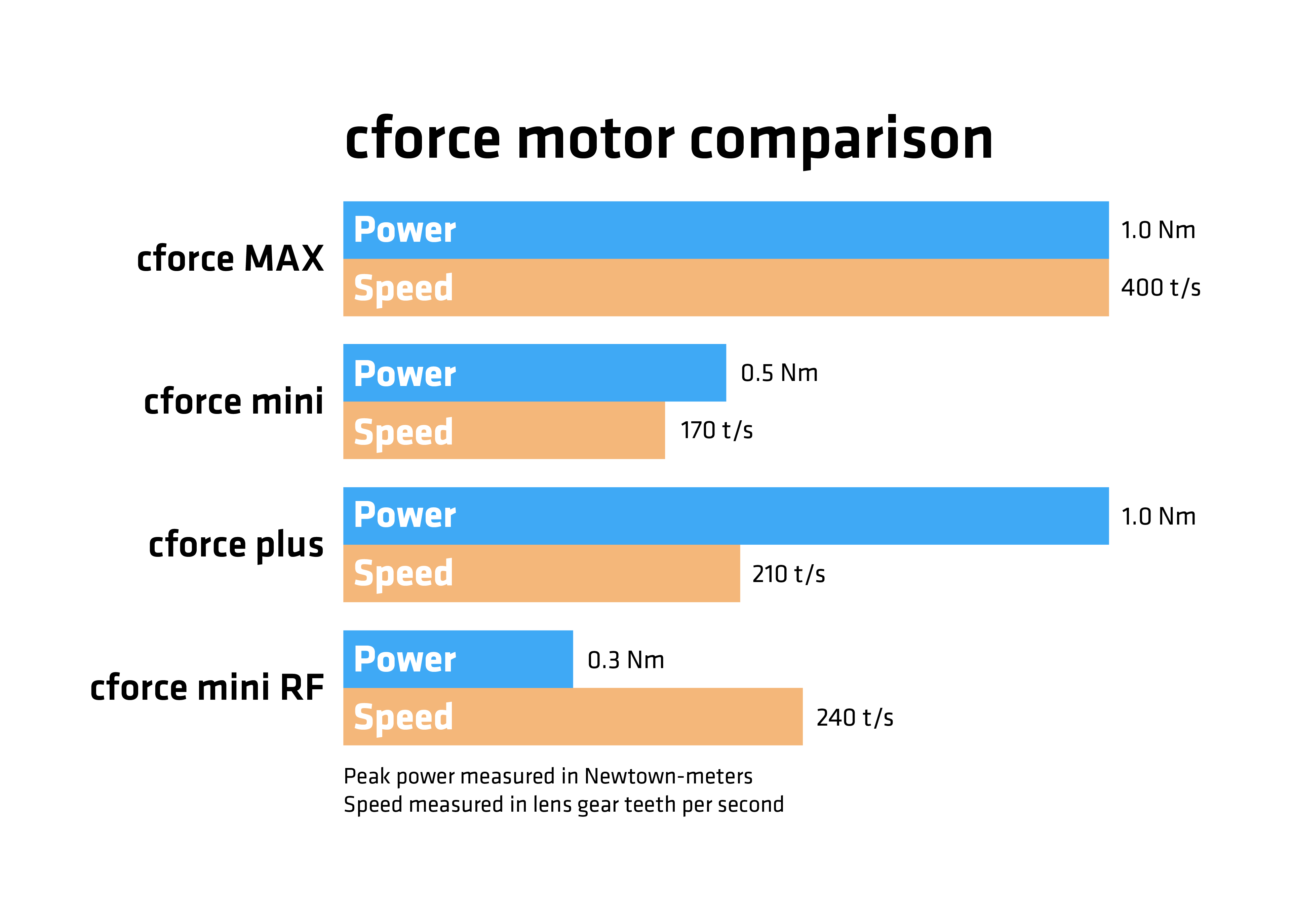

- Twice as strong and twice as fast as the cforce mini, and only 15% bigger
- Twice as fast as the cforce plus, yet 15% smaller and lighter

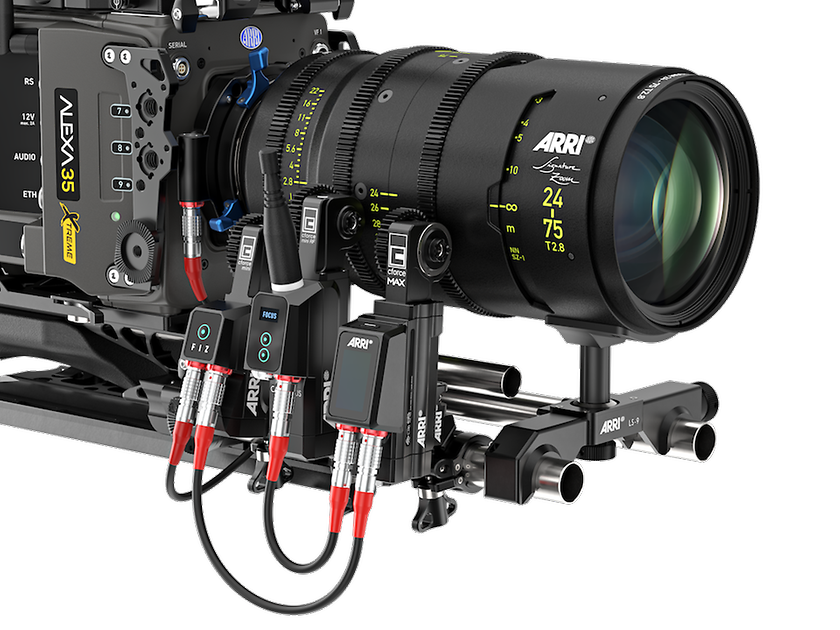

- Ideal for large cine primes, zoom lenses, vintage glass, and specialty optics
MAX control

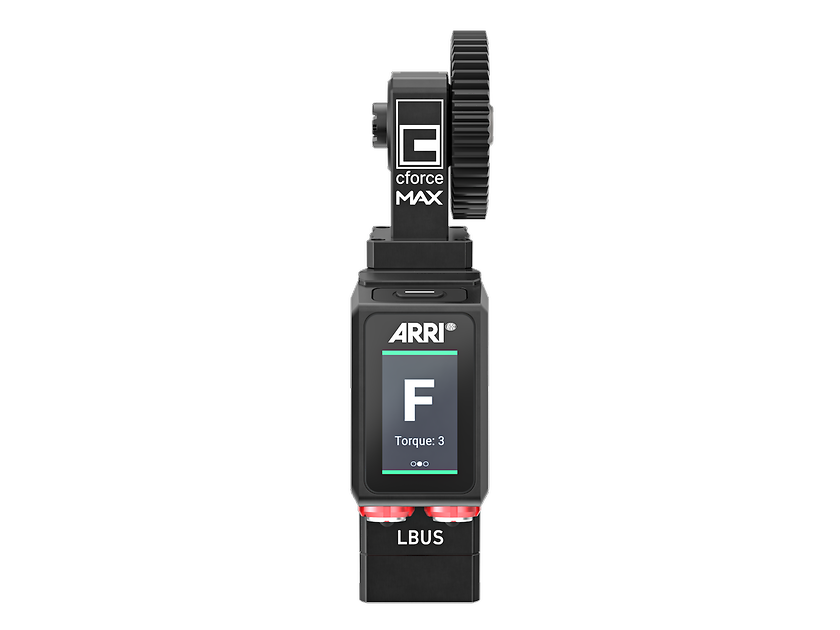

- Integrated touchscreen interface and physical soft touch button
- Intuitive setup, configuration, and status monitoring
- Supports manual calibration and fourth auxiliary access control
- Customizable display with future expandability
MAX connectivity

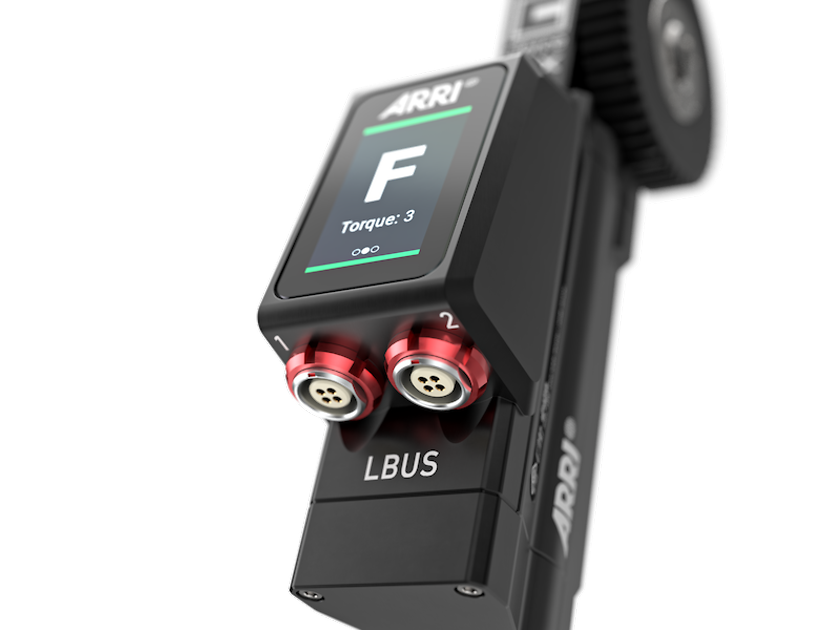

- Dual LBUS ports for seamless daisy-chaining
- LBUS backwards compatibility
- Usable with most ARRI mounting brackets, rods, and drive gears
MAX versatility

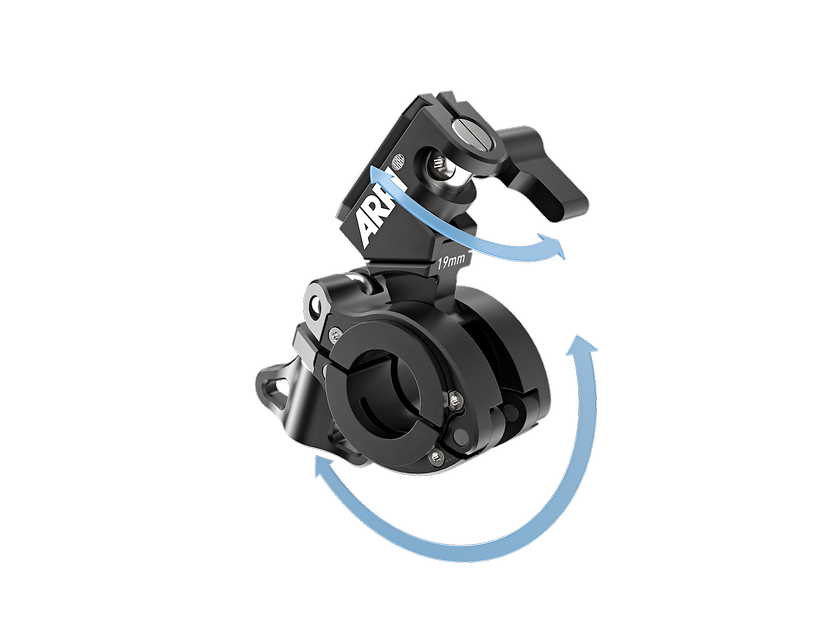

- Accompanying Motor Rod Clamp MRC-1 provides rock-solid connection
- Easy adjustment on 19 mm and 15 mm rods
- Reduced form factor ideal for handheld, gimbal, and studio configurations
