7” onboard monitor that provides full camera control and menu access for the ALEXA 35 and ALEXA Mini LF
Read more

Manufacturer

Camera Control Monitor CCM-1

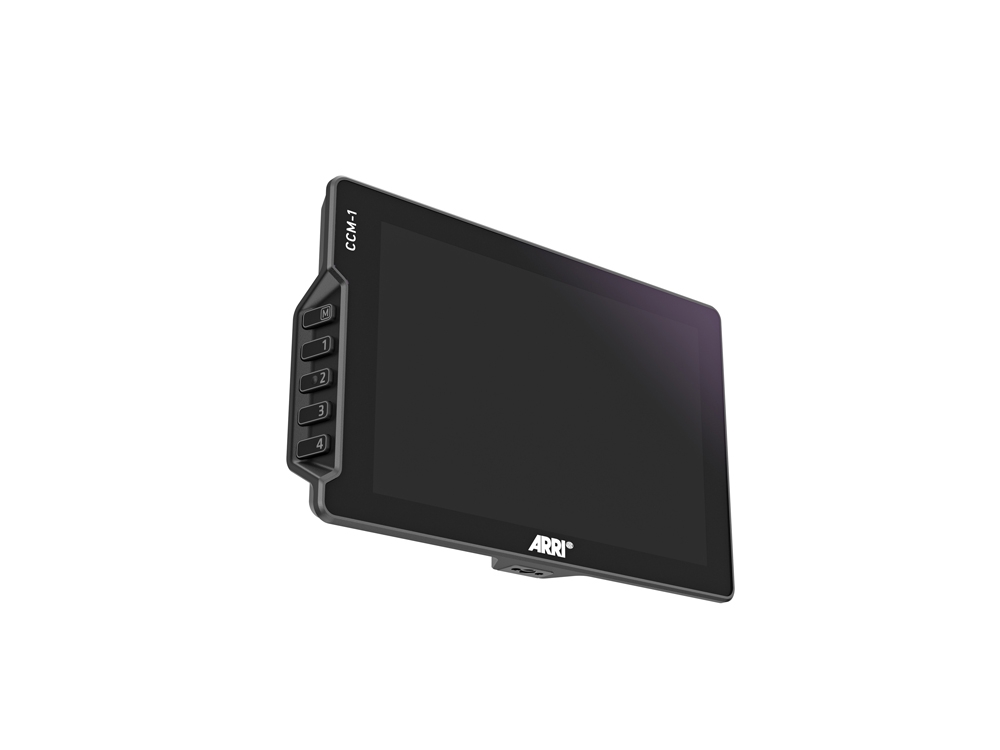

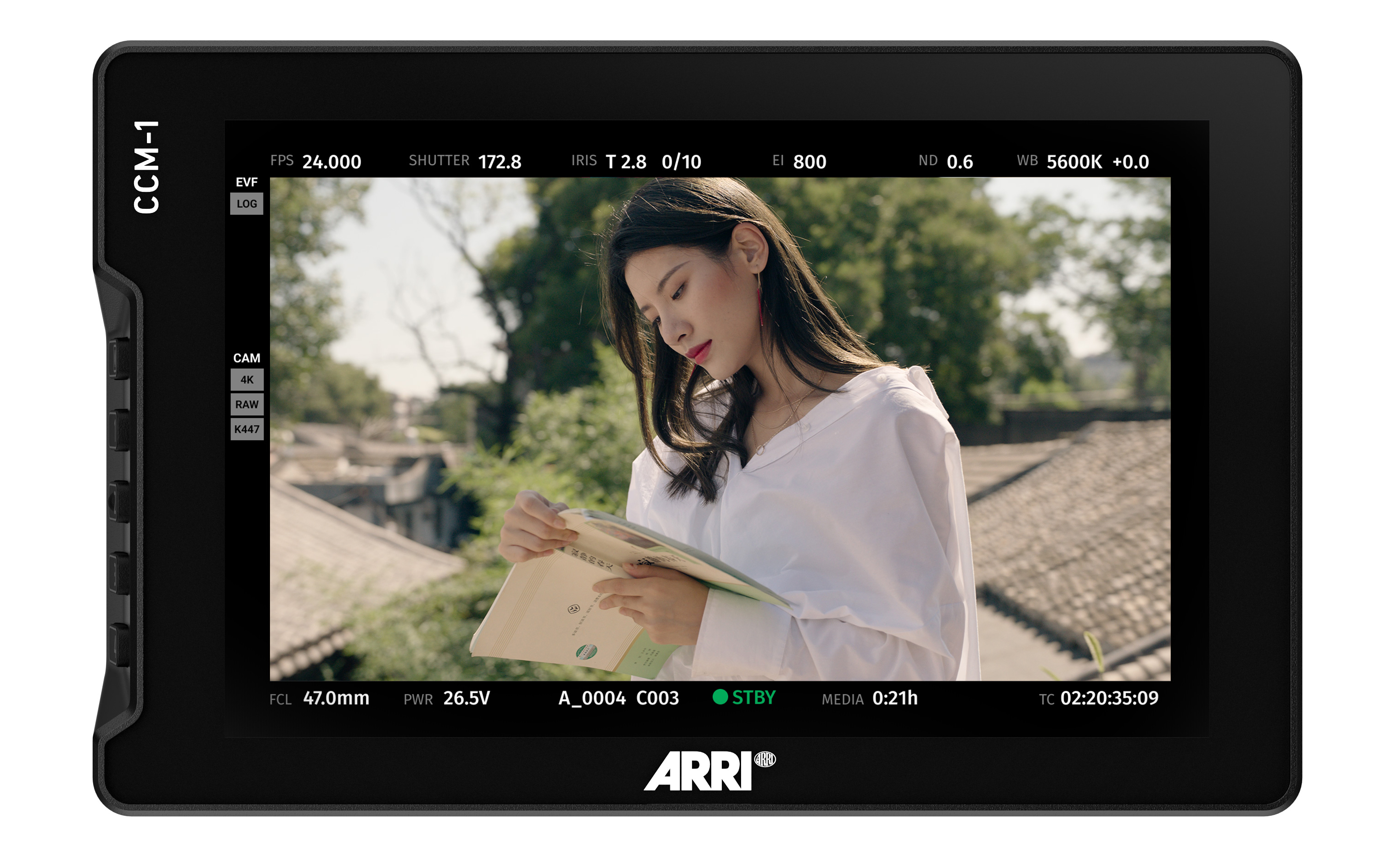

The CCM-1 is a 7” onboard monitor that provides full camera control and menu access for the ALEXA 35 and ALEXA Mini LF. It displays a bright, high-contrast HD image on its 7” IPS LCD screen that is easily viewable in daylight from a range of viewing angles. Like the tried and trusted MVF-2, it connects via the camera’s VF connector and provides an image that faithfully conveys the accuracy and subtlety of ARRI color management. The CCM-1 provides an alternative control, menu, and image interface to the MVF-2 viewfinder, which it can either replace entirely or work alongside. All functions are adjustable via the touchscreen or via buttons and a joystick that are positioned on one side of the monitor and can be operated with one hand, leaving the other hand free.

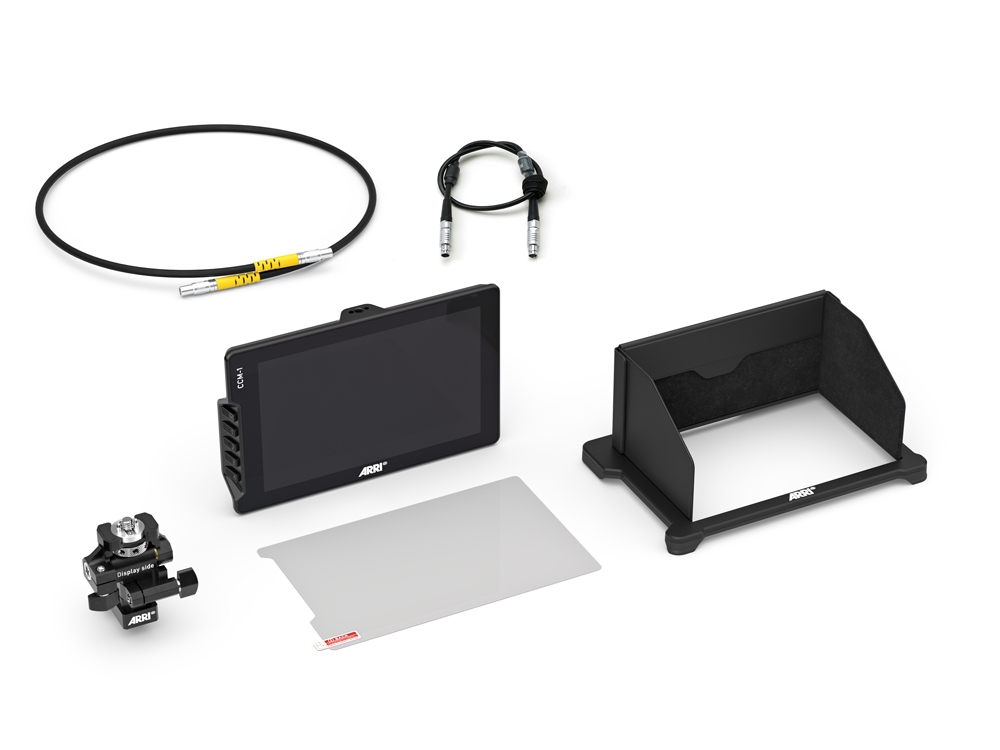

Camera Control Monitor CCM-1 Set Includes:

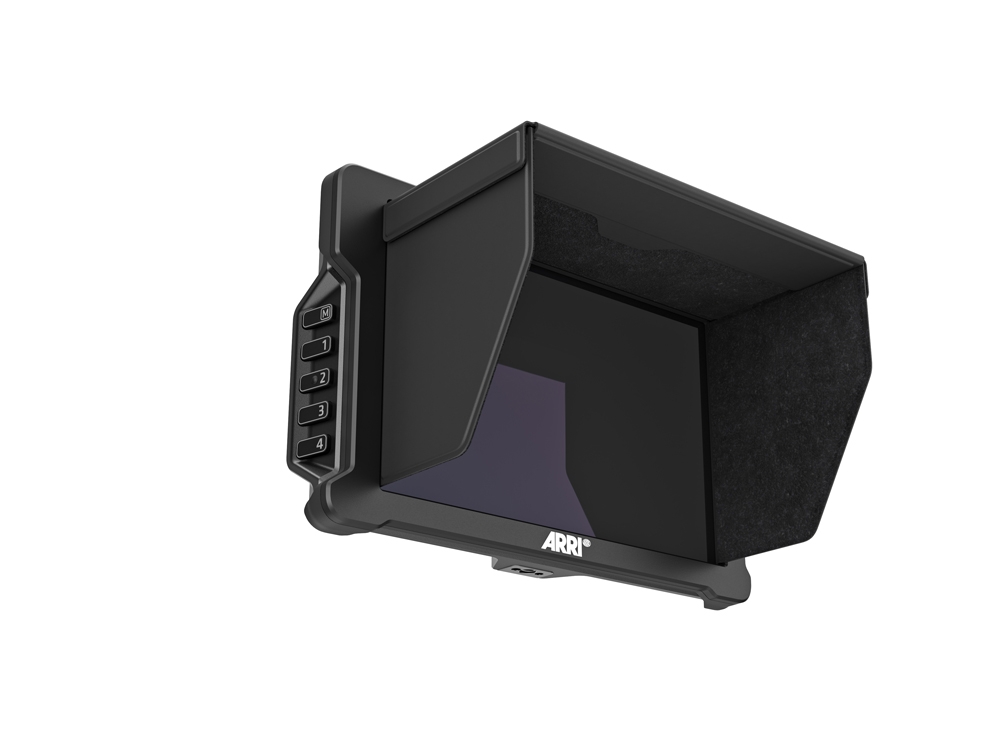

1x Camera Control Monitor CCM-1 with Foldable Sunhood, Screen Protector
K2.0048394 1x Monitor Arm for Camera MAC-1
K2.0023943 1x Cable VF (0.5m/1.5ft)
K2.0001637 1x Cable RS - RS/PWR IN (0.5m/1.6ft)

Bright display with color-accurate ARRI image quality

The CCM-1 displays a bright, high-contrast HD image on its 7” IPS LCD screen that is easily viewable in daylight from a range of viewing angles. Like the tried and trusted MVF-2, it connects via the camera’s VF connector and provides an image that faithfully conveys the accuracy and subtlety of ARRI color management.

Sensor-level monitoring functions make use of the sensor’s full resolution, for example zooming into the image for more accurate focus checking. Tools on the CCM-1 such as false color or peaking are much more user-friendly than on standard SDI-connected monitors because they affect only the image from the camera, and not the status overlays.

Status components
A live image with interactive status components allows quick access to the most frequently adjusted settings.
Changes occur in real time and can be viewed live instead of having to switch between a menu and the image.

Home screen

The familiar ARRI home screen has been updated for the larger CCM-1 display and shows all relevant camera information at a glance.
Touching one of the five main exposure parameters will take users to a live image where they can make adjustments with a real-time preview.
On the left is an overview of the user button assignments.

Camera menu
The CCM-1 provides access to the complete camera menu for adjustment of any and all camera settings.
The menu can be controlled via the touchscreen or physical buttons and offers the same, intuitive layout as the MVF-2.

Playback Control
Improved playback control is accessed via the menu or a user button.
An extended clip list can be viewed during playback and includes a handy metadata display.

Technical data


Compatibility	Full menu operation: ALEXA 35, ALEXA Mini LF
Software requirements	ALEXA 35 SUP 1.2 or later ALEXA Mini LF SUP 7.3 or later Using MVF-2 and CCM-1 simultaneously using the two VF connectors on ALEXA 35 requires ALEXA 35 SUP 1.2.1

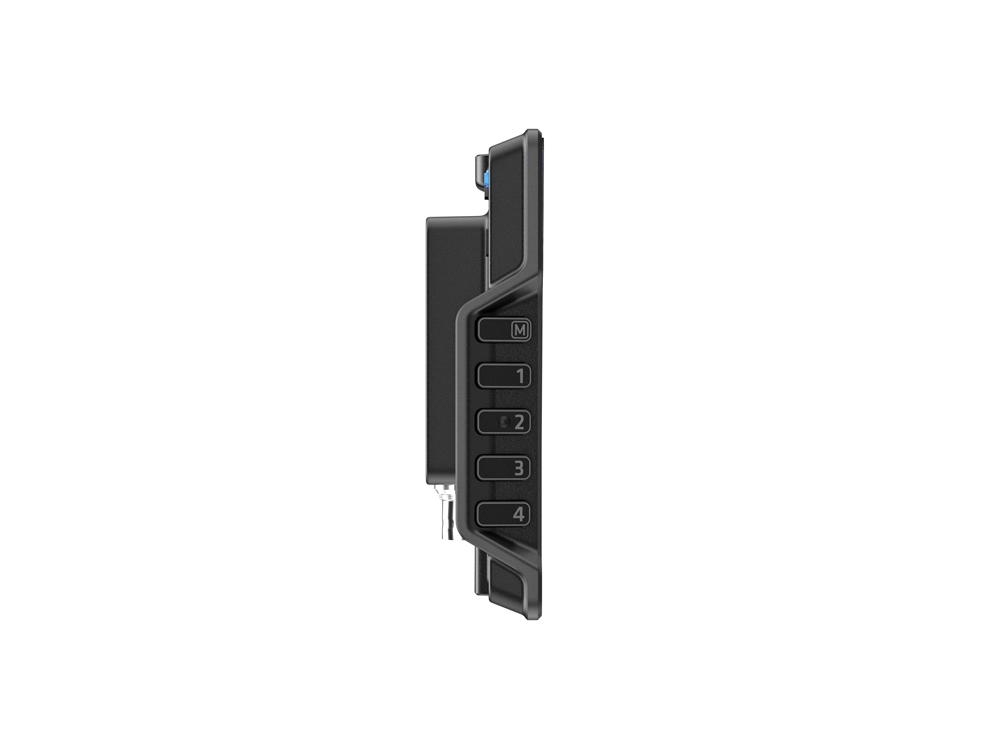

Buttons	Menu, User Button 1-4, Joystick, Back, Power, Lock slider
Control options	Touch screen or buttons and joystick

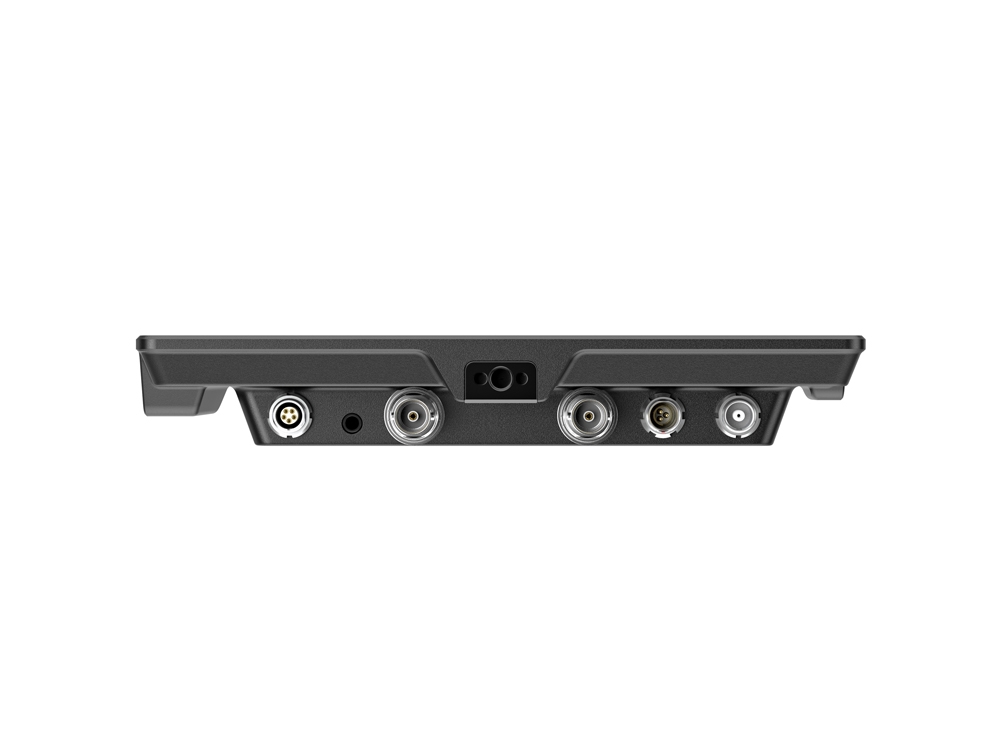

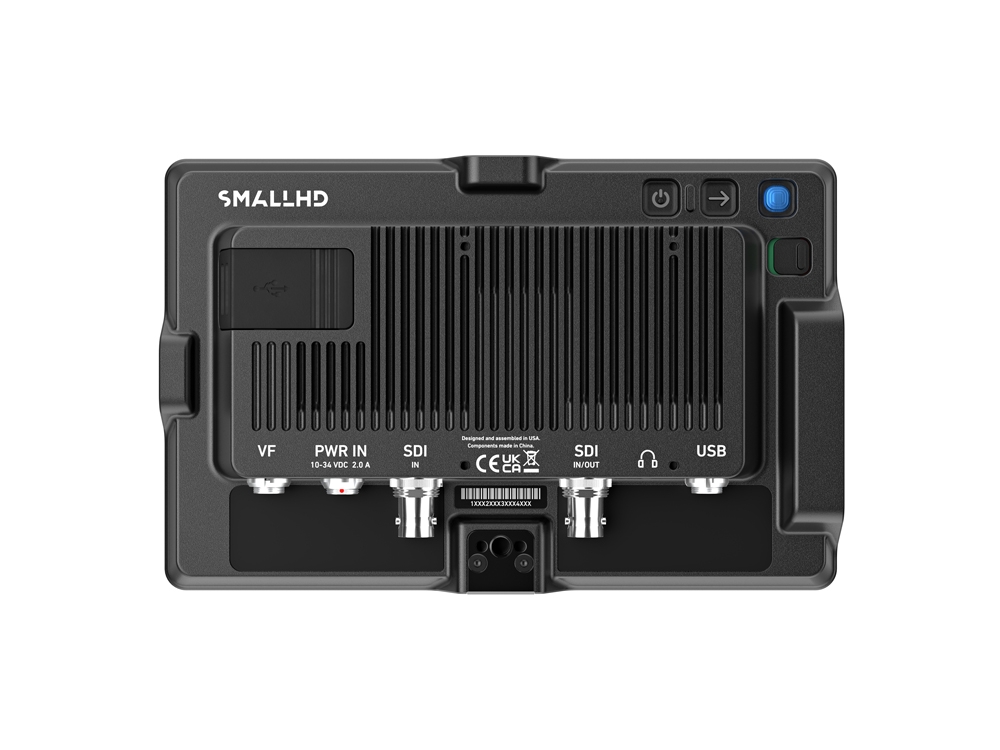

Connectors	VF (CoaXPress) PWR (3-Pin Fischer) SDI 3G IN (BNC) SDI 3G IN/OUT (BNC) Audio out (3.5mm audio jack) USB (5-Pin Lemo) USB-C
SDI Input Types	3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
SDI Output Types	3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
Power Input	PWR and VF connector
Power Input Range	10-34 V
Display Type	Thin Film Transistor Liquid Crystal Display (TFT LCD) with LED backlight
Resolution	1920 x 1200
Pixel Density	322 ppi
Active Screen Size	151.20 x 94.50 mm / 5.94 x 3.70"
Aspect Ratio	16:10
Response Time	25 ms
Screen Luminance	1300 nits
Colors (Typical)	DCI-P3 / Rec. 709
Viewing Angle	160° all axes
Display Orientation	Landscape, 180° rotation
Dimensions	187 x 120 x 29 mm / 7.36 x 4.72 x 1.14"
Weight	594g / 20.95oz
Material	Anodized aluminum chassis with exchangeable steel bottom interface block

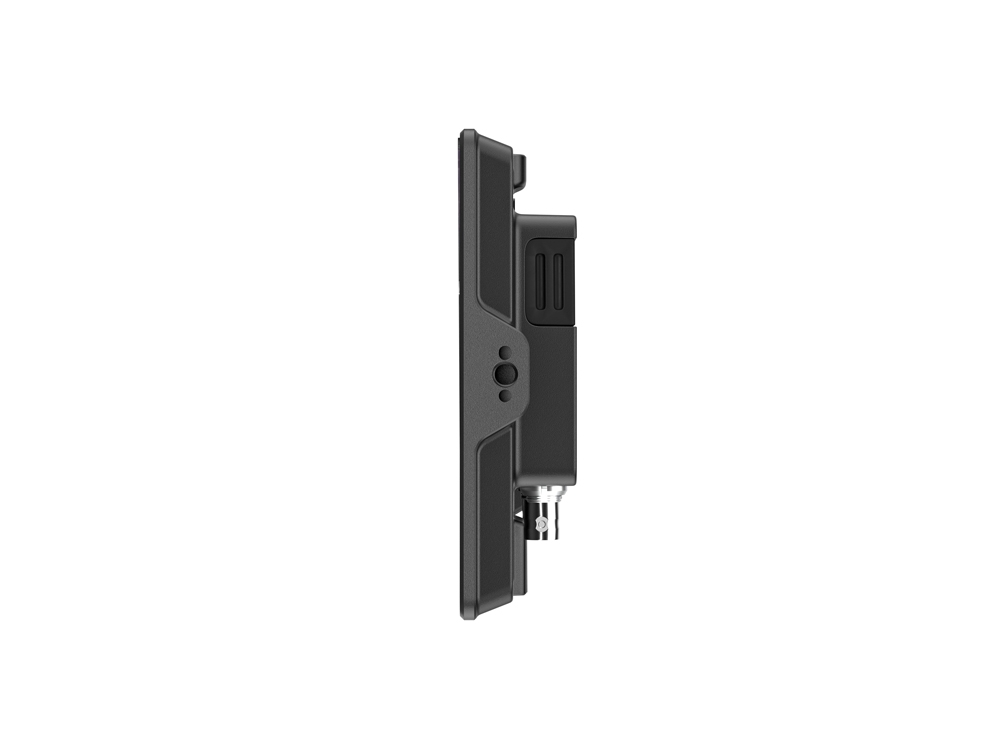

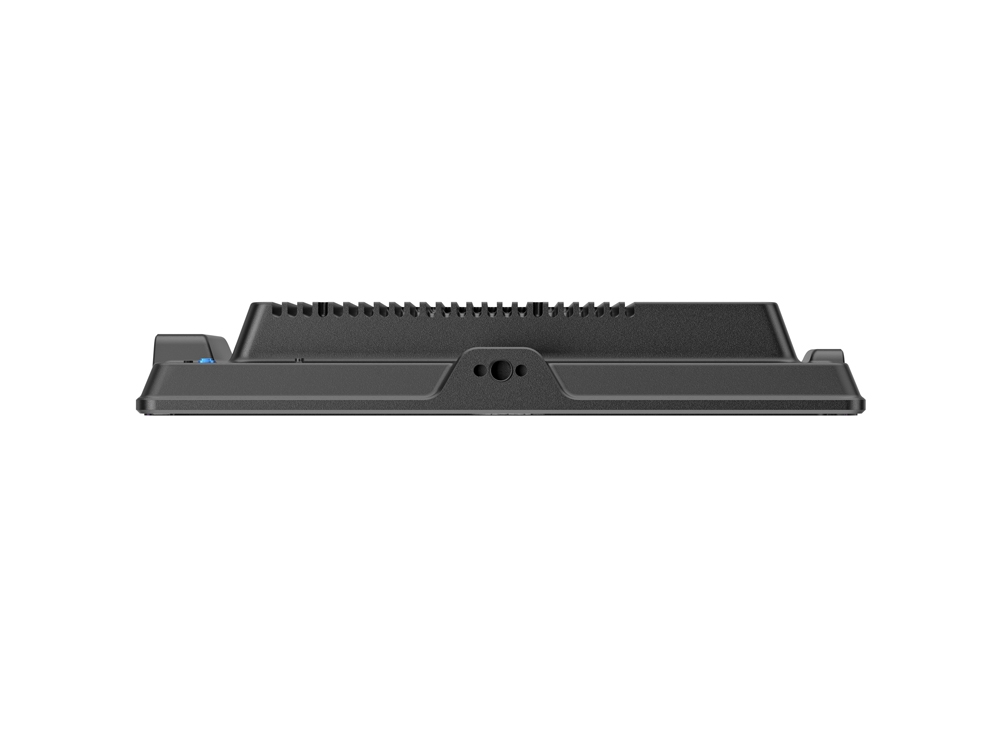

Mechanical Interfaces	4x ARRI Pin-Lock 1/4" (1x bottom, 1x rear, 1x right side, 1x top)
Operation Temperature	0°C to 45°C / 32° F to 113° F
Storage Temperature	–18°C to 49°C / 0° F to 120° F
Operating Humidity	0% to 95%, non-condensing
Storage Humidity	0% to 95%, non-condensing
