JibO Kit for 100mm Bowl

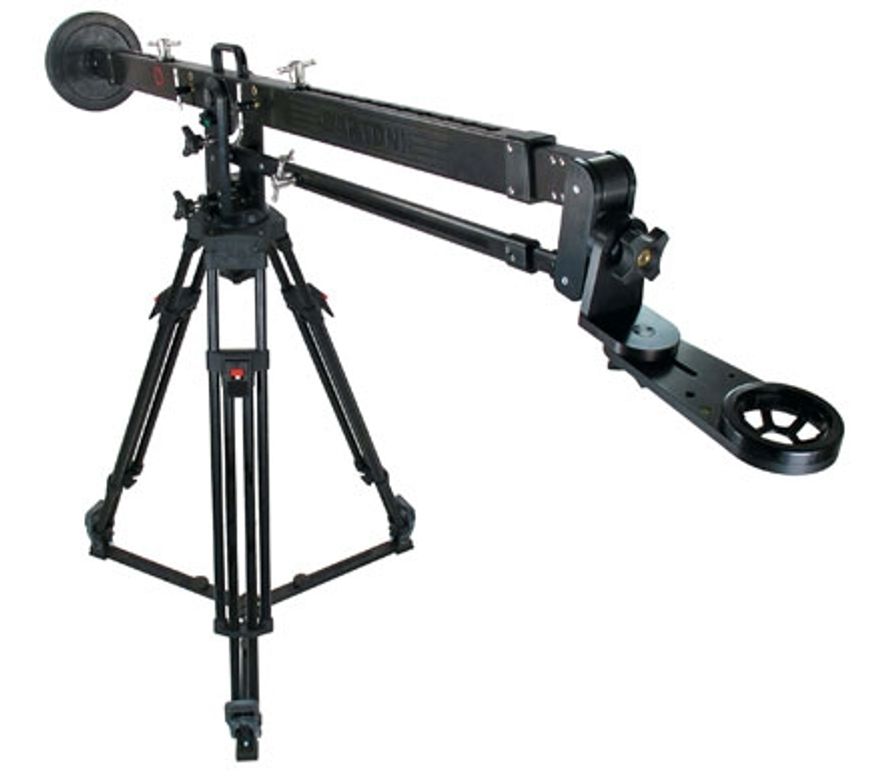

The new portable 3 section CARTONI JIBO is designed to be one of the most versatile and cost effective lightweight Jibs, carrying up to 20 kg (44 lbs) and fits into a practical lightweight sturdy waterproof portable HPRC case on wheels.

The JIBO‘s innovative unique feature of the 3 easy mounting sections provides fast and easy operational flexibility and can be assembled or disassembled in less than 3 minutes.

JIBO adds the benefit of diagonal tracking and elevation to the traditional pan and tilt movement of a standard Fluid Head.
This new lightweight Jib weighs only 15 Kg (33 lbs) and folds down to 1.20 meter (47”) in length and allows shooting from absolute ground level to 2 meters (78”) in height, with a maximum extension of 172cm (67”).

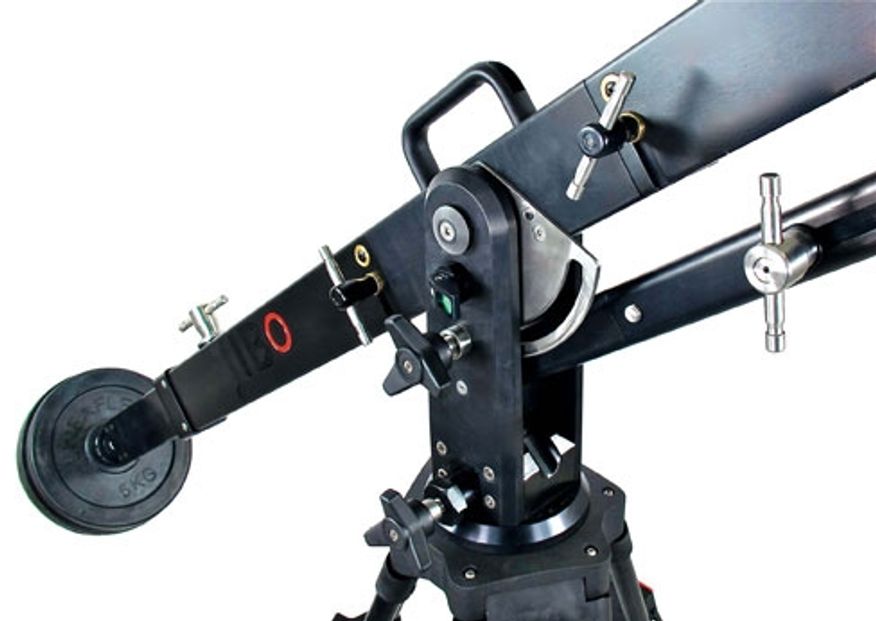

The rear part of the arm, which holds the counterweights, is extendible to provide for accurate camera balance; the typical counterweight kit is 20 kg (44 lbs) of rubberized gym weights.
The front telescopic arm permits the CARTONI JIBO to work in a wide variety of shooting positions or requirements. The Fluid Head supporting the camera can be positioned in several different positions as under-slung, side-ways, etc.

The T-bar accessory is available for remote control set up and allows to install controls for camera and zoom.

JIBO interfaces with any 100mm bowl base tripod and for heavier set-ups a Mitchell base adapter is available .
Another unique feature is the horizontal lock for safer set-up operation.

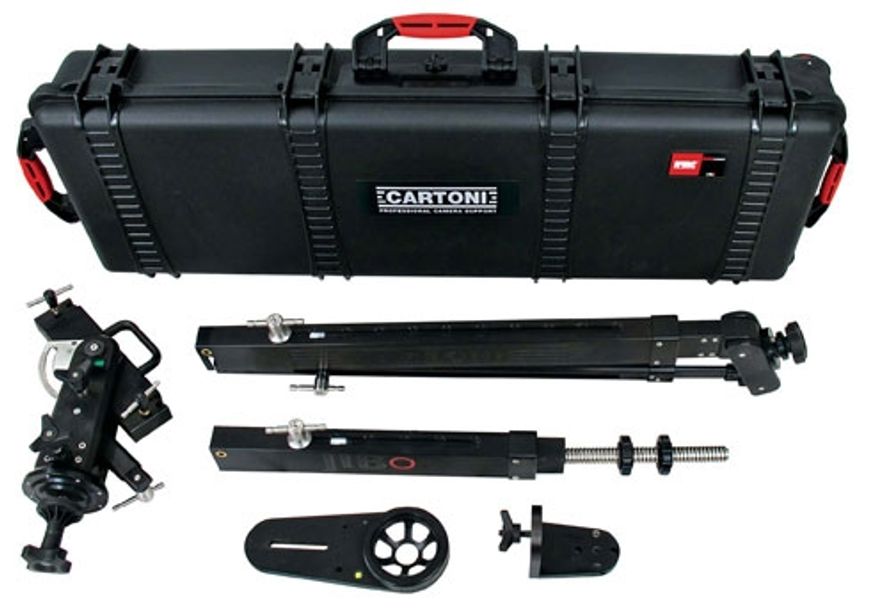

The JIBO’s standard configuration includes a lightweight sturdy waterproof portable HPRC case on wheels, a 100mm bowl base head attachment with multiple orientation, left to right and on/under and 2 spirit levels.

Tripod not included.

Payload 20 Kg
Commercial code: P 102
