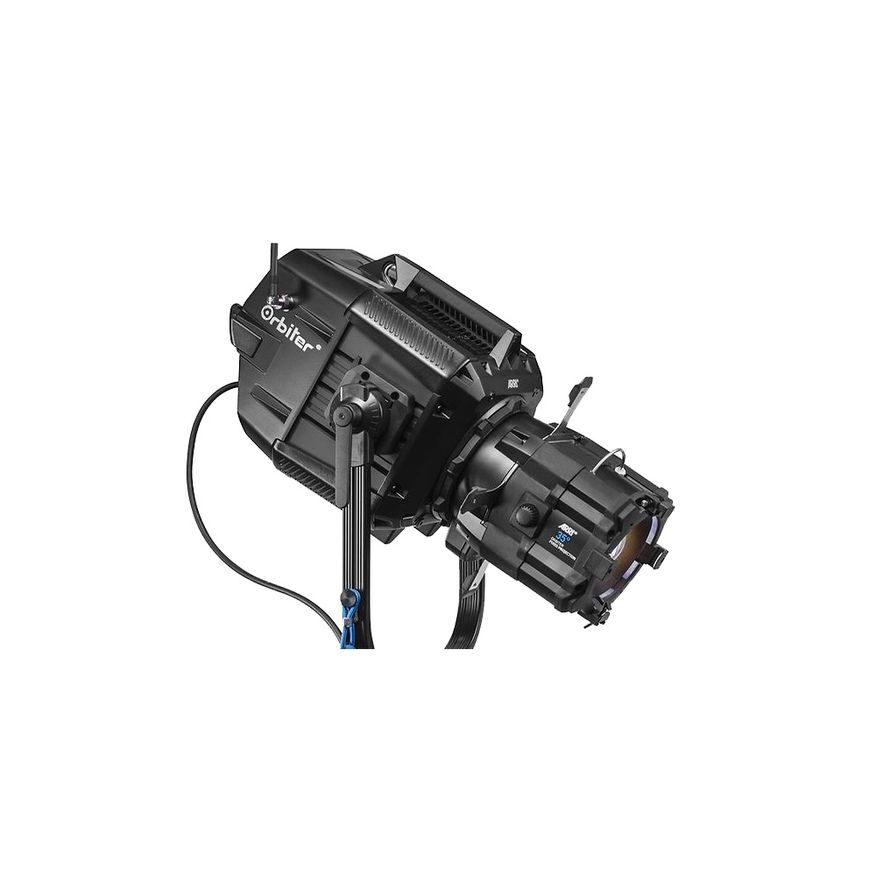

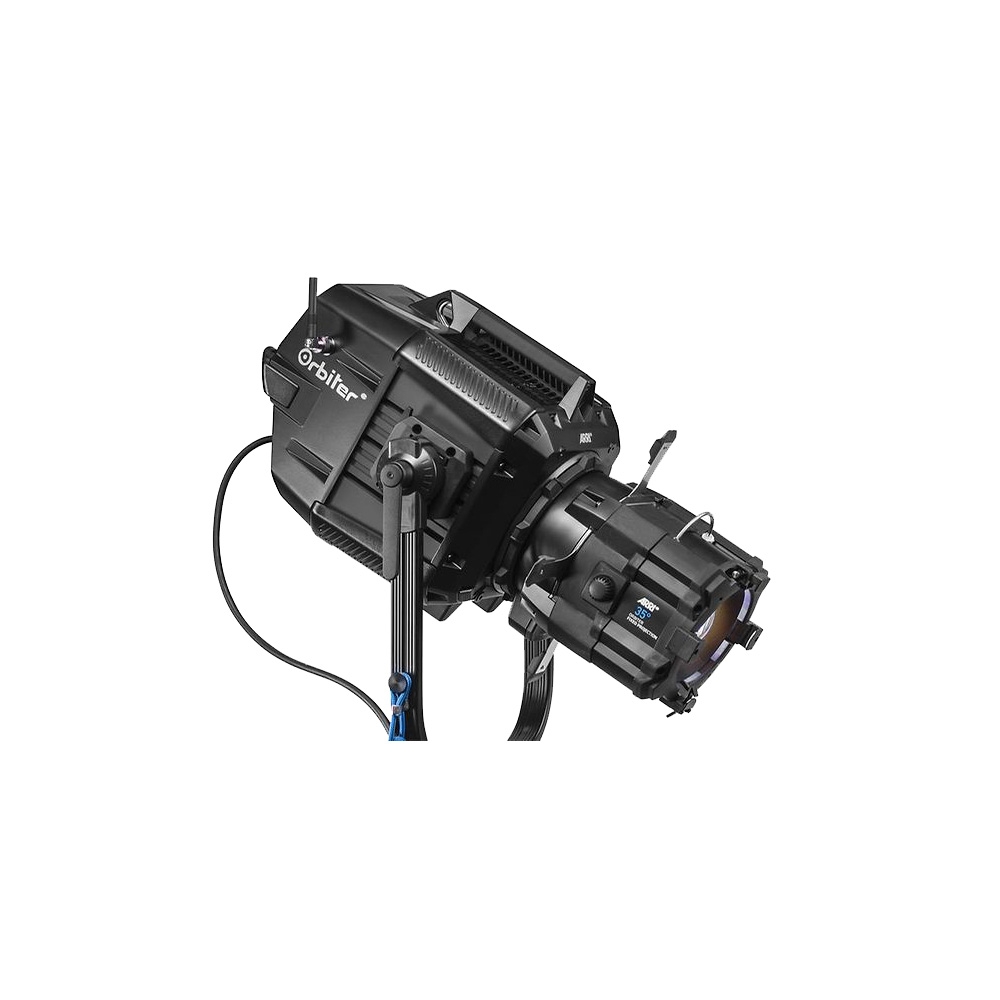

Orbiter Projection Optic 35¡

Price

Even. Precise. Brilliant.
Read more

Manufacturer

Orbiter Projection Optics

Even. Precise. Brilliant.

The Orbiter Projection Optics 25° and 35° provide unparalleled precision in every detail allowing for crisp projection of a light spot, as well as immaculate gobo projection and precise shutter cuts. The field of light is entirely even and without color aberration. The projection has no visible hot spot or drop to the edge and the depth of field is outstanding.

Orbiter Projection Optic 25° - L2.0033549
Orbiter Projection Optic 35° - L2.0033550

Features:

Four manually adjustable shutter blades produce a beam where the shutter blade cut projection and the beam’s edge are simultaneously in sharp focus
Motorized focus adjustment
Focus control locally or remotely
Standard B-size metal or glass gobo can be added
Effortless mounting thanks to Orbiter’s QLM system
Can be attached to any Orbiter color version

Any focus adjustment between gobo and shutter is barely necessary; focus adjustment between gobo and open gate is not necessary at all. Additional ARRI accessories like a snoot or color filter frames can be added in front enabling fine tuning when needed. The Orbiter Projection Optics are a great addition to the already existing Orbiter Fresnel Lens 15-65°.

Optical Performance

Orbiter Projection Optics are truly second to none, outperforming all competitor projection optics and dedicated profile fixtures. And while the Orbiter Docking Ring allows third-party optics that customers may already own to be used on the Orbiter, such combinations can only ever be as good as those third-party optics. Compared to the quality of ARRI’s own optics, this will inevitably mean a compromise in quality. If you want outstanding optical performance in every aspect, with no brown/blue shadow or edge at any focus, almost no chromatic aberration, and simultaneous sharpness of any shutter blades at any angle, then the Orbiter Projection Optics should be your first choice.

Application possibilities

Combined with Orbiter’s ARRI Spectra light engine, the high-end optical system provides a state-of-the-art LED profiler which is perfectly suited for theaters, cinematic applications, as well as broadcast studios or live productions.

Both Projection Optics are compact in size:
Orbiter Projection Optic 25° with 287 mm x 287 mm x 331 mm (11.3 in x 11.3 in x 13.1 in)
Orbiter Projection Optic 35° with 287 mm x 287 mm x 284 mm (11.3 in x 11.3 in x 11.2 in).
The weight of the Projection 25° is at 5,45 kg (12 lbs) and of the Projection 35° at 4,35 kg (9,6 lbs).

Accessories

Gobo Holder for Orbiter Projection Optic, B-Size
