SkyPanel X - Reach beyond the Sky

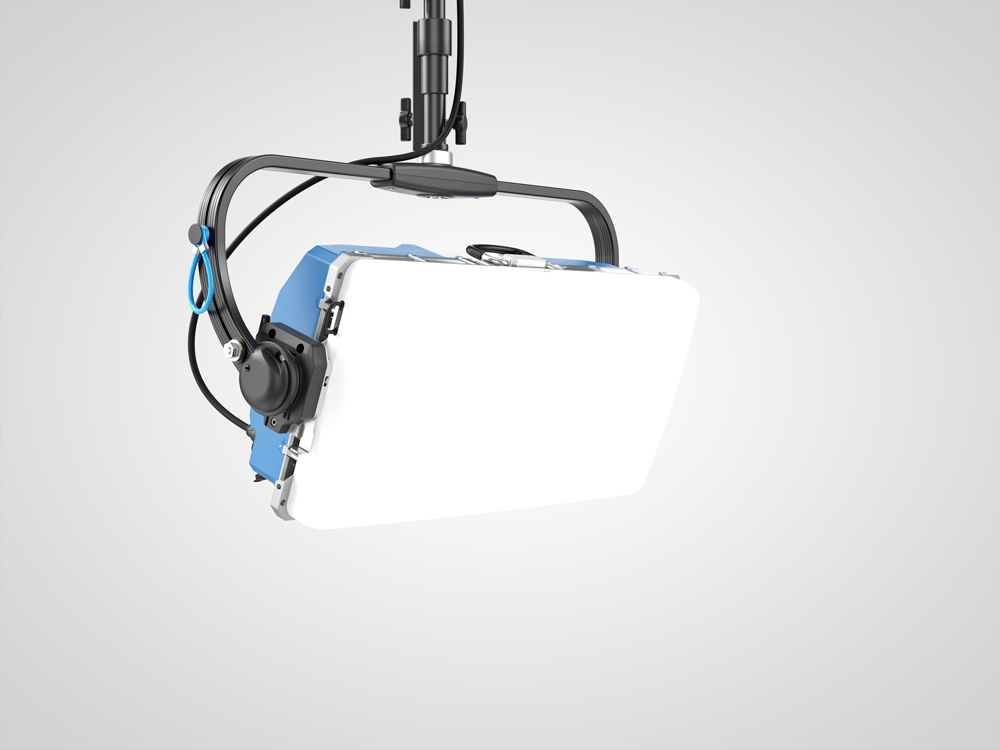

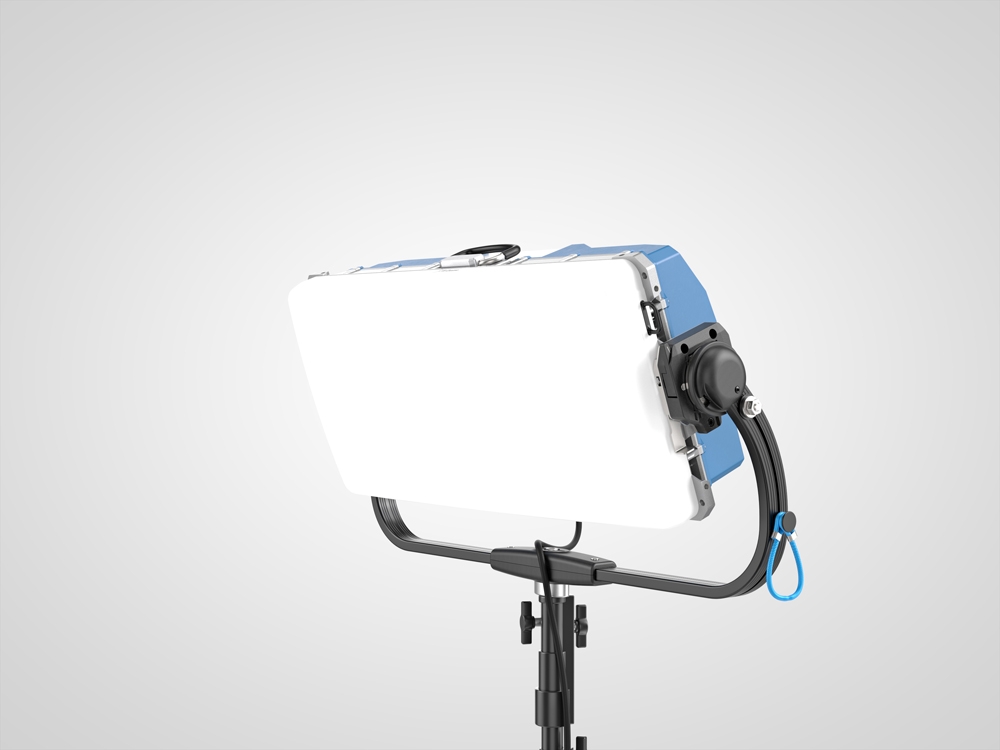

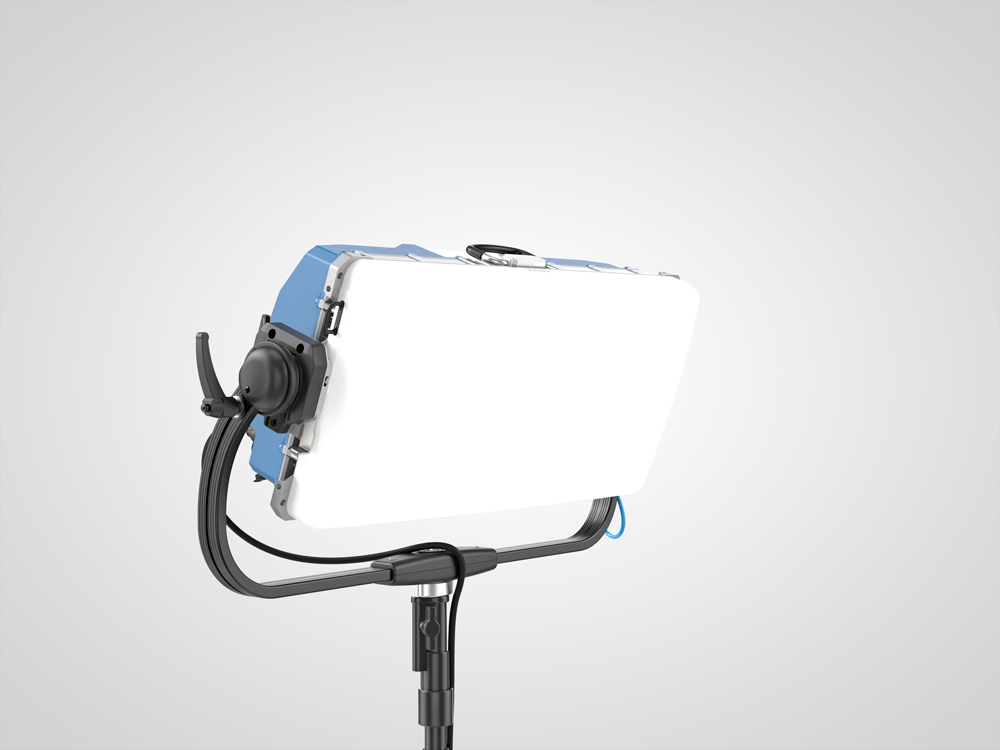

Introduced as a modular system and configurable into different sizes (X21, X22, X23), SkyPanel X offers native soft and hard light technology, setting a new bar not only in terms of dimming and color science, but also in lux output and beam quality for medium to long throws.
With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K - 20,000 K; RGBACL full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to existing workflows.
The all-weather SkyPanel X
The SkyPanel X is your all-weather lighting solution. Engineered and IP66 certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.

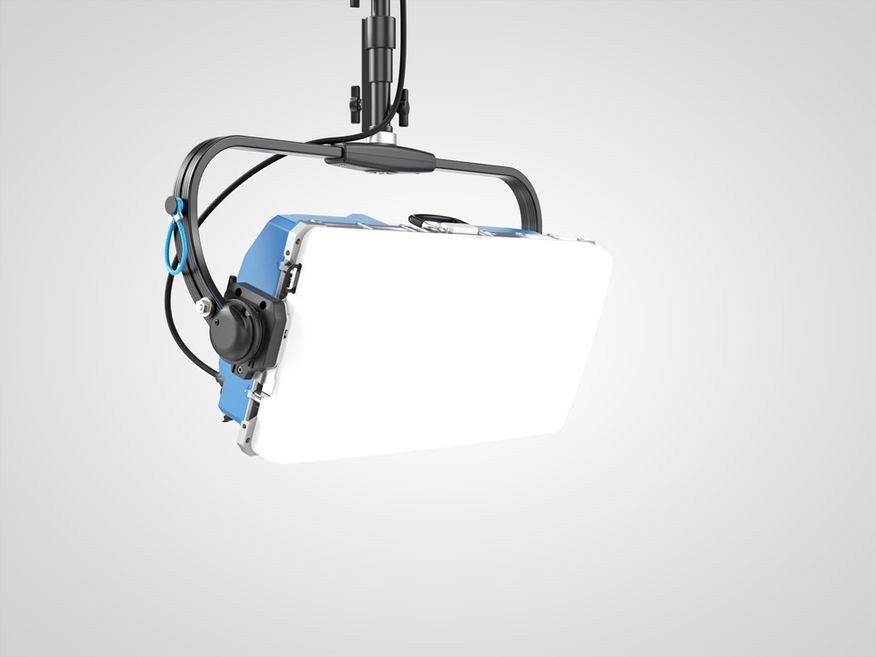

Choose your soft light LED panel solution with SkyPanel X
Continue your established SkyPanel practices via the S60 Adapter, or streamline with the simplified X21 Dome workflow.
- Maximize brightness with enhanced output, meeting all shadow quality and beam spread requirements
- Ensure unparalleled color precision within a 1,500 K - 20,000 K CCT range
- Benefit from flicker-free high resolution for superior low-end dimming, plus the benefits of High Output Mode
- Configure SkyPanel X as a 2:1, 2:2, or 2:3 panel ratio for wide-aperture soft lighting
- Take advantage of 8 individually-controllable pixel zones per single unit for diverse texturized effects
- Use existing SkyPanel S60-C accessories on SkyPanel X with the optional S60 Adapter
SkyPanel X - hard light experience
HARD LIGHT FOR MAXIMUM LUX
With HyPer Optics, the SkyPanel X becomes a high-output ARRI hard light panel, casting a refined rounded beam.
- It delivers 4,800 lux at 10 m in the X21 format, being fully weatherproof.
- The HyPer Optic goes beyond S60 beam options, creating a superior hard light experience.
- Configurable as a 2:1 (X21), 2:2 (X22), or 2:3 (X23) hard light source, offering one single, rounded beam for each format.
- Features 8 controllable and sealed pixel zones for precise hard light control.
- Wide 1,500 K - 20,000 K CCT range, with high-res, flicker-free dimming.
- High-contrast looks when used as a direct source, great bouncing possibilities.
- CRMX2, BLE, Bluetooth 5.0, and modular design enhance this hard light panel's usability.
- Compatible with DoPchoice SNAPBOX® SNOOT and SNAPGRID® for extra beam accuracy.
SkyPanel X - modular experience
Choose the output, pick the size: meet the modular system of SkyPanel X.
SkyPanel X modular system
ARRI's SkyPanel X brings advanced LED technology to the fore, embodying a flexible core concept. This modular light panel adapts to various size requirements, broadening possibilities and addressing the extensive needs of a modern set. It offers three configurations: X21 (a 2:1 unit), X22 (an expanded 2:2 surface), and X23 (a large 2:3 panel), capable of generating either wide soft light or intense hard light, regulated via HyPer Optics or X21 Domes.
Modular options
Wired control options
Harness the power of wired data for lighting control: benefit from technologies such as DMX-512A, RDM, sACN, Art-Net, LAN, and web control, ensuring maximum reliability and advanced setup management. Optimized for heavy traffic and complex processing, SkyPanel X integrates seamlessly with ARRI's ALSM.
